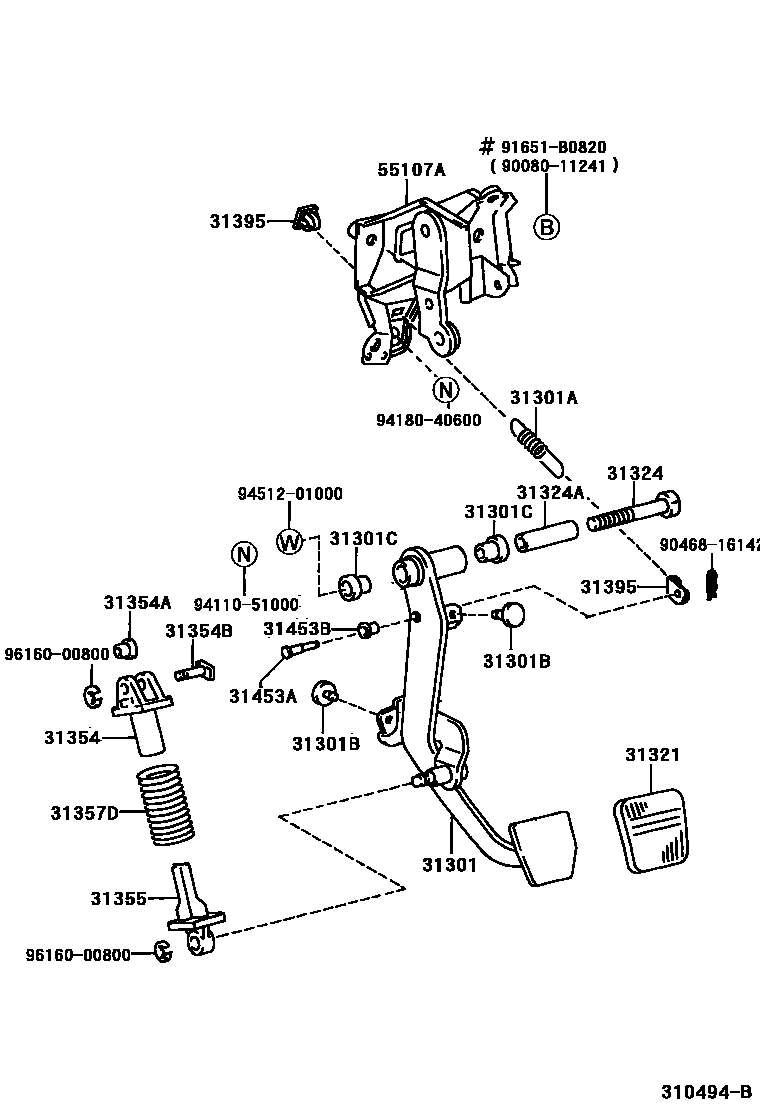

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1W(ABS) 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-33010iACV20..MTM199806-200212

31301ASPRING(FOR CLUTCH PEDAL)

main90507-18027iMCV20..MTM199806-200207

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iACV20,MCV20,SXV20..MTM199806-200212

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iACV20,MCV20,SXV20..MTM199806-200212

31321PAD, CLUTCH PEDAL

main31321-14020iACV20,MCV20,SXV20..MTM199806-200212

31324SHAFT, CLUTCH PEDAL

main90101-10273iACV20,MCV20,SXV20..MTM199806-200212

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iACV20,MCV20,SXV20..MTM199806-200212

31354SEAT, CLUTCH PEDAL SPRING, UPPER

main31354-33010iACV20..MTM199806-200212

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-10019iACV20,MCV20,SXV20..MTM199806-200212

31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90249-10127iACV20,MCV20,SXV20..MTM199806-200212

31355SEAT, CLUTCH PEDAL SPRING, LOWER

main31355-20030iACV20,MCV20,SXV20..MTM199806-200212

31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)

main90501-35018iACV20,SXV20..MTM199806-200212

main90501-40029iMCV20..MTM199806-200207

31395HOOK, PEDAL SPRING

main31395-33010iMCV20..MTM199806-200207

PEDAL SIDE

main31395-33020iMCV20..MTM199806-200207

SUPPORT SIDE

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iACV20,MCV20,SXV20..MTM199806-200212

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iACV20,MCV20,SXV20..MTM199806-200212

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-33010iACV20,MCV20,SXV20..MTM199806-200212

9008011241

main90080-11241

9046816142

main90468-16142

91651B0820

main91651-B0820

9411051000

main94110-51000

9418040600

main94180-40600

9451201000

main94512-01000

9616000800

main96160-00800

23 parts on this diagram · 6 diagrams in section
