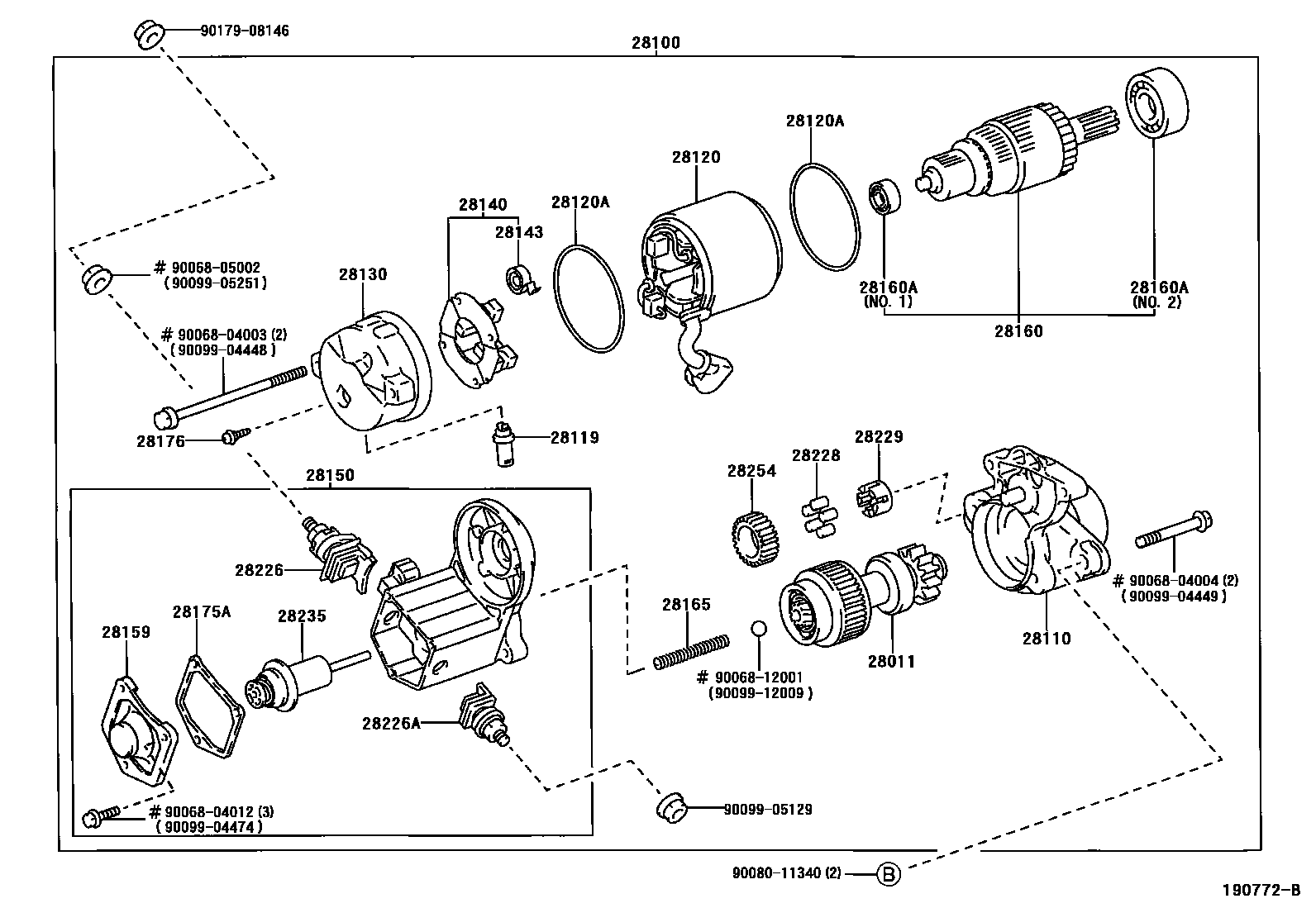

STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
12V 1.4KW
28110HOUSING ASSY, STARTER DRIVE
28119COVER, STARTER END FRAME
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
28140HOLDER ASSY, STARTER BRUSH
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28159COVER, STARTER PROTECTOR
28160ARMATURE ASSY, STARTER
28160ABEARING, STARTER ARMATURE
NO.1
NO.2
28165SPRING, STARTER MAGNET SWITCH RETURN
28175AGASKET, MAGNET SWITCH COVER
28176SCREW, STARTER
28226ASTARTER KIT, MOTOR TERMINAL
28228ROLLER, STARTER IDLE GEAR CLUTCH
28229RETAINER, STARTER IDLE GEAR
28235PLUNGER, MAGNET SWITCH
28254PINION, STARTER IDLE GEAR
9006804003
main90068-04003
9006804004
main90068-04004
9006804012
main90068-04012
9006805002
main90068-05002
9006812001
main90068-12001
9008011340
main90080-11340
9009904448
main90099-04448
9009904449
main90099-04449
9009904474
main90099-04474
9009905129
main90099-05129
9009905251
main90099-05251
9009912009
main90099-12009
9017908146
main90179-08146
35 parts on this diagram · 2 diagrams in section
