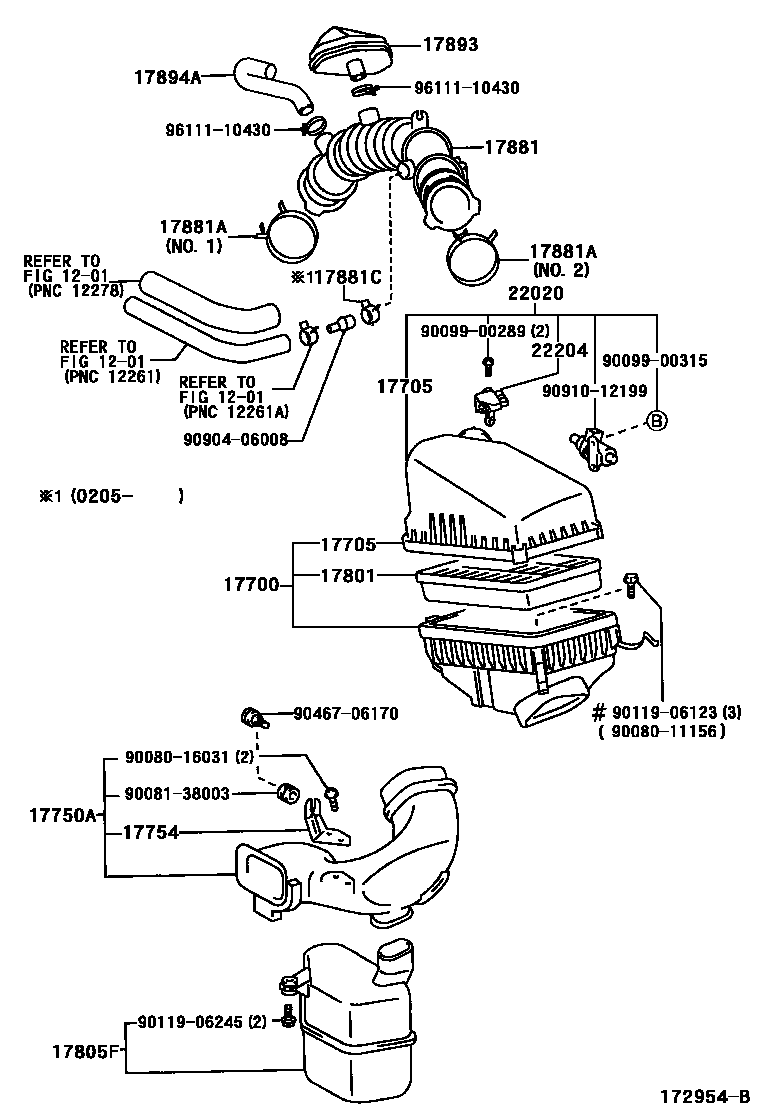

AIR CLEANER
1201
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17750AINLET ASSY, AIR CLEANER
17754STAY, AIR CLEANER INLET
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805FRESONATOR SUB-ASSY, INTAKE AIR
NO.2
NO.1
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.1
NO.2
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
17893RESONATOR, INTAKE AIR
NO.1
NO.2
17894ARESONATOR, INTAKE AIR, NO.2
22020METER ASSY, AIR FLOW W/AIR CLEANER
9008011156
main90080-11156
9008016031
main90080-16031
9008138003
main90081-38003
9009900289
main90099-00289
9009900315
main90099-00315
9011906123
main90119-06123
9011906245
main90119-06245
9046706170
main90467-06170
9090406008
main90904-06008
9091012199
main90910-12199
9611110430
main96111-10430
25 parts on this diagram · 4 diagrams in section
