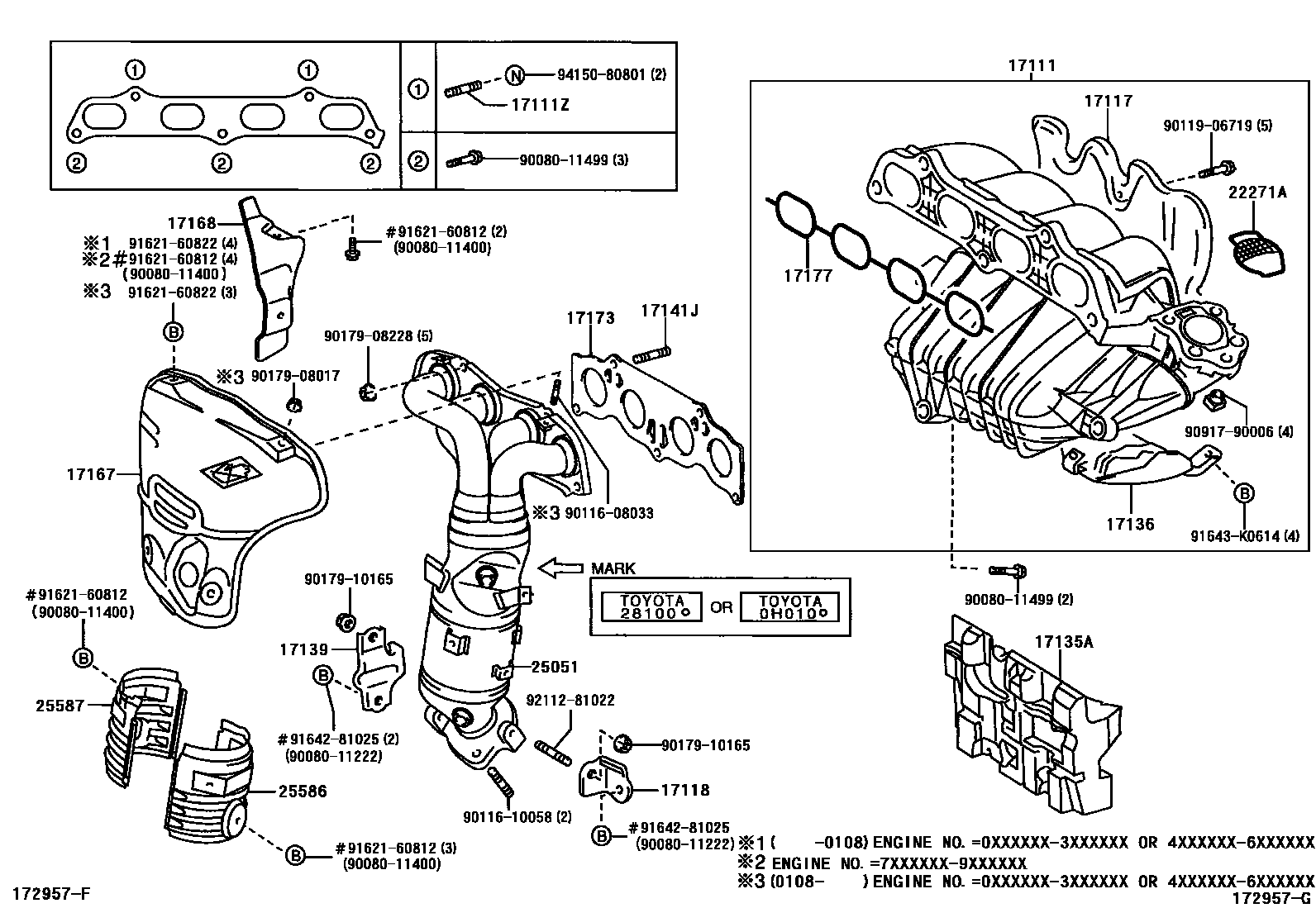

MANIFOLD
17111MANIFOLD, INTAKE
(J)
TYPE B:REFER TO ILLUSTRATION
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17117INSULATOR, INTAKE PIPE
17118STAY, MANIFOLD
NO.2,(L)
CALIFORNIA SPEC
NO.1
NO.2,(J)
17135AINSULATOR, INTAKE MANIFOLD, NO.1
sub17135-0H011
17136INSULATOR, INTAKE MANIFOLD, NO.2
17139STAY, MANIFOLD, NO.2
CALIFORNIA SPEC
MARK OF CONVERTER = 0HXXX
MARK OF CONVERTER = 28XXX
17141MANIFOLD, EXHAUST
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(J)
CALIFORNIA SPEC
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L)
(J)
CALIFORNIA SPEC
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
CALIFORNIA SPEC
(J)
22271AGASKET, THROTTLE BODY
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
MARK OF CONVERTER = 0HXXX
MARK OF CONVERTER = 28XXX
25586INSULATOR, MANIFOLD CONVERTER, NO.1
(L)
25587INSULATOR, MANIFOLD CONVERTER, NO.2
(L)
9008011222
main90080-11222
9008011400
main90080-11400
9008011499
main90080-11499
9011608033
main90116-08033
9011610058
main90116-10058
9011906719
main90119-06719
9017908017
main90179-08017
9017908228
main90179-08228
9017910165
main90179-10165
9091790006
main90917-90006
9162160812
main91621-60812
9162160822
main91621-60822
9164281025
main91642-81025
91643K0614
main91643-K0614
9211281022
main92112-81022
9415080801
main94150-80801
33 parts on this diagram · 7 diagrams in section
