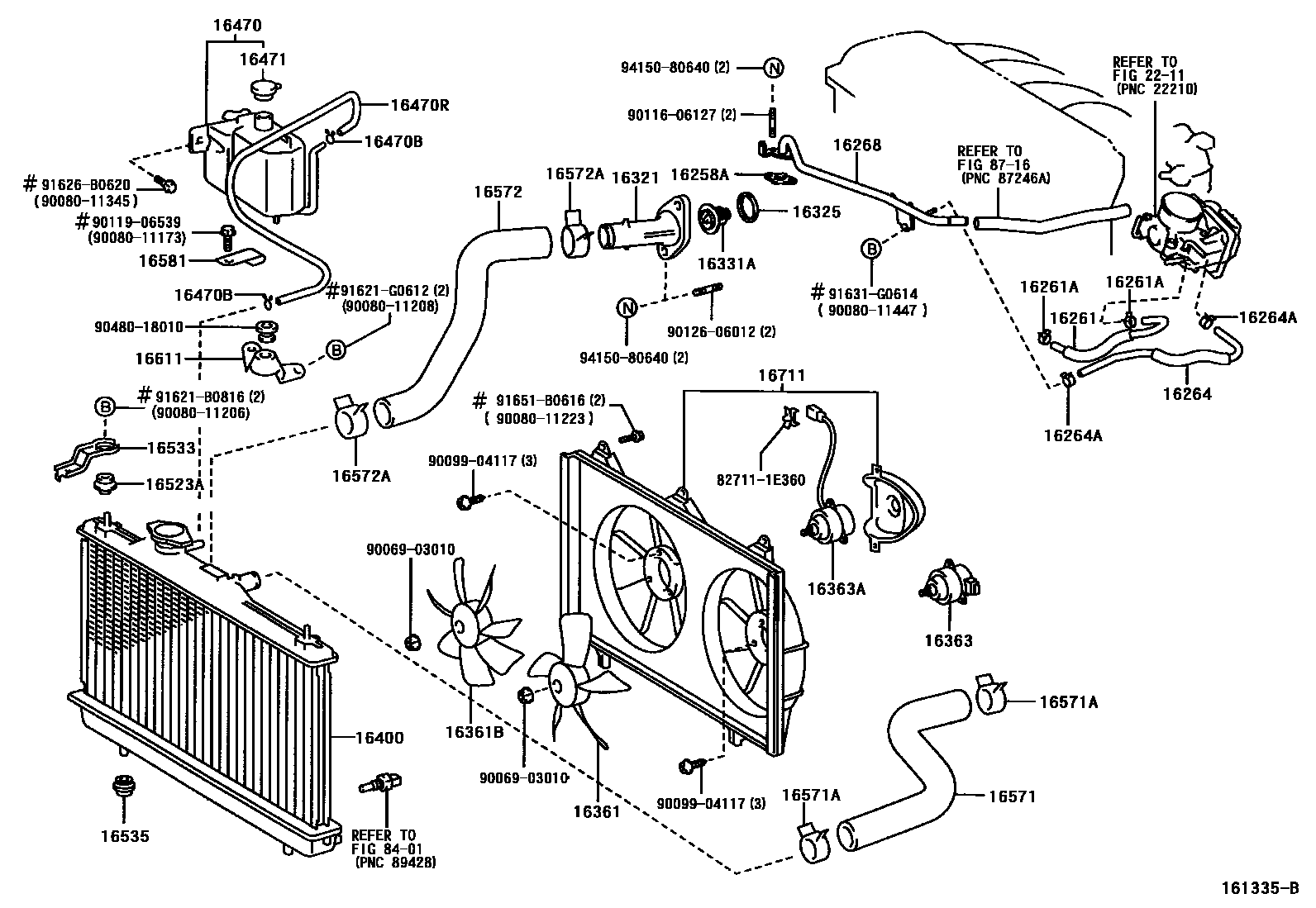

RADIATOR & WATER OUTLET
16258AGASKET(FOR HEATER RETURN)
(L)
16261HOSE, WATER BY-PASS
(L)
(J)
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
16268PIPE, WATER BY-PASS, NO.1
(L)
ENGINE NO.=7XXXXXX-9XXXXXX
ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
(J)
W(OIL COOLER)
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
ENGINE NO.=0XXXXXX-4XXXXXX
16331ATHERMOSTAT
*WAX 82-95
16400RADIATOR ASSY
sub16400-03141
sub16400-03142
sub16400-03152
sub16400-03151
sub16400-03152
sub16400-0A051
sub16400-0A052
sub16400-0A062
sub16400-0A061
sub16400-0A062
sub16400-0A200
sub16400-0A270
sub16400-0H050
16470TANK ASSY, RADIATOR RESERVE
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
16581CLAMP, HOSE(FOR WATER HOSE)
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
2211
8401
8716
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9006903010
main90069-03010
9008011173
main90080-11173
9008011206
main90080-11206
9008011208
main90080-11208
9008011223
main90080-11223
9008011345
main90080-11345
9008011447
main90080-11447
9009904117
main90099-04117
9011606127
main90116-06127
9011906539
main90119-06539
9012606012
main90126-06012
9048018010
main90480-18010
91621B0816
main91621-B0816
91621G0612
main91621-G0612
91626B0620
main91626-B0620
91631G0614
main91631-G0614
91651B0616
main91651-B0616
9415080640
main94150-80640
51 parts on this diagram · 7 diagrams in section
