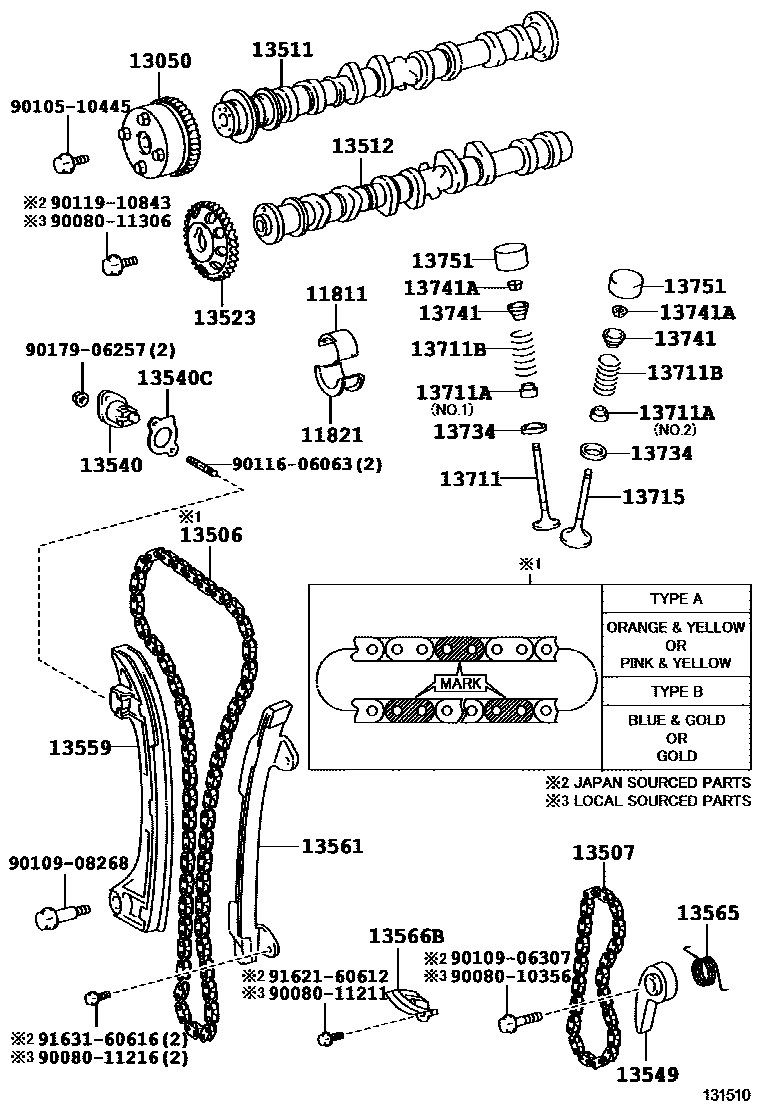

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
MARK 1,MARK 1
MARK 2,MARK 2
MARK 3,MARK 3
11821BEARING, CAMSHAFT, NO.2
MARK 1,MARK 1
MARK 2,MARK 2
MARK 3,MARK 3
13050GEAR ASSY, CAMSHAFT TIMING
13506CHAIN SUB-ASSY
(L),T/P A:REF.ILLUST
(J),T/P A:REF.ILLUST
(J),T/P B:REF.ILLUST
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
(L)
(L)
(L)
(L)
(J)
(J)
(J)
13512CAMSHAFT, NO.2
(L)
(L)
(L)
(L)
(J)
(J)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
ENGINE NO.=7XXXXXX-9XXXXXX,(L)
ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX,(J)
ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX,(J)
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13540CGASKET(FOR CHAIN TENSIONER)
(L)
(J)
13549PLATE, CHAIN TENSIONER
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(J)
13565SPRING, CHAIN DAMPER
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
(L)
(L)
(L)
(J)
(J)
(J)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.2,(L)
NO.1,(L)
NO.1,(L)
NO.1,(L)
NO.2,(L)
NO.2
NO.1
NO.1,(J)
NO.2,(J)
NO.1,(J)
NO.2
NO.1,(J)
NO.2,(J)
NO.2,(J)
13711BSPRING, COMPRESSION(FOR INNER)
(L)
(L)
ENGINE NO.=7XXXXXX-9XXXXXX
(J)
(J)
ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
13715VALVE, EXHAUST
(L)
(L)
(L)
(J)
(J)
(J)
(J)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
ENGINE NO.=7XXXXXX-9XXXXXX
ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.06,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.08,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.10,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.12,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.14,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.16,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.18,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.20,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.22,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.24,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.26,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.28,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.30,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.32,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.34,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.36,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.38,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.40,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.42,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.44,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.46,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.48,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.50,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.52,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.54,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.56,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.58,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.60,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.62,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.64,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.66,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.68,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.70,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.72,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.74,ENGINE NO.=7XXXXXX-9XXXXXX
T=5.06,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.08,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.10,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.12,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.14,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.16,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.18,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.20,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.22,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.24,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.26,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.28,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.30,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.32,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.34,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.36,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.38,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.40,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.42,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.44,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.46,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.48,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.50,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.52,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.54,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.56,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.58,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.60,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.62,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.64,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.66,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.68,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.70,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.72,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
T=5.74,ENGINE NO.=0XXXXXX-3XXXXXX OR 4XXXXXX-6XXXXXX
9008010356
main90080-10356
9008011211
main90080-11211
9008011216
main90080-11216
9008011306
main90080-11306
9010510445
main90105-10445
9010906307
main90109-06307
9010908268
main90109-08268
9011606063
main90116-06063
9011910843
main90119-10843
9017906257
main90179-06257
9162160612
main91621-60612
9163160616
main91631-60616
35 parts on this diagram · 3 diagrams in section
