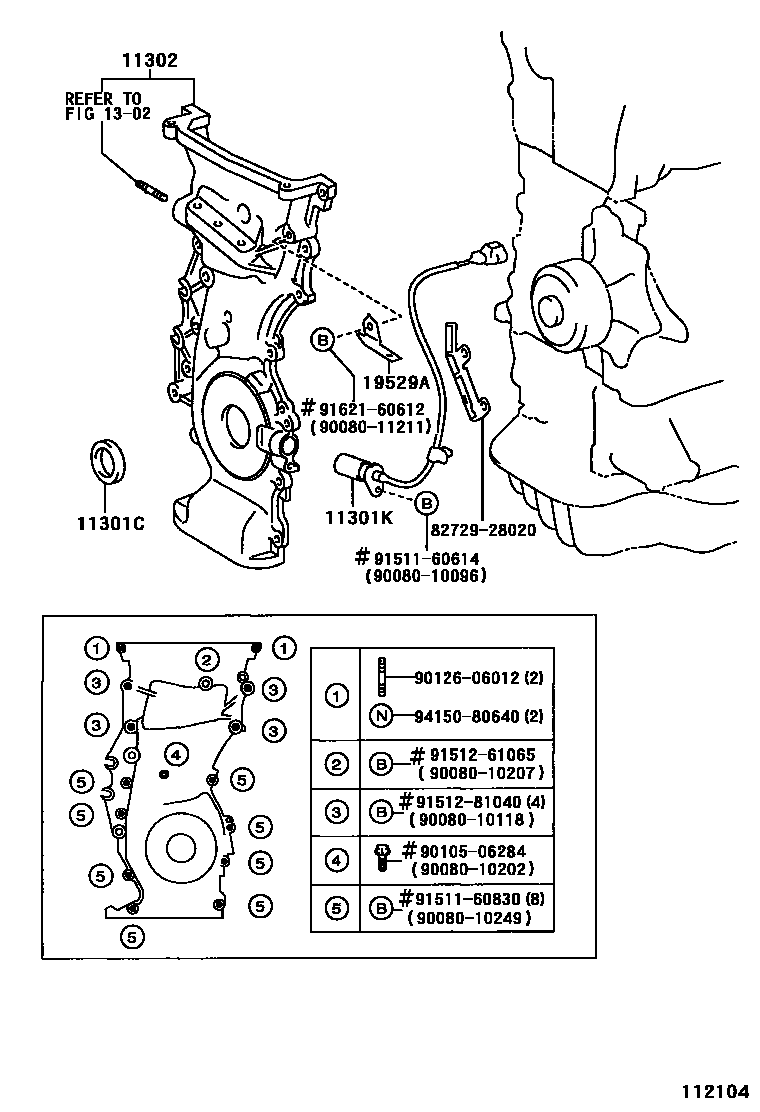

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90080-31072i2AZFE..ACV20200107-200212

(L)

sub90311-A0014

main90311-38078i2AZFE..ACV20200107-200212

(J)

sub90311-38089

11301KSENSOR, CRANK POSITION

main90080-19024i2AZFE..ACV20200107-200212

(L)

main90919-05047i2AZFE..ACV20200107-200212

(J)

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-74040i5SFE..SXV20199806-200107

main11310-0H010i2AZFE..ACV20200107-200212

(L)

main11310-28070i2AZFE..ACV20200107-200212

(J)

1302

19529ACLAMP

main19529-28010i2AZFE..ACV20200107-200212

8272928020

main82729-28020

9008010096

main90080-10096

9008010118

main90080-10118

9008010202

main90080-10202

9008010207

main90080-10207

9008010249

main90080-10249

9008011211

main90080-11211

9010506284

main90105-06284

9012606012

main90126-06012

9151160614

main91511-60614

9151160830

main91511-60830

9151261065

main91512-61065

9151281040

main91512-81040

9162160612

main91621-60612

9415080640

main94150-80640

20 parts on this diagram · 3 diagrams in section
