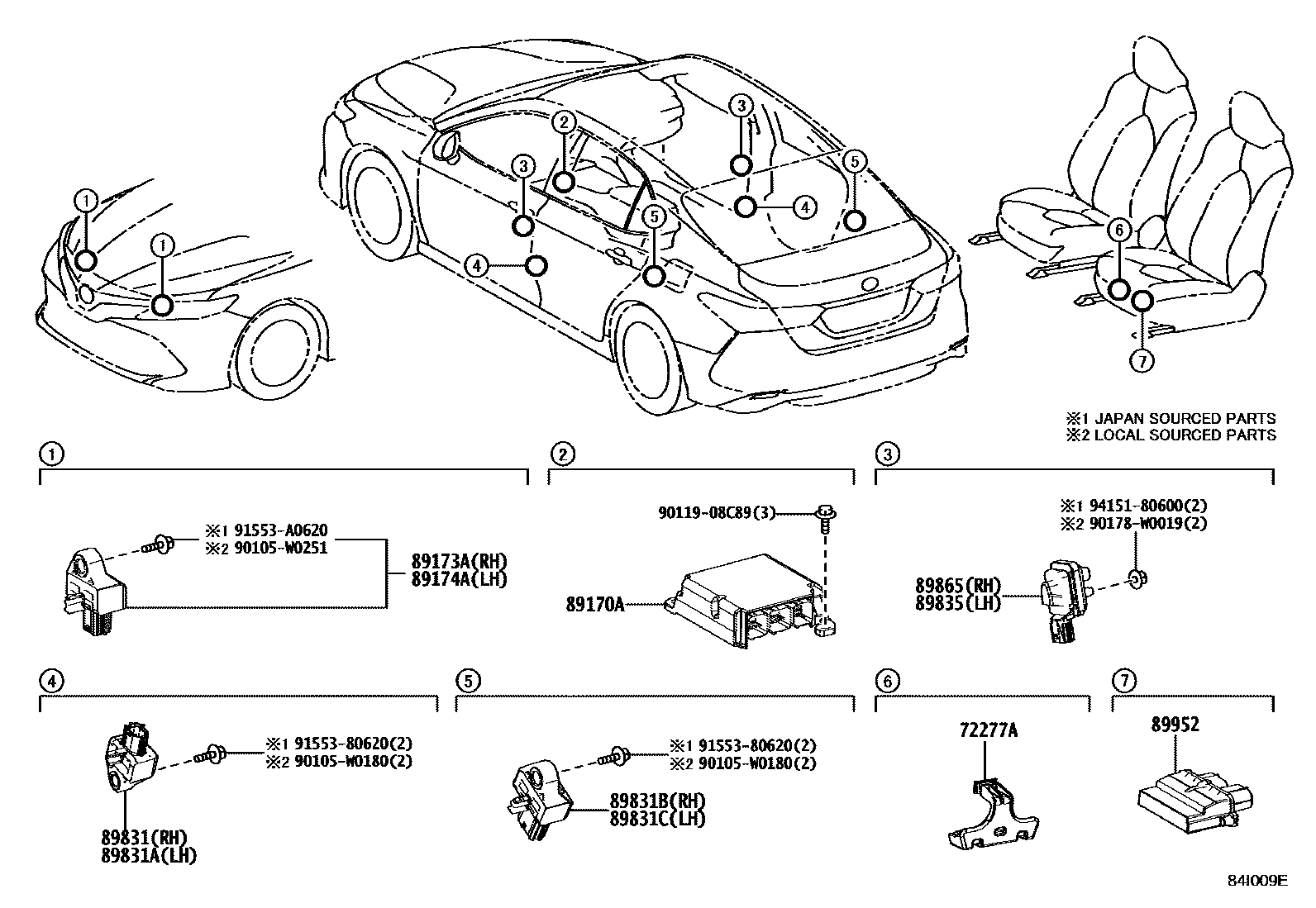

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-47050iAXVA70201703-201811

89170ACOMPUTER ASSY, AIRBAG

main89170-33A80iAXVA70201703-201708

main89170-33A81iAXVA70201709-201811

89173ASENSOR, AIRBAG, FRONT RH

main89173-39525iAXVA70201703-201811

89174ASENSOR, AIRBAG, FRONT LH

main89173-39525iAXVA70201703-201811

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-33090iAXVA70201703-201811

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-33090iAXVA70201703-201811

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-33080iAXVA70201703-201811

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-33080iAXVA70201703-201811

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-33010iAXVA70201703-201811

sub8983A-33011

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-33010iAXVA70201703-201811

sub8983A-33011

89952COMPUTER, OCCUPANT DETECTION

main89952-12030iAXVA70201807-201811

main89952-47010iAXVA70201703-201806

90105W0180

main90105-W0180

90105W0251

main90105-W0251

9011908C89

main90119-08C89

90178W0019

main90178-W0019

9155380620

main91553-80620

91553A0620

main91553-A0620

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section
