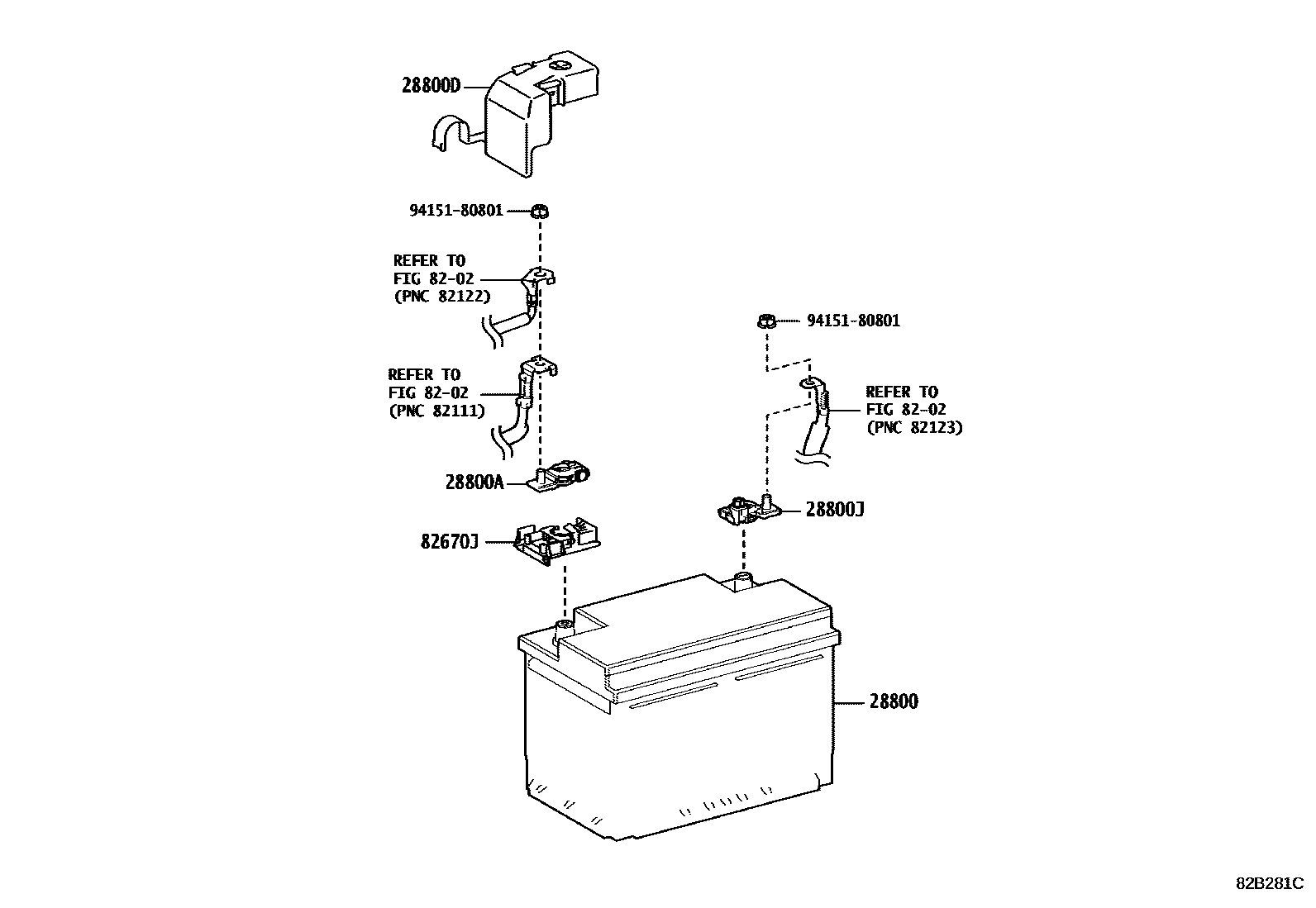

BATTERY & BATTERY CABLE

28800BATTERY

main28800-25010iA25AFKS..AXVA70201808-201811

LN2

sub28800-25011

main28800-25020iA25AFKS..AXVA70201703-201808

LN3

sub28800-25021

28800ATERMINAL, BATTERY POSITIVE

main90982-05072iA25AFKS..AXVA70201703-201811

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33440iA25AFKS..AXVA70201703-201811

28800JTERMINAL, BATTERY NEGATIVE

main90982-06061iA25AFKS..AXVA70201703-201811

8202

82670JBLOCK ASSY, JUNCTION

main82671-33100iAXVA70201703-201811

9415180801

main94151-80801

7 parts on this diagram · 1 diagram in section
