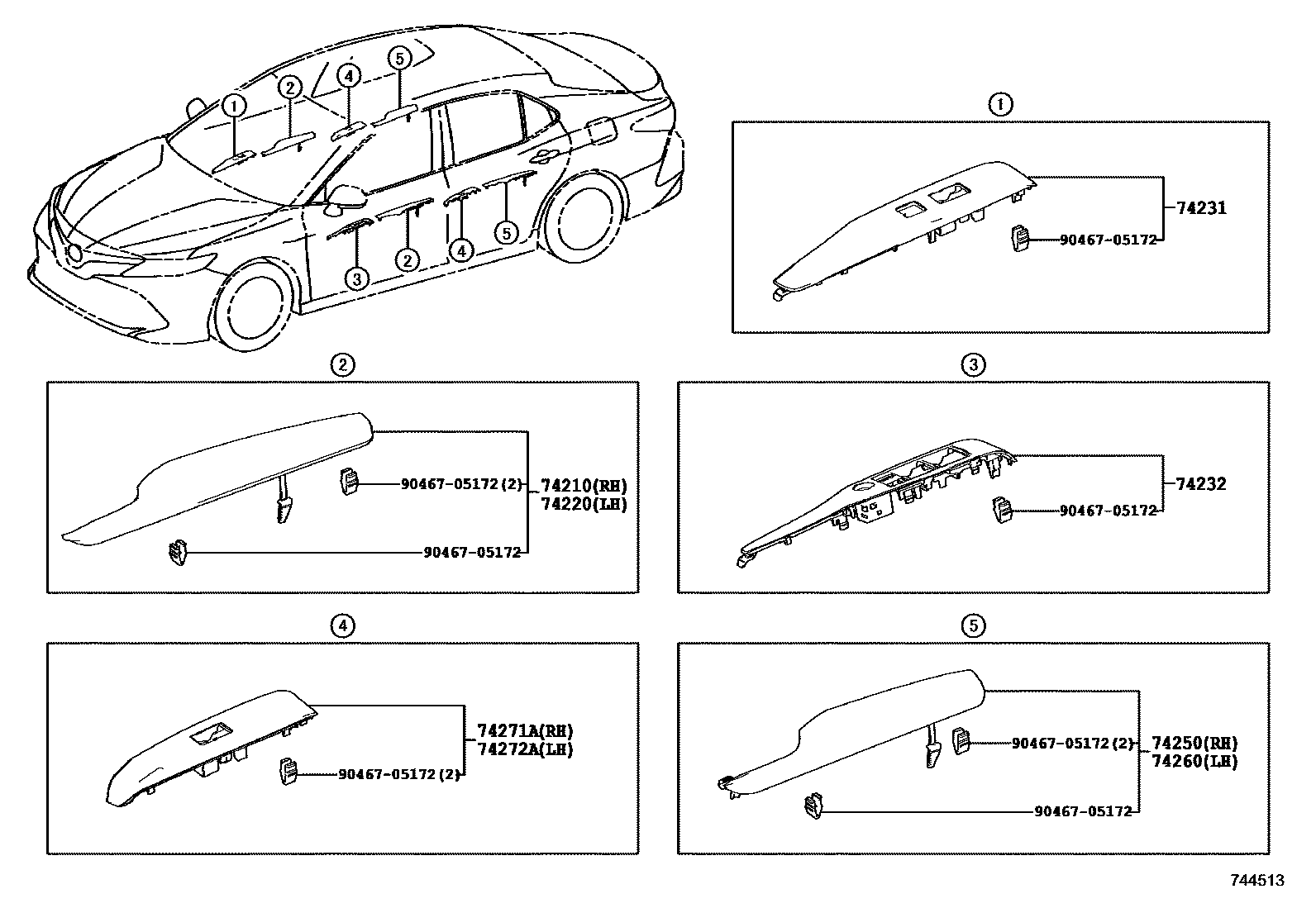

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
FROMAGE,TRIM4#
GRAY,TRIM1#
BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
FROMAGE,TRIM4#
GRAY,TRIM1#
BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
74232PANEL, FRONT ARMREST BASE, UPPER LH
74250ARMREST ASSY, REAR RH
FROMAGE,TRIM4#
GRAY,TRIM1#
BLACK,TRIM2#
74260ARMREST ASSY, REAR LH
FROMAGE,TRIM4#
GRAY,TRIM1#
BLACK,TRIM2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
9046705172
main90467-05172
9 parts on this diagram · 2 diagrams in section
