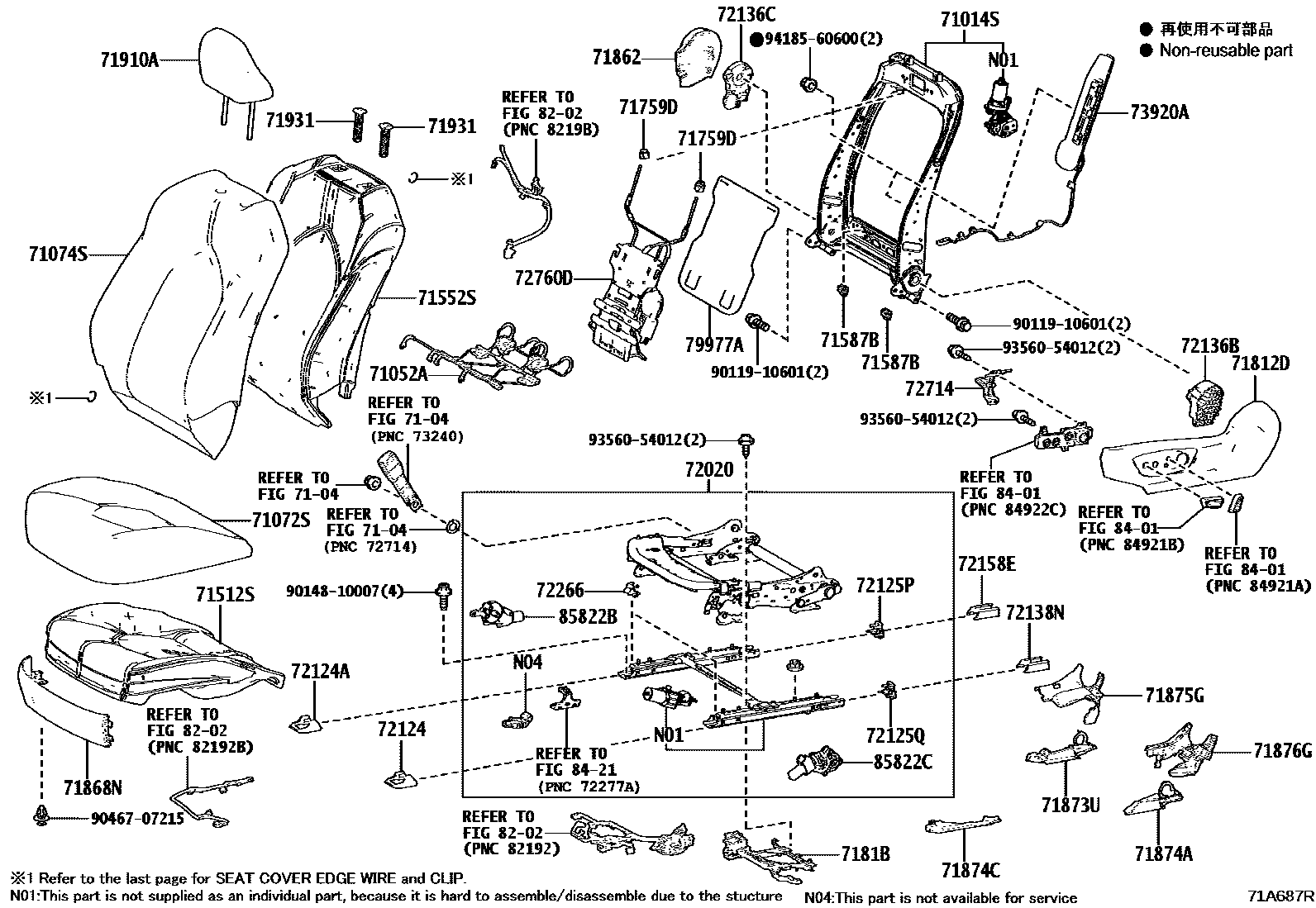

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1PASSENGER SEAT 0003 1SEAT COVER EDGE WIRE & CLIP

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-33220iAXVA70201703-201805

main71014-33410iAXVA70..LE201805-201811

sub71014-33220

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-47090iAXVA70201703-201811

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-33P70-A3iAXVA70..LE201703-201808

NEUTRAL BEIGE,TRIM4#

main71072-33P70-A4iAXVA70..LE201808-201811

NEUTRAL BEIGE,TRIM4#

main71072-33P70-B3iAXVA70..LE201703-201808

NEUTRAL WARM GRAY,TRIM1#

main71072-33P70-B4iAXVA70..LE201808-201811

NEUTRAL WARM GRAY,TRIM1#

main71072-33P70-C3iAXVA70..LE201703-201808

BLACK,TRIM2#

main71072-33P70-C4iAXVA70..LE201808-201811

BLACK,TRIM2#

main71072-33S00-B3iAXVA70..SE201703-201808

GRAY,TRIM1#

main71072-33S00-C3iAXVA70..SE201703-201808

BLACK,TRIM2#

main71072-33S01-B4iAXVA70..SE201808-201811

GRAY,TRIM1#

main71072-33S01-C4iAXVA70..SE201808-201811

BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-33S50-B4iAXVA70..SE201703-201808

GRAY,TRIM1#

main71074-33S50-C3iAXVA70..SE201703-201808

BLACK,TRIM2#

main71074-33S51-B5iAXVA70..SE201808-201811

GRAY,TRIM1#

main71074-33S51-C4iAXVA70..SE201808-201811

BLACK,TRIM2#

main71074-33S60-A2iAXVA70..LE201703-201808

NEUTRAL BEIGE,TRIM4#

main71074-33S60-B2iAXVA70..LE201703-201808

NEUTRAL WARM GRAY,TRIM1#

main71074-33S60-B3iAXVA70..LE201808-201811

NEUTRAL WARM GRAY,TRIM1#

main71074-33S60-C2iAXVA70..LE201703-201808

BLACK,TRIM2#

main71074-33S60-C3iAXVA70..LE201808-201811

BLACK,TRIM2#

main71074-33S60-E0iAXVA70..LE201808-201811

NEUTRAL BEIGE,TRIM4#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-33470iAXVA70201703-201811

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-33300iAXVA70201703-201811

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iAXVA70201703-201811

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-47010iAXVA70201703-201811

71759DHOOK, FRONT SEATBACK, NO.2

main71759-52050iAXVA70201703-201811

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-33400-B0iAXVA70201703-201811

NEUTRAL WARM GRAY,TRIM1#

main71812-33400-C0iAXVA70201703-201811

BLACK,TRIM2#

main71812-33400-E0iAXVA70..LE201703-201811

NEUTRAL BEIGE,TRIM4#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-33010iAXVA70201703-201811

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-47090-B0iAXVA70201703-201811

NEUTRAL WARM GRAY,TRIM1#

sub71862-47090

main71862-47090-C1iAXVA70201703-201811

BLACK,TRIM2#

sub71862-47090

main71862-47090-E0iAXVA70..LE201703-201811

NEUTRAL BEIGE,TRIM4#

sub71862-47090

71868NSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-47010-B0iAXVA70201703-201811

NEUTRAL WARM GRAY,TRIM1#

main71868-47010-C1iAXVA70201703-201811

BLACK,TRIM2#

main71868-47010-E0iAXVA70..LE201703-201811

NEUTRAL BEIGE,TRIM4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iAXVA70201703-201811

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-47080iAXVA70201703-201811

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-33140iAXVA70201703-201811

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47070iAXVA70201703-201811

71874CSHIELD, FRONT SEAT CUSHION, LOWER

main71874-47090iAXVA70201703-201811

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-47080-B0iAXVA70201703-201811

NEUTRAL WARM GRAY,TRIM1#

sub71876-47080

main71876-47080-C1iAXVA70201703-201811

BLACK,TRIM2#

sub71876-47080

main71876-47080-E0iAXVA70..LE201703-201811

NEUTRAL BEIGE,TRIM4#

sub71876-47080

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-47040-B0iAXVA70201703-201811

NEUTRAL WARM GRAY,TRIM1#

sub71876-47040

main71876-47040-C1iAXVA70201703-201811

BLACK,TRIM2#

sub71876-47040

main71876-47040-E0iAXVA70..LE201703-201811

NEUTRAL BEIGE,TRIM4#

sub71876-47040

71910AHEADREST ASSY, FRONT SEAT

main71910-33A80-B3iAXVA70..LE201703-201811

NEUTRAL WARM GRAY,TRIM1#

main71910-33A80-C5iAXVA70..LE201703-201808

BLACK,TRIM2#

main71910-33A80-C6iAXVA70..LE201808-201811

BLACK,TRIM2#

main71910-33A80-E4iAXVA70..LE201703-201811

BLACK,TRIM4#

main71910-33B60-C9iAXVA70..SE201703-201808

BLACK,TRIM2#

main71910-33B60-P0iAXVA70..SE201703-201808

GRAY,TRIM1#

main71910-33B61-21iAXVA70..SE201808-201811

BLACK,TRIM2#

main71910-33B61-P2iAXVA70..SE201808-201811

GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-B2iAXVA70..LE201703-201811

W(LOCK),NEUTRAL WARM GRAY,TRIM1#

main71930-47050-B3iAXVA70..SE201703-201811

W(LOCK),GRAY,TRIM1#

main71930-47050-C5iAXVA70201703-201811

W(LOCK),BLACK,TRIM2#

main71930-47050-E0iAXVA70..LE201703-201811

W(LOCK),NEUTRAL BEIGE,TRIM4#

main71931-47030-B3iAXVA70..LE201703-201811

W/O(LOCK),NEUTRAL WARM GRAY,TRIM1#

main71931-47030-B4iAXVA70..SE201703-201811

W/O(LOCK),GRAY,TRIM1#

main71931-47030-C4iAXVA70201703-201811

W/O(LOCK),BLACK,TRIM2#

main71931-47030-E0iAXVA70..LE201703-201811

W/O(LOCK),NEUTRAL BEIGE,TRIM4#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-33450iAXVA70201703-201811

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-47060iAXVA70201703-201811

72124ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-47060iAXVA70201703-201811

72125PCOVER, SEAT TRACK, UPPER REAR NO.3

main72125-47020iAXVA70201703-201811

sub72125-47010

72125QCOVER, SEAT TRACK, UPPER REAR NO.4

main72125-47020iAXVA70201703-201811

sub72125-47010

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-33250iAXVA70201703-201811

72136BSPACER, SEAT TRACK, LOWER NO.3

main72136-33290iAXVA70201703-201811

72136CSPACER, SEAT TRACK, LOWER NO.4

main72136-33300iAXVA70201703-201811

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-47060iAXVA70201703-201811

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-47080iAXVA70201703-201811

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-47020iAXVA70201703-201811

72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

main72714-47010iAXVA70201703-201811

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-11020iAXVA70201709-201811

main72760-47030iAXVA70201703-201708

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-33080iAXVA70201703-201811

79977AFELT, SEATBACK

main79977-33030iAXVA70201709-201811

8202

8401

8421

85822BMOTOR ASSY, POWER SEAT TILT, LH

main85801-47040iAXVA70201703-201811

85822CMOTOR ASSY, POWER SEAT LIFTER, LH

main85801-47030iAXVA70201703-201811

9011910601

main90119-10601

9014810007

main90148-10007

9046707215

main90467-07215

9356054012

main93560-54012

9418560600

main94185-60600

48 parts on this diagram · 3 diagrams in section
