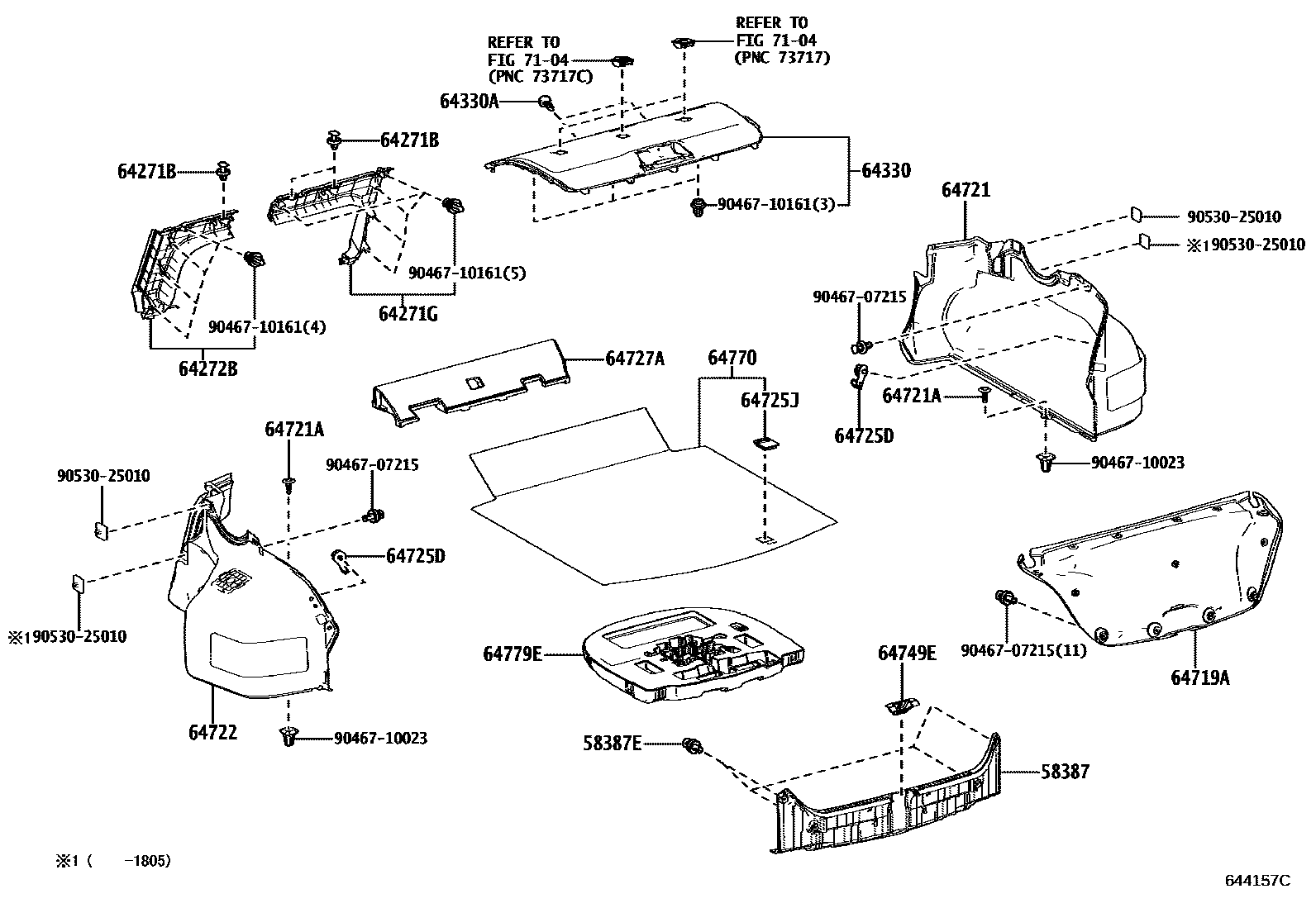

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM1#,2#,4#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
64271BCLIP(FOR ROOM PARTITION BOARD)
64271GBOARD, ROOM PARTITION, RH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
64272BBOARD, ROOM PARTITION, LH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#,2#,4#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM1#,2#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
BLACK
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER
BLACK,TRIM1#,2#,4#
64770COVER ASSY, SPARE WHEEL
BLACK,TRIM1#,2#,4#
64779ETRAY, SPARE WHEEL COVER
7104
9046707215
main90467-07215
9046710023
main90467-10023
9046710161
main90467-10161
9053025010
main90530-25010
22 parts on this diagram · 1 diagram in section
