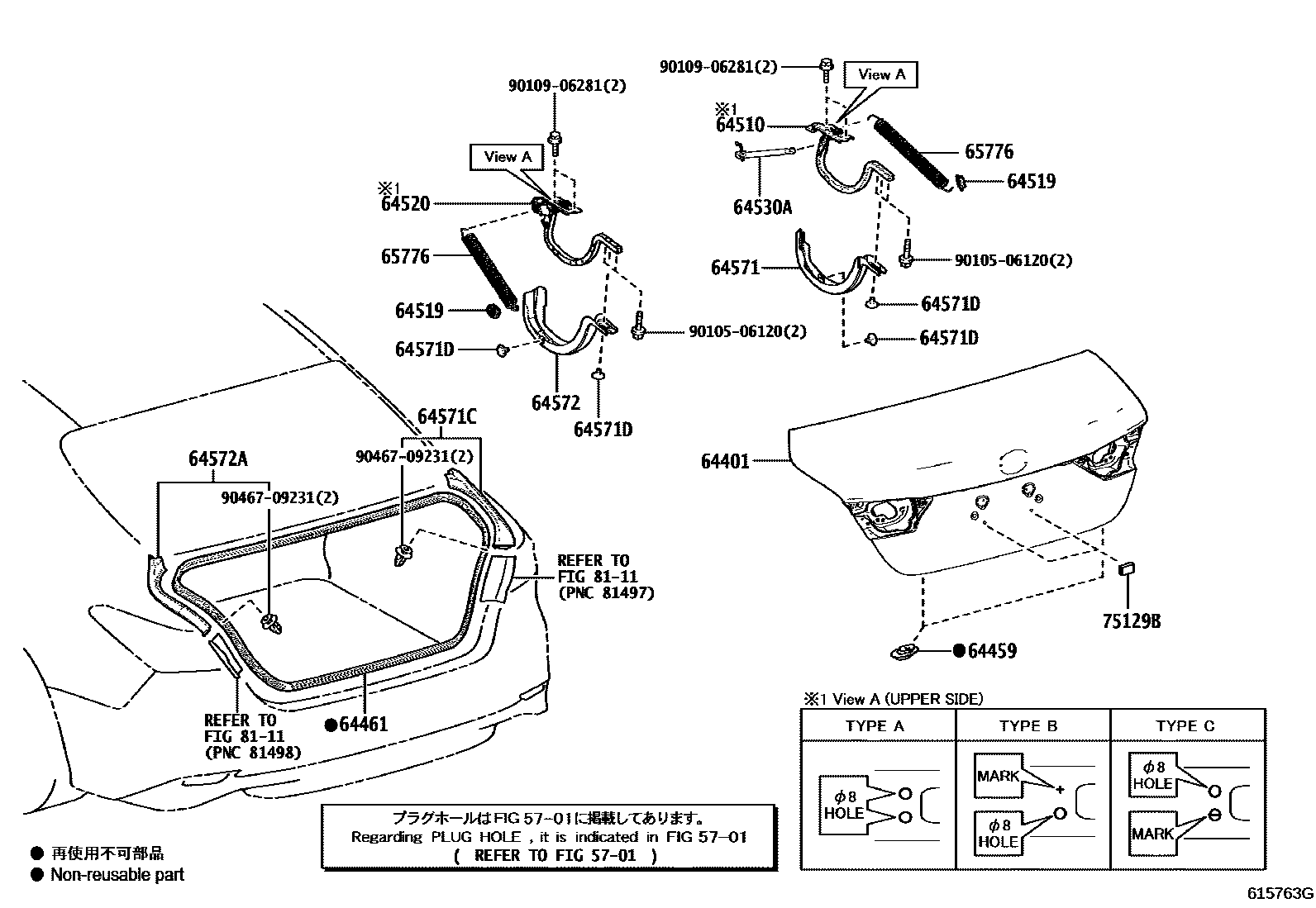

LUGGAGE COMPARTMENT DOOR & LOCK
5701
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
STARTING SYSTEM-PUSH START SWITCH
sub64401-06E00
STARTING SYSTEM-PUSH START SWITCH
sub64401-06F50
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
TYPE C:REFER ILLUST.
64519BUSH, LUGGAGE DOOR HINGE SUPPORT
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
TYPE C:REFER ILLUST.
64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
64571COVER, LUGGAGE COMPARTMENT DOOR HINGE
64571CCOVER, LUGGAGE COMPARTMENT DOOR, RH
64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64572ACOVER, LUGGAGE COMPARTMENT DOOR, LH
65776SPRING, BACK DOOR STAY
75129BCUSHION, REAR LICENCE PLATE
8111
9010506120
main90105-06120
9010906281
main90109-06281
9046709231
main90467-09231
19 parts on this diagram · 2 diagrams in section
