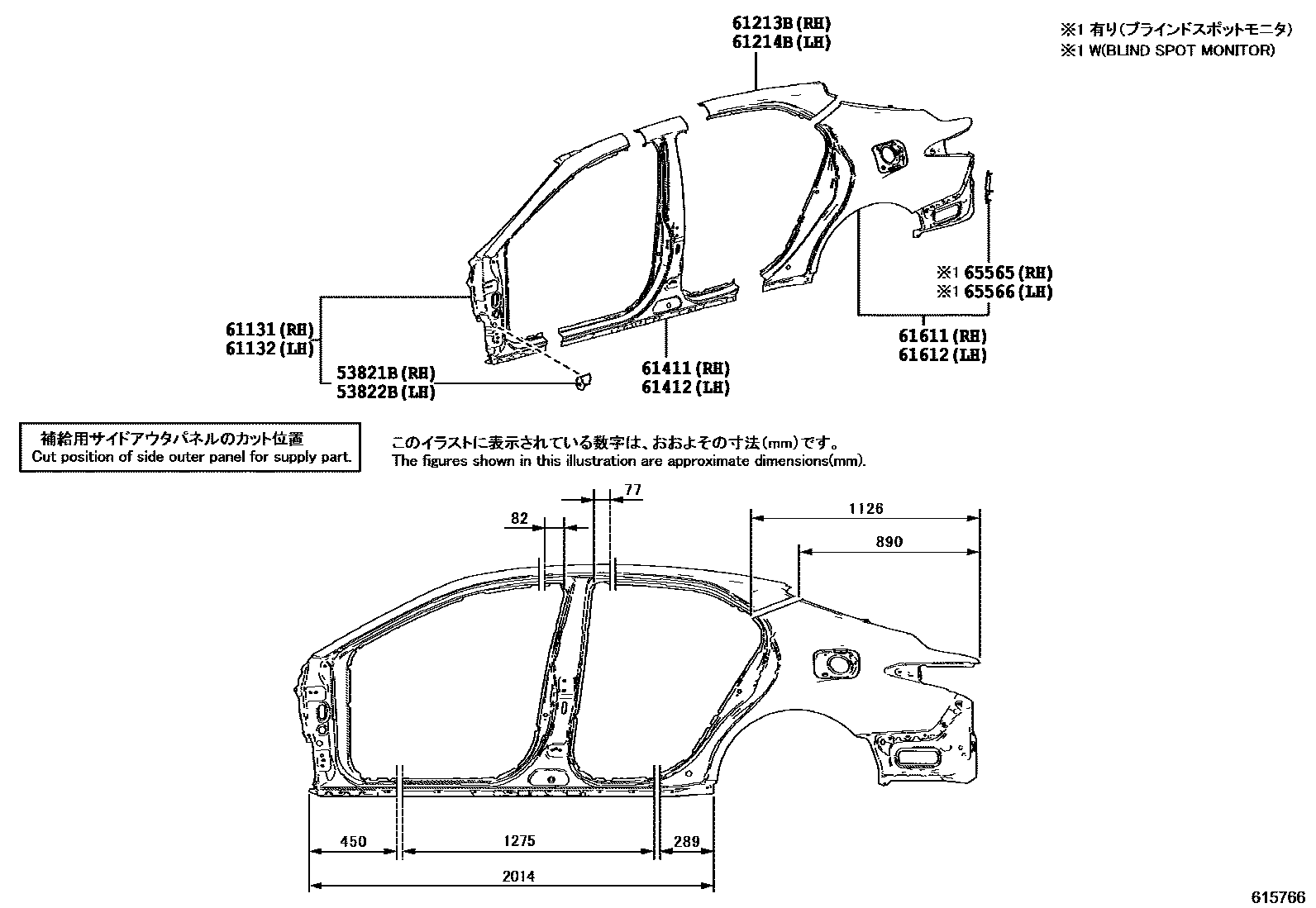

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-75020iAXVA70201703-201811

53822BBRACKET, FRONT FENDER, REAR LH

main53821-75020iAXVA70201703-201811

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-33100iAXVA70201703-201811

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-33100iAXVA70201703-201811

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-33150iAXVA70201703-201811

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-33150iAXVA70201703-201811

61411PANEL, ROCKER, OUTER RH

main61311-33090iAXVA70201707-201811

main61411-33080iAXVA70201703-201706

sub61311-33090

61412PANEL, ROCKER, OUTER LH

main61312-33090iAXVA70201707-201811

main61412-33100iAXVA70201703-201706

sub61312-33090

61611PANEL, QUARTER, RH

main61601-33410iAXVA70201703-201811

61612PANEL, QUARTER, LH

main61602-33290iAXVA70201703-201811

65565PATCH, SIDE PANEL REAR END, RH

main65565-33050

65566PATCH, SIDE PANEL REAR END, LH

main65565-33050

12 parts on this diagram · 3 diagrams in section
