FLOOR PAN & LOWER BACK PANEL
55119BEXTENSION, DASH PANEL, LH
55239FPLATE, DASH PANEL INSULATOR, NO.3
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH
57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH
57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH
57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH
57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH
sub57465-33021
57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH
57475DPLATE, FRONT FLOOR CROSSMEMBER, RH
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57523ABRACE, CENTER FLOOR CROSSMEMBER
57533BBRACE, FRONT FLOOR, CENTER
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
58088BRACKET SUB-ASSY, FLOOR SHIFT LINK
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58111APAN, FRONT FLOOR, RH
sub58111-33111
58112CPAN, FRONT FLOOR, LH
sub58112-33011
58113APANEL, FRONT FLOOR, CENTER
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
sub58127-33050
58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH
sub58128-33040
58136COVER, FRONT FLOOR HOLE
58136BCOVER, CENTER FLOOR HOLE
58177AEXTENSION, FRONT FLOOR PANEL, RH
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58211HPAN, CENTER FLOOR
sub58211-33191
58301GPAN SUB-ASSY, REAR FLOOR
58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58385DBRACKET, REAR BUMPER COVER
9011506166
main90115-06166
9011908D20
main90119-08D20
9017908261
main90179-08261
9155180828
main91551-80828
9167380820
main91673-80820

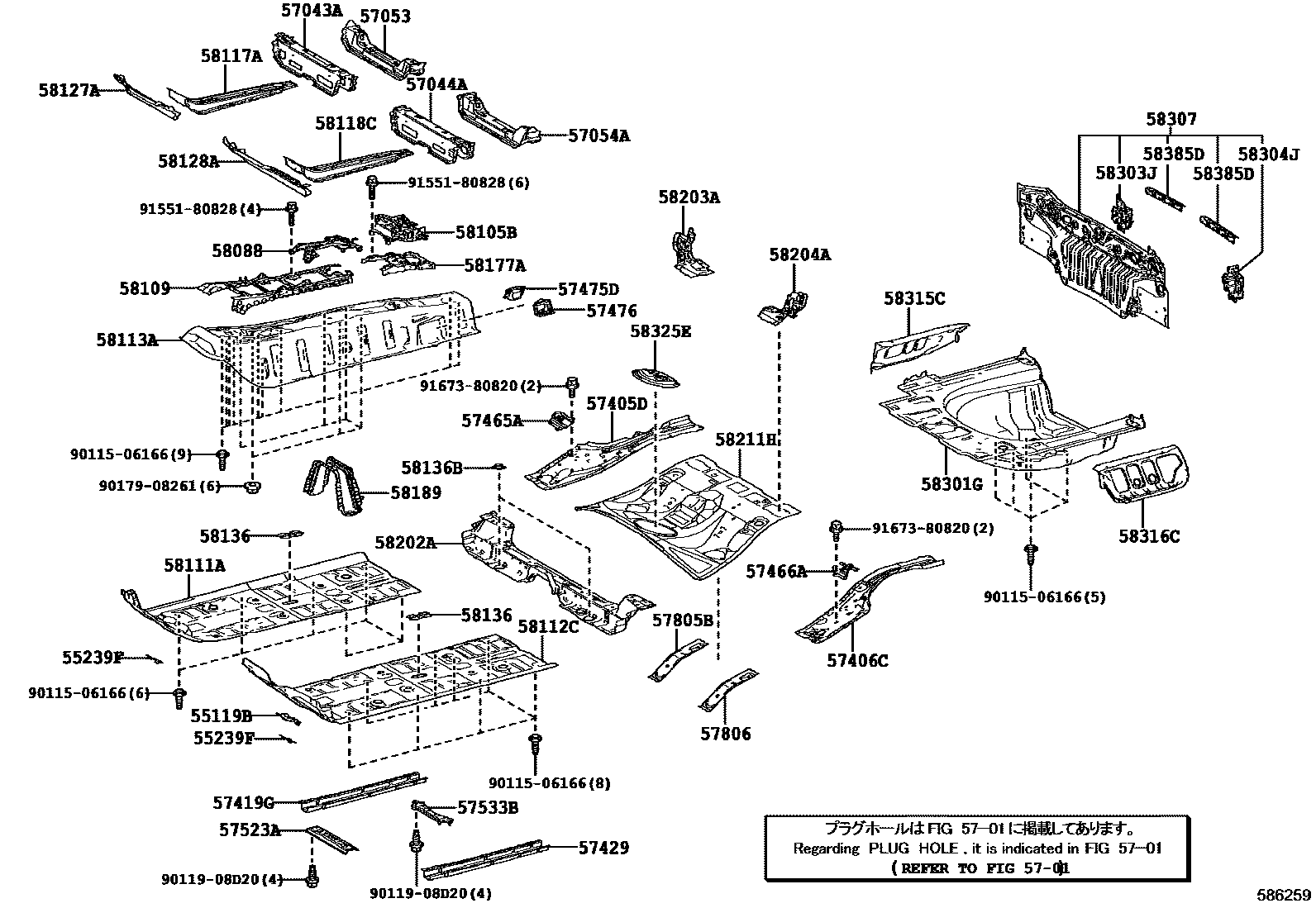

50 parts on this diagram · 1 diagram in section
