FLOOR SIDE MEMBER
51093AHOOK SUB-ASSY, TRANSPORT, FRONT RH
51094HOOK SUB-ASSY, TRANSPORT, FRONT LH
51095BHOOK SUB-ASSY, TRANSPORT, REAR RH
52148JSTOPPER, FRONT BUMPER REINFORCEMENT, RH
52149CSTOPPER, FRONT BUMPER REINFORCEMENT, LH
5701
57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57023HBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57024CBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57119DPLATE, FRONT SIDE MEMBER, FRONT RH
57129CPLATE, FRONT SIDE MEMBER, FRONT LH
57145PLATE, FRONT SIDE MEMBER, CENTER RH
57146PLATE, FRONT SIDE MEMBER, CENTER LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57653AMEMBER, REAR FLOOR CROSS, NO.2
9011912439
9095001A33
9095102002

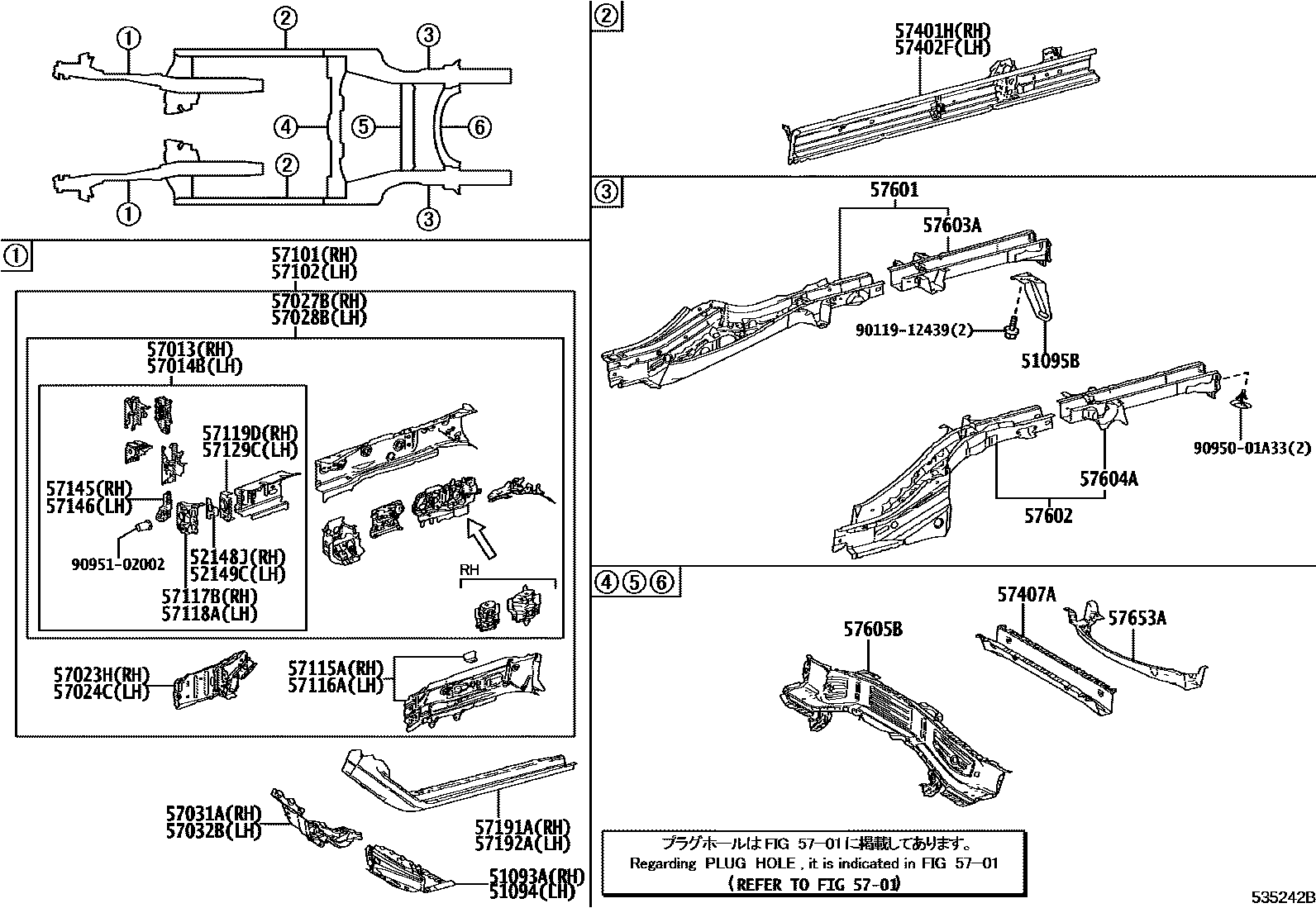

38 parts on this diagram · 1 diagram in section
