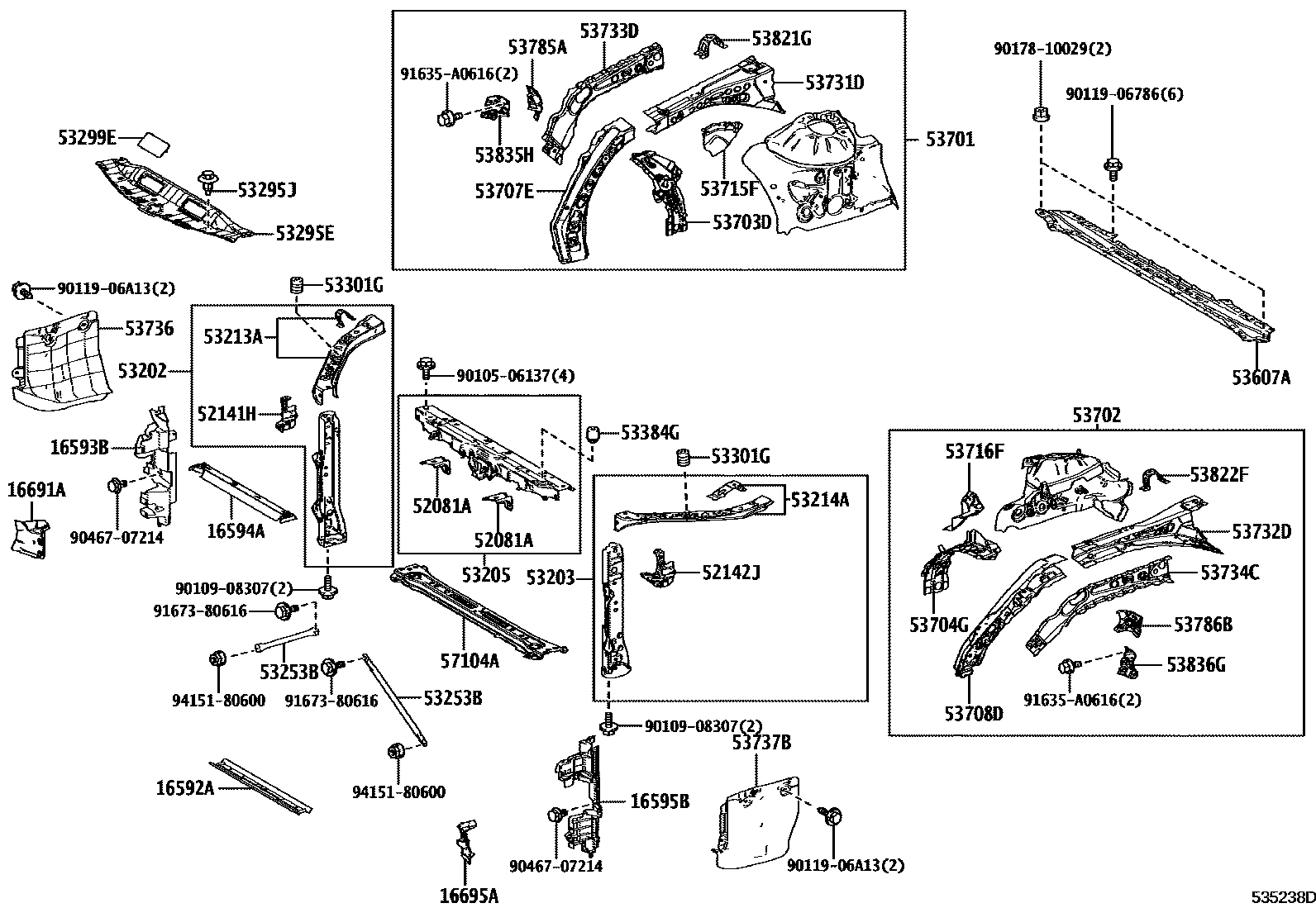

FRONT FENDER APRON & DASH PANEL

0001 1RADIATOR SUPPORT & FENDER APR0002 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25010iA25AFKS..AXVA70201703-201811

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25030iA25AFKS..AXVA70..LE201703-201811

main16593-25040iA25AFKS..AXVA70..SE201703-201811

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25010iA25AFKS..AXVA70201703-201811

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25030iA25AFKS..AXVA70..LE201703-201811

main16595-25040iA25AFKS..AXVA70..SE201703-201811

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-25010iA25AFKS..AXVA70..LE201703-201811

main16691-25020iA25AFKS..AXVA70..SE201703-201811

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-25010iA25AFKS..AXVA70..LE201703-201811

main16695-25020iA25AFKS..AXVA70..SE201703-201811

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52081-33030iAXVA70201703-201811

52141HARM, FRONT BUMPER, UPPER RH

main52141-33130iAXVA70201703-201811

52142JARM, FRONT BUMPER, UPPER LH

main52142-33110iAXVA70201703-201811

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-33903iAXVA70201703-201811

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-33902iAXVA70201703-201811

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-33901iAXVA70201703-201811

53213ASUPPORT, RADIATOR, UPPER RH

main53213-33902iAXVA70201703-201811

53214ASUPPORT, RADIATOR, UPPER LH

main53214-33902iAXVA70201703-201811

53253BBRACKET, RADIATOR MOUNTING, UPPER

main53253-33010iAXVA70201703-201811

53295ESEAL, COOL AIR INTAKE DUCT

main53295-33130iAXVA70201703-201811

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-07217iAXVA70201703-201811

53299EPLATE, COOL AIR INTAKE DUCT

main53299-33020iAXVA70201703-201811

53301GCUSHION, HOOD BUMPER

main90541-15033iAXVA70201703-201811

53384GCUSHION, HOOD, CENTER

main90541-09145iAXVA70201703-201811

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-33010iAXVA70201703-201811

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-33190iAXVA70201703-201811

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-33150iAXVA70201703-201811

53703DAPRON SUB-ASSY, FRONT FENDER, NO.2 RH

main53703-33060iAXVA70201703-201811

53704GAPRON SUB-ASSY, FRONT FENDER, NO.2 LH

main53704-33060iAXVA70201703-201811

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-33020iAXVA70201703-201811

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-33010iAXVA70201703-201811

53715FAPRON, FENDER SIDE, RH

main53715-33010iAXVA70201703-201811

53716FAPRON, FENDER SIDE, LH

main53716-33010iAXVA70201703-201811

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-33100iAXVA70201703-201811

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-33090iAXVA70201703-201811

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-33060iAXVA70201703-201811

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-33060iAXVA70201703-201811

53736SEAL, FRONT FENDER APRON, RH

main53736-33050iAXVA70201703-201811

53737BSEAL, FRONT FENDER APRON, LH

main53737-33030iAXVA70201703-201811

53785AGUSSET, FRONT FENDER APRON, UPPER RH

main53785-33010iAXVA70201703-201811

53786BGUSSET, FRONT FENDER APRON, UPPER LH

main53786-33010iAXVA70201703-201811

53821GBRACKET, FRONT FENDER, REAR RH

main53821-33080iAXVA70201703-201811

53822FBRACKET, FRONT FENDER, REAR LH

main53822-33070iAXVA70201703-201811

53835HBRACE, FRONT FENDER TO EXTENSION, RH

main53835-33110iAXVA70201703-201811

53836GBRACE, FRONT FENDER TO EXTENSION, LH

main53836-33120iAXVA70201703-201811

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-33080iAXVA70201703-201811

9010506137

main90105-06137

9010908307

main90109-08307

9011906786

main90119-06786

9011906A13

main90119-06A13

9017810029

main90178-10029

9046707214

main90467-07214

91635A0616

main91635-A0616

9167380616

main91673-80616

9415180600

main94151-80600

51 parts on this diagram · 2 diagrams in section
