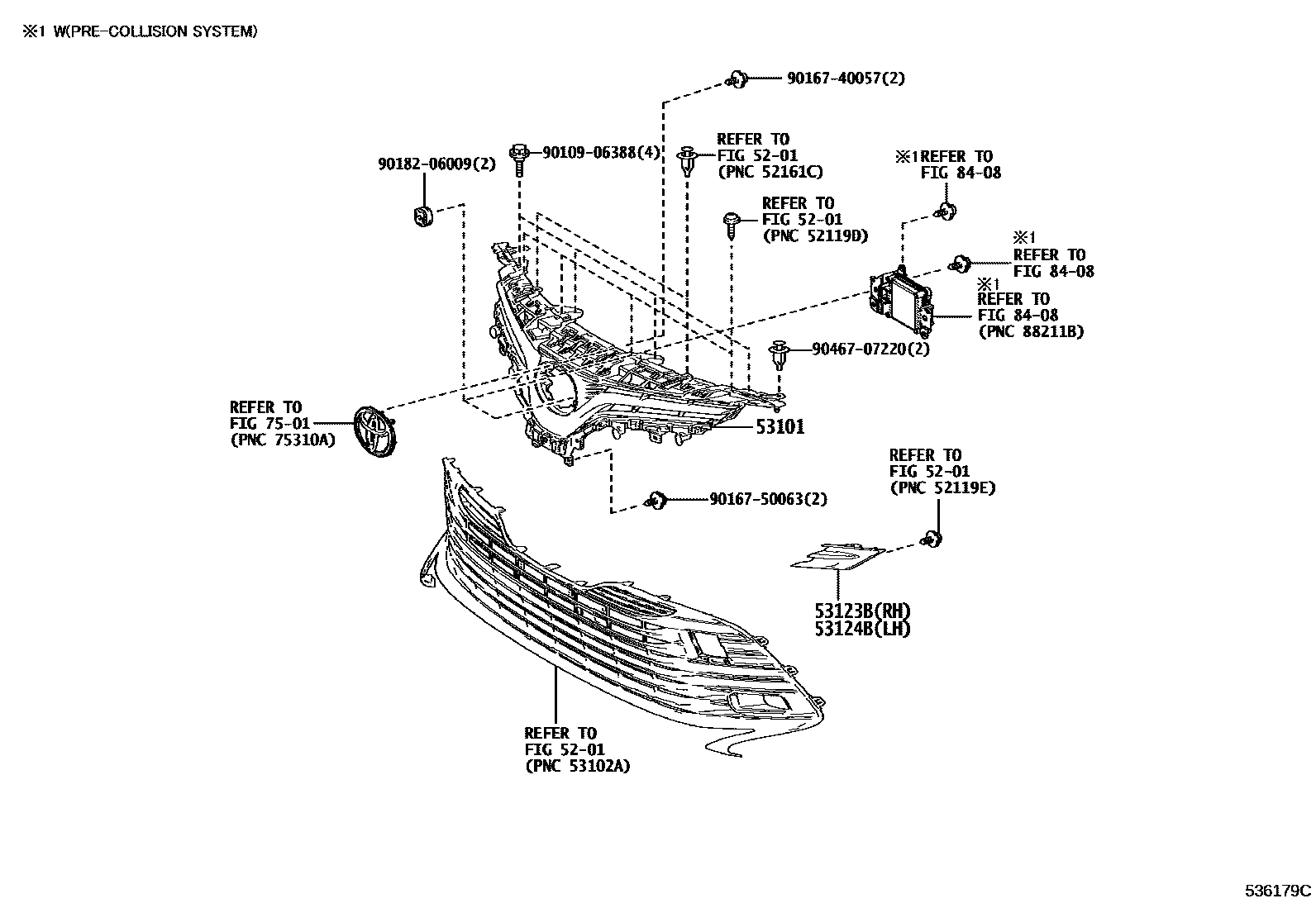

RADIATOR GRILLE

0001 1 0002 1

5201

53101GRILLE SUB-ASSY, RADIATOR

main53101-33410iAXVA70..LE201703-201811

NO PAINT REQ.

main53101-33570iAXVA70..SE201703-201811

NO PAINT REQ.

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-33100iAXVA70..LE201703-201811

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53124-33120iAXVA70..LE201703-201811

7501

8408

9010906388

main90109-06388

9016740057

main90167-40057

9016750063

main90167-50063

9018206009

main90182-06009

9046707220

main90467-07220

11 parts on this diagram · 2 diagrams in section
