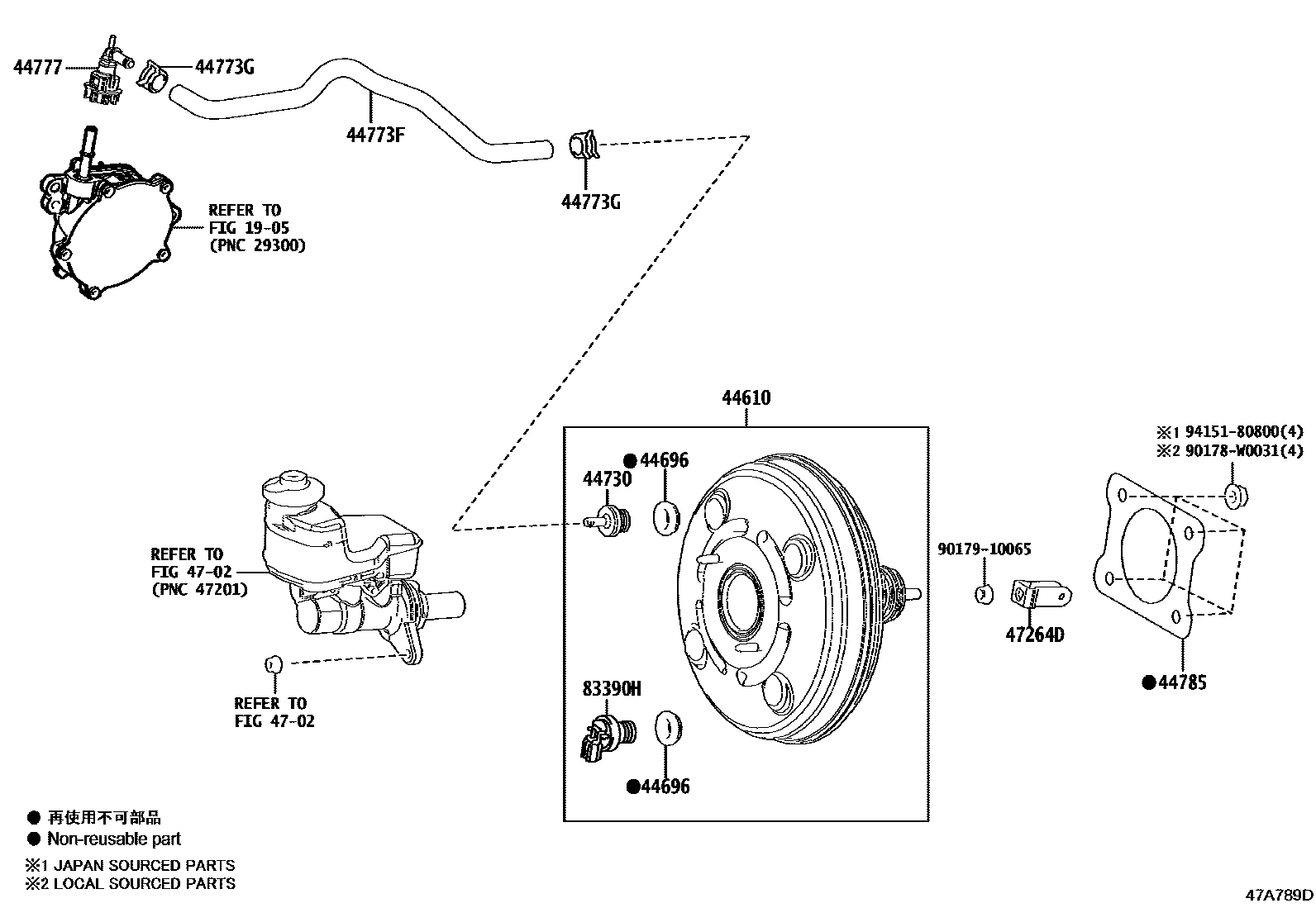

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-33B20iAXVA70201703-201811

44696GROMMET, CHECK VALVE

main90480-24439iAXVA70201703-201811

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iAXVA70201703-201811

44773FHOSE, UNION TO CHECK VALVE

main44773-33180iAXVA70201703-201811

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iAXVA70201703-201811

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-33010iAXVA70201703-201811

44785GASKET, BRAKE BOOSTER

main44785-05020iAXVA70201703-201811

#,(L)

main44785-12040iAXVA70201703-201811

#,(J)

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-33030iAXVA70201703-201811

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iAXVA70201703-201811

90178W0031

main90178-W0031

9017910065

main90179-10065

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
