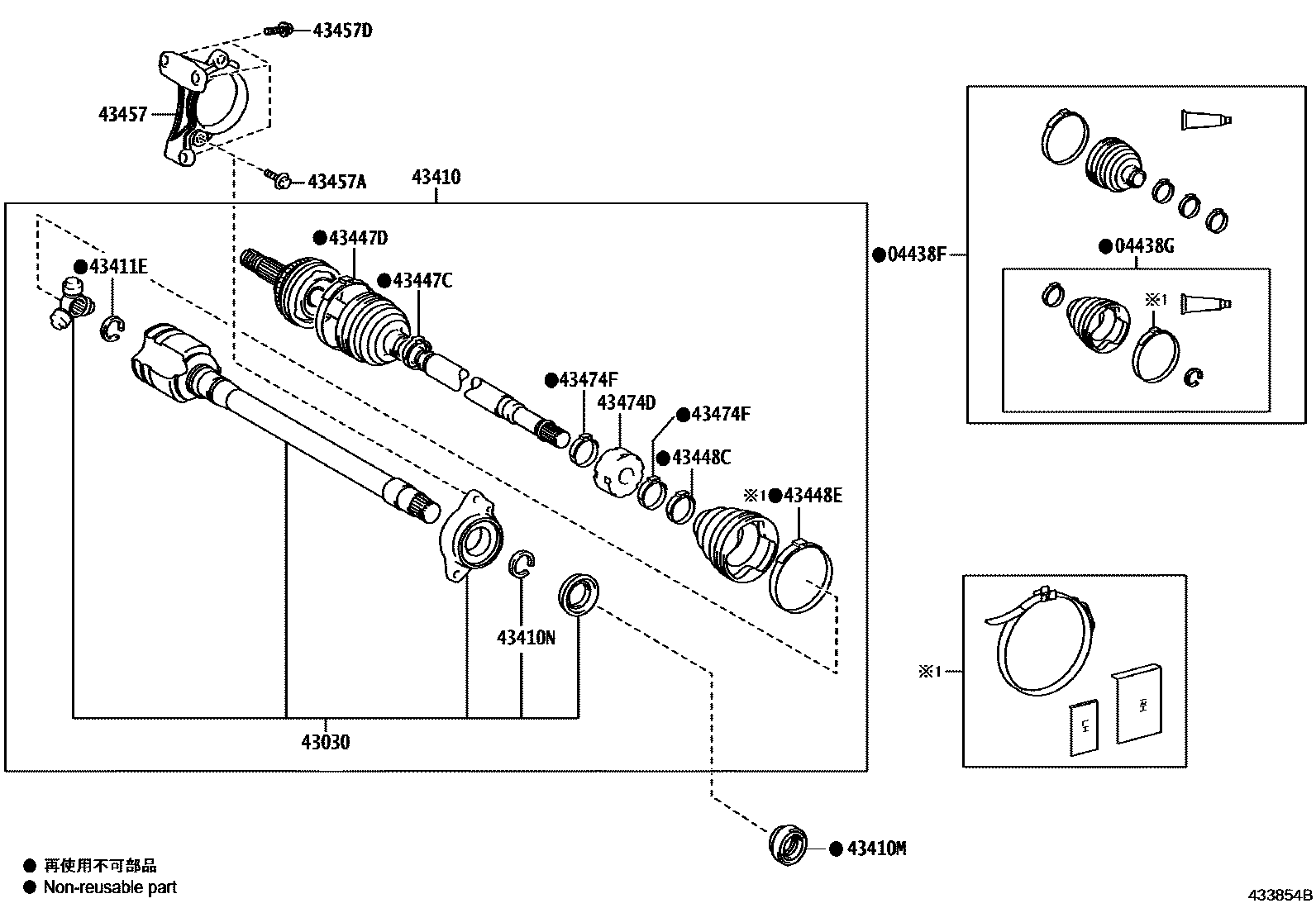

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-33120iAXVA70201703-201811

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-33090iAXVA70201703-201811

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-33060iAXVA70201703-201811

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-33350iAXVA70201703-201811

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40046iAXVA70201703-201811

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015iAXVA70201703-201811

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iAXVA70201703-201811

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iAXVA70201703-201811

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iAXVA70201703-201811

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-33120iAXVA70201703-201811

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-33140iAXVA70201703-201811

43457BRACKET, DRIVE SHAFT BEARING

main43457-33050iAXVA70201703-201811

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iAXVA70201703-201811

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iAXVA70201703-201811

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-48080iAXVA70201703-201811

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12090iAXVA70201703-201811

16 parts on this diagram · 2 diagrams in section
