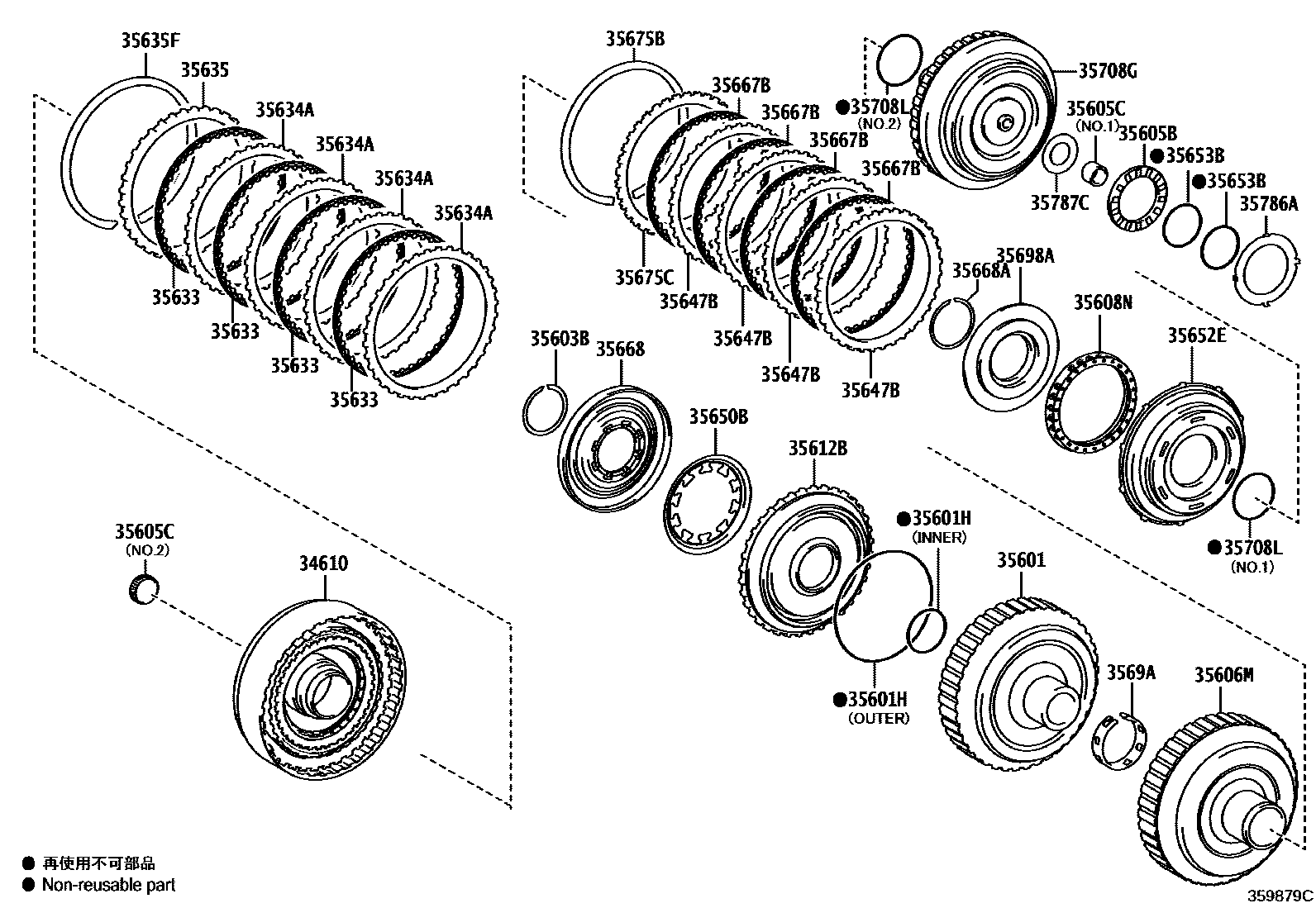

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34610CLUTCH ASSY, C-3 & C-4
35601DRUM SUB-ASSY, CLUTCH
35601HRING, O(FOR C-1 DRUM)
OUTER
INNER
35603BRING, SHAFT SNAP (FOR FORWARD CLUTCH PISTON)
35605BBEARING, THRUST NEEDLE ROLLER
35605CBEARING, NEEDLE ROLLER
NO.1,TMC:REFER 35-01
NO.1,AISIN:SEE 35-01
35606MHUB SUB-ASSY, SUN GEAR INPUT
TOYOTA:REFER 35-01
AISIN:REFER 35-01
35608NSPRING SUB-ASSY, CLUTCH RETURN W/RETAINER
35612BPISTON, FORWARD CLUTCH
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
35635FLANGE, FORWARD CLUTCH
T=4.0
T=4.1
T=4.2
T=4.3
T=4.4
T=4.5
T=4.6
35635FRING SNAP (FOR FOWARD CLUTCH FLANGE)
35647BPLATE, CLUTCH, NO.2
35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)
35652EPISTON, C-2 CLUTCH
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
35667BDISK, CLUTCH, NO.2
35668BALANCER, CLUTCH, NO.1
35668ARING, SNAP(FOR CLUTCH BALANCER)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
T=3.6,AISIN:REFER 35-01
T=3.7,AISIN:REFER 35-01
T=3.8,AISIN:REFER 35-01
T=3.9,AISIN:REFER 35-01
T=4.0,AISIN:REFER 35-01
T=4.1,AISIN:REFER 35-01
T=4.2,AISIN:REFER 35-01
35698ABALANCER, C-2 CLUTCH
3569ARING, CLUTCH DRUM TOLERANCE
35708GSHAFT SUB-ASSY, INTERMEDIATE
AISIN:REFER 35-01
35708LRING, O (FOR INTERMEDIATE SHAFT)
NO.1
NO.2
35786ARACE, THRUST BEARING, NO.1
35787CRACE, THRUST BEARING, NO.2
28 parts on this diagram · 1 diagram in section
