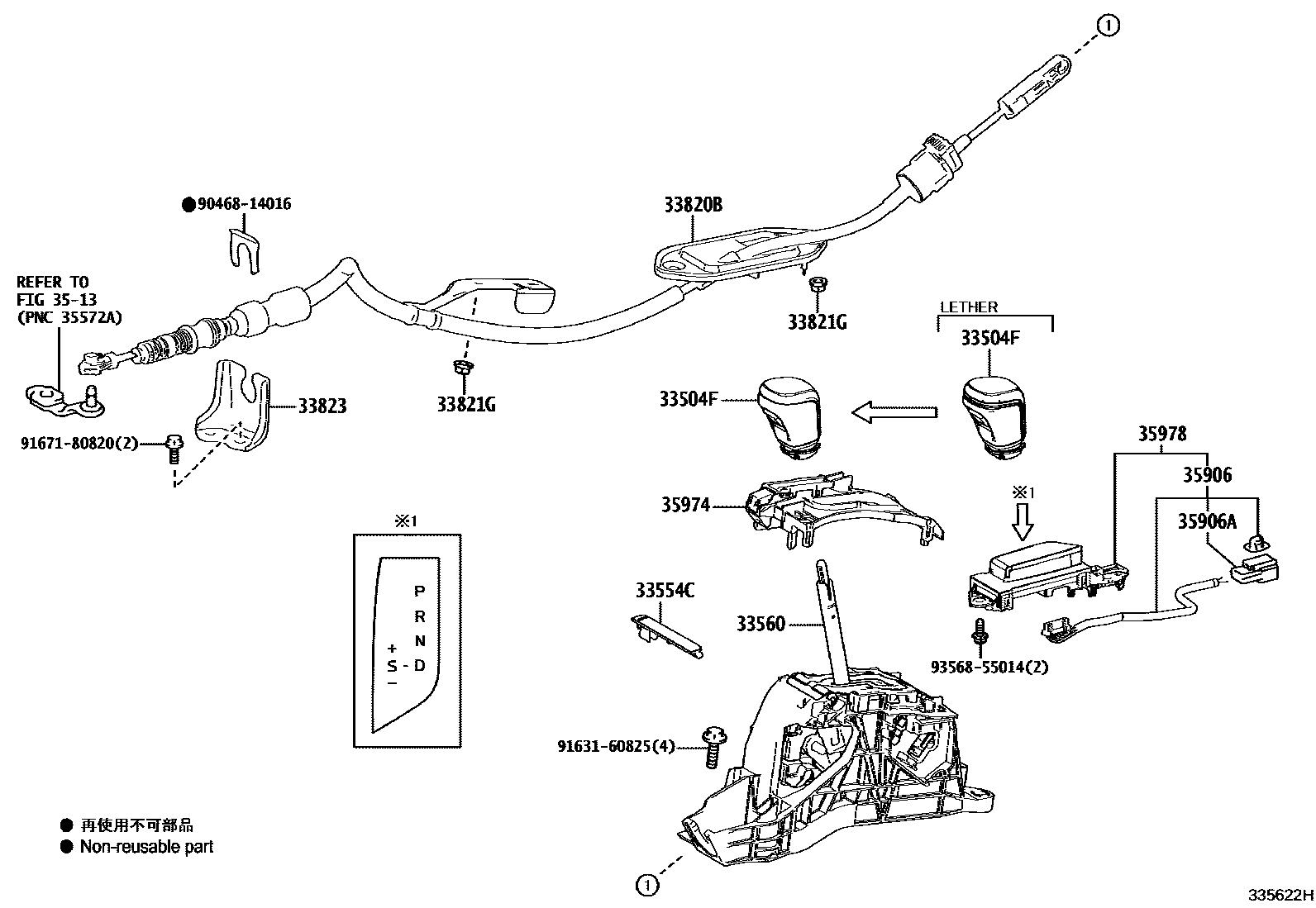

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12770-C0iAXVA70..SE201808-201811

BLACK,TRIM1#,2#

main33504-33170-C0iAXVA70..LE201703-201811

BLACK,TRIM1#,2#,4#

main33504-33180-C0iAXVA70..SE201703-201807

BLACK,TRIM1#,2#,4#

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-33130iAXVA70201703-201811

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-33370iAXVA70201703-201811

main33560-33380iAXVA70201703-201811

CONVENIENT PACKAGE

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-33400iAXVA70201703-201810

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90179-06274iAXVA70201703-201811

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-33070iAXVA70201703-201811

3513

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-33180iAXVA70201703-201811

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-12367iAXVA70201703-201811

35974HOUSING, POSITION INDICATOR, LOWER

main35974-33240iAXVA70201703-201811

35978INDICATOR, SHIFT POSITION

main35978-33180iAXVA70201703-201811

9046814016

main90468-14016

9163160825

main91631-60825

9167180820

main91671-80820

9356855014

main93568-55014

15 parts on this diagram · 1 diagram in section
