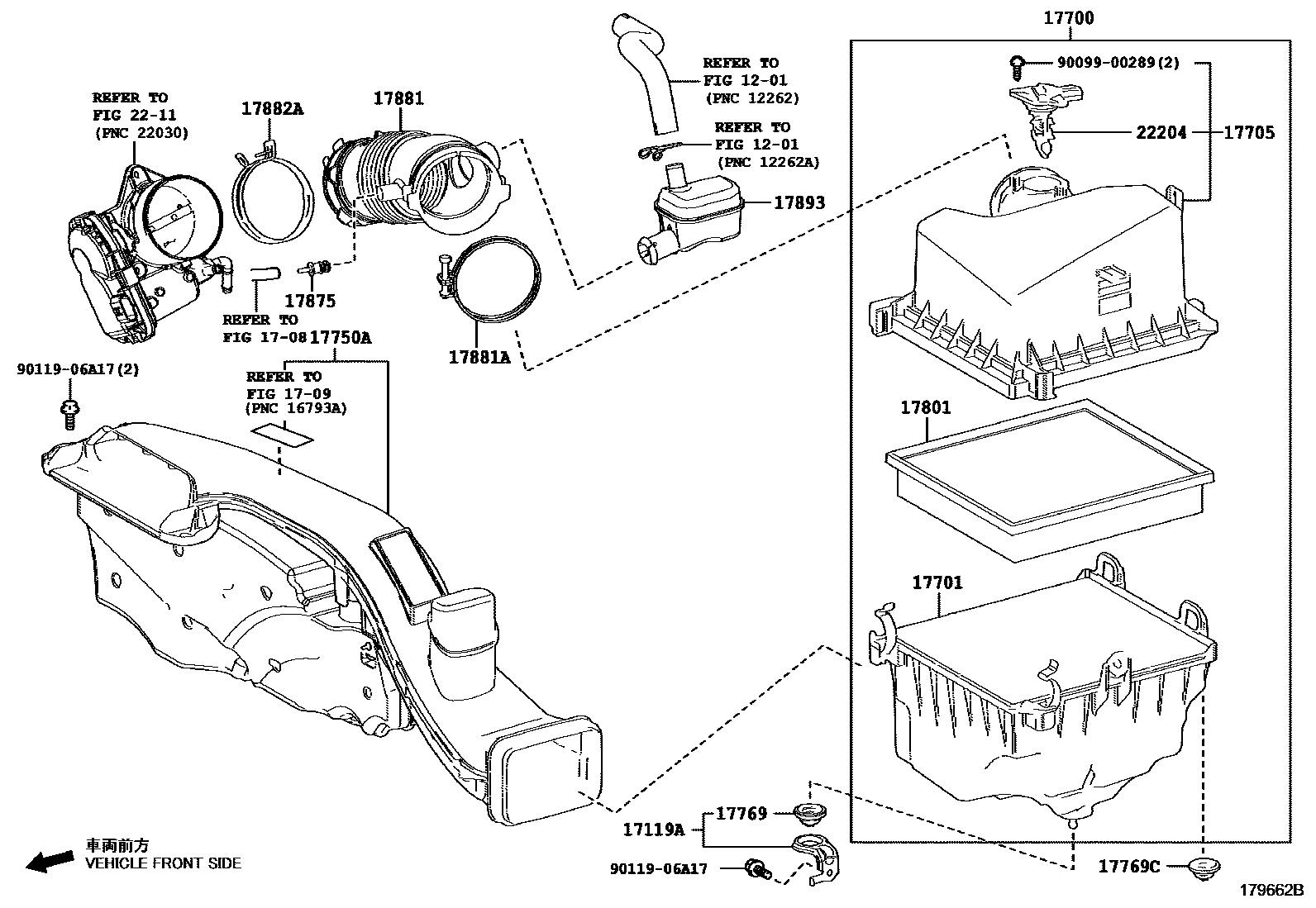

AIR CLEANER
1201
1708
1709
17119ABRACKET, AIR CLEANER
17700CLEANER ASSY, AIR
sub17700-25071
17701CASE SUB-ASSY, AIR CLEANER
sub17701-25071
17705CAP SUB-ASSY, AIR CLEANER
17750AINLET ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17875PIPE, INTAKE AIR CONNECTOR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
9009900289
main90099-00289
9011906A17
main90119-06A17
20 parts on this diagram · 1 diagram in section
