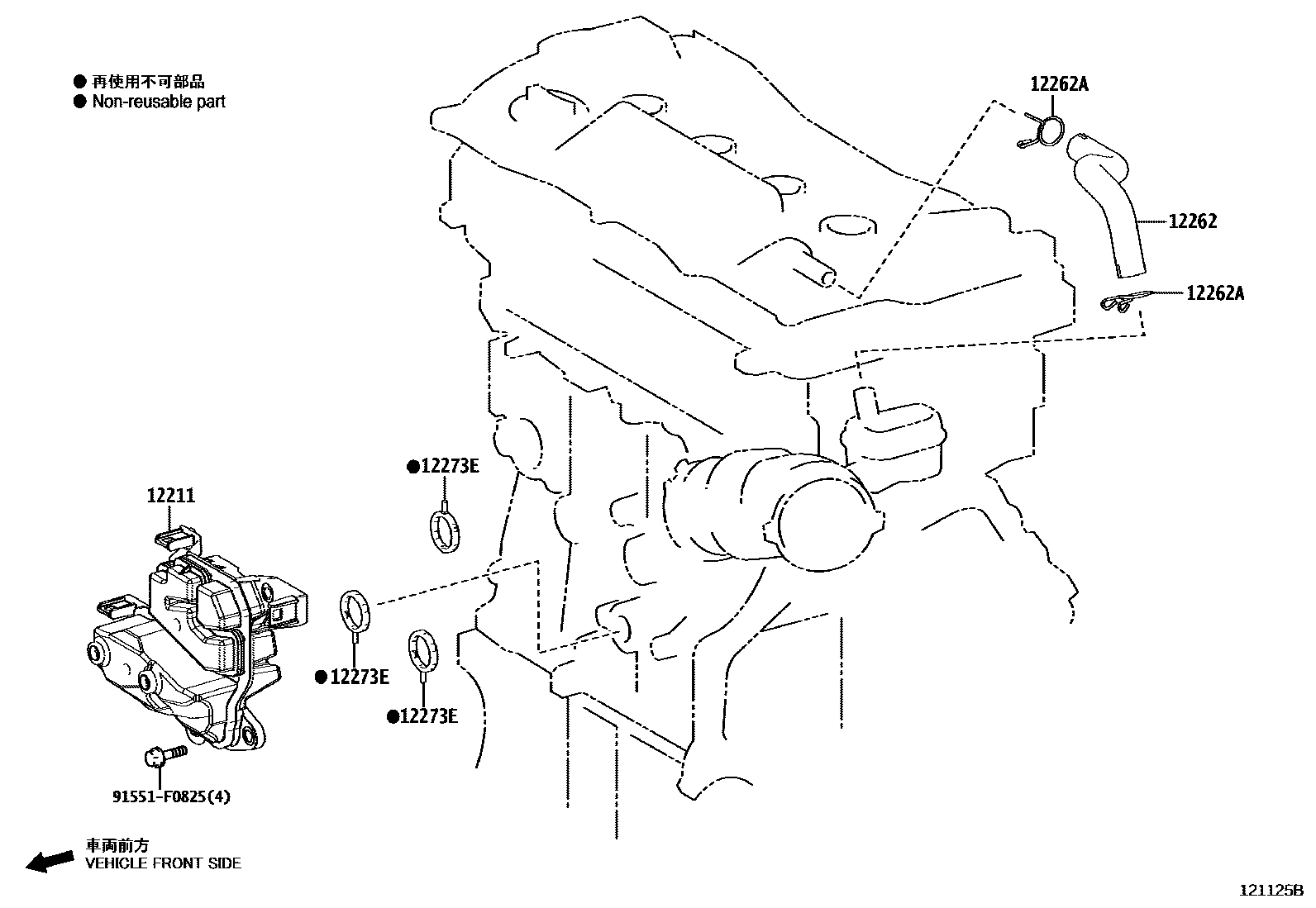

VENTILATION HOSE

12211CASE, VENTILATION, NO.1

main12211-25010iA25AFKS..AXVA70201703-201811

sub12211-25011

12262HOSE, VENTILATION, NO.2

main12262-25030iA25AFKS..AXVA70201703-201811

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iA25AFKS..AXVA70201703-201811

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iA25AFKS..AXVA70201709-201811

main12273-25010iA25AFKS..AXVA70201703-201708

sub12273-24010

91551F0825

main91551-F0825

5 parts on this diagram · 1 diagram in section
