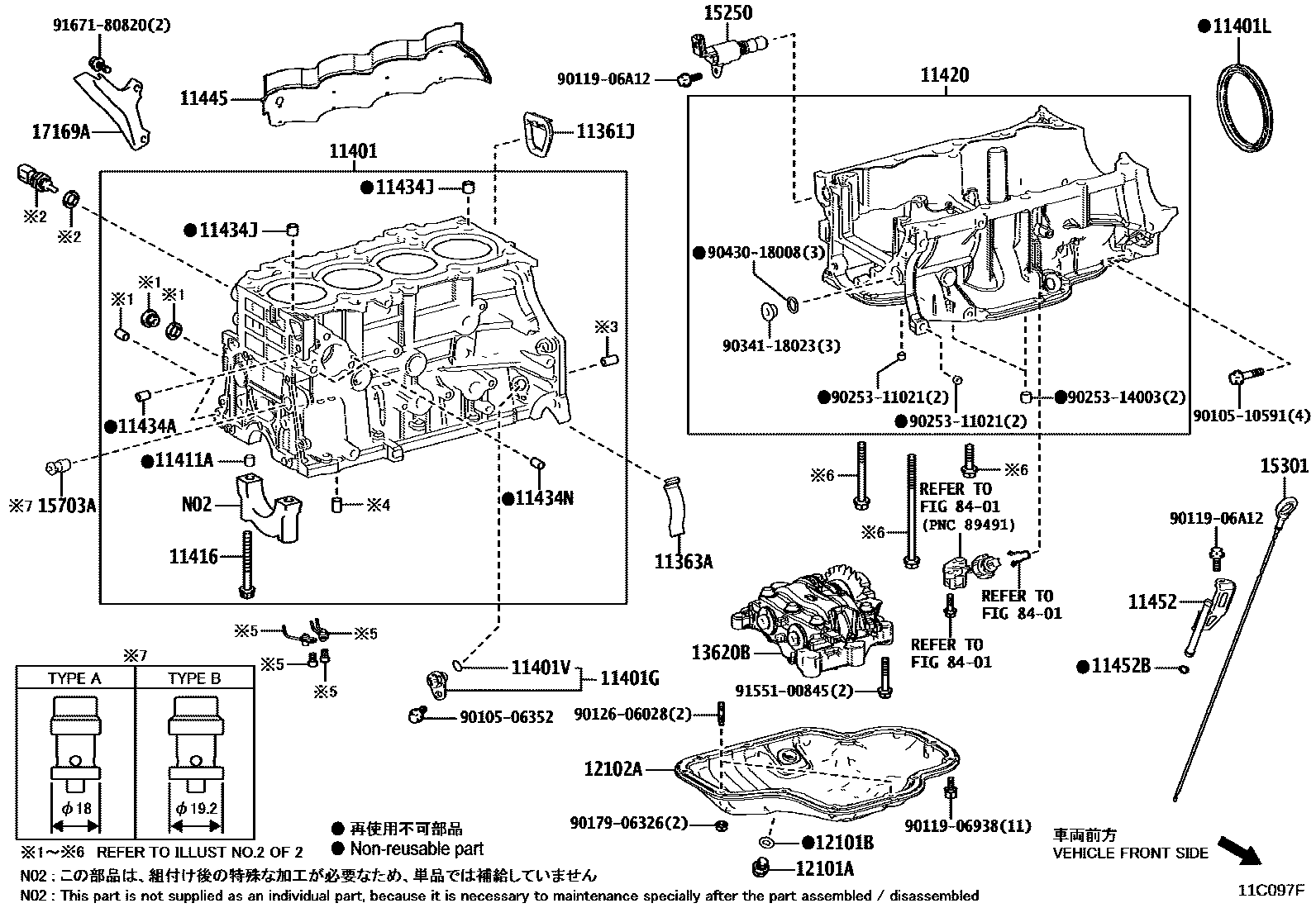

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
PNC 15703A=TYPE B
11401GSENSOR, CRANK POSITION
11401LSEAL, ENGINE REAR OIL
11401VO-RING, CRANK POSITION SENSOR
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
13620BBALANCER ASSY, ENGINE
15250VALVE ASSY, OIL PRESSURE CONTROL
15301GAGE SUB-ASSY, OIL LEVEL
15703AVALVE SUB-ASSY, OIL NOZZLE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
8401
9010506352
9010510591
9011906938
9011906A12
9012606028
9017906326
9025311021
9025314003
9034118023
9043018008
9155100845
9167180820
36 parts on this diagram · 2 diagrams in section
