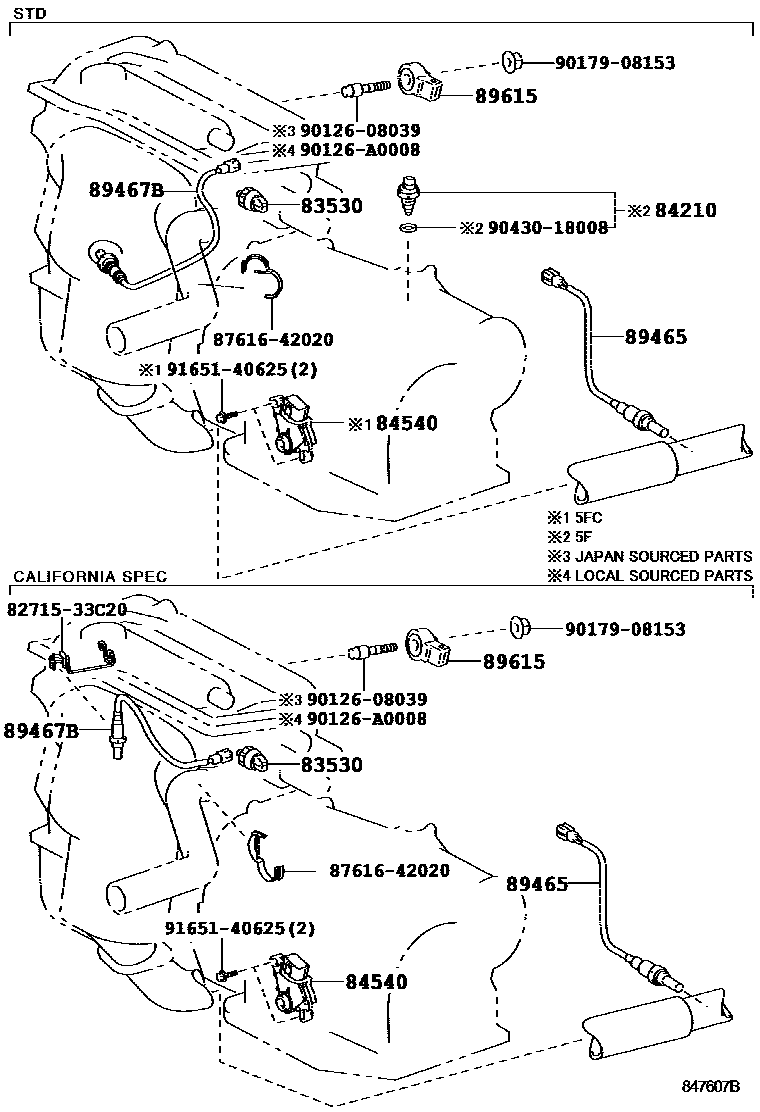

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 2/2 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1SEAT 0011 1DOOR,ROOF,FLOOR & LAGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iASV40,GSV40..JPP200601-201108

DENSO

main83530-60020iASV40,GSV40..JPP200601-201108

YAZAKI

main83530-AA011iACV40,GSV40..JPP200704-200901

FASCO

sub83530-0E010

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iACV40..JPP..5F200601-200901

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-33010iASV40,GSV40..JPP200601-201108

main84540-48010iACV40..JPP..5FC200601-200901

89465SENSOR, OXYGEN

main89465-33360iGSV40..JPP200601-201108

LH

main89465-33420iGSV40..JPP200601-201108

RH

main89465-33460iACV40..JPP200601-200901

main89465-33520iASV40..JPP200901-201108

89467BSENSOR, AIR FUEL RATIO

main89467-33080iACV40..JPP200601-200705

MARK:TAPE=ORANGE

main89467-33090iGSV40..JPP200601-200707

LH

main89467-33130iGSV40..JPP200601-200707

RH

main89467-33160iACV40..JPP200706-200901

MARK:TAPE=GREEN

main89467-33170iGSV40..JPP200707-201108

LH

main89467-33180iGSV40..JPP200707-201108

RH

main89467-58090iACV40..JPP200601-200901

main89467-73010iASV40..JPP200901-201108

89615SENSOR, KNOCK CONTROL

main89615-20090iGSV40..JPP200601-201108

8271533C20BRACKET,WIRING HARNESS CLAMP

main82715-33C20

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

90126A0008

main90126-A0008

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

13 parts on this diagram · 11 diagrams in section
