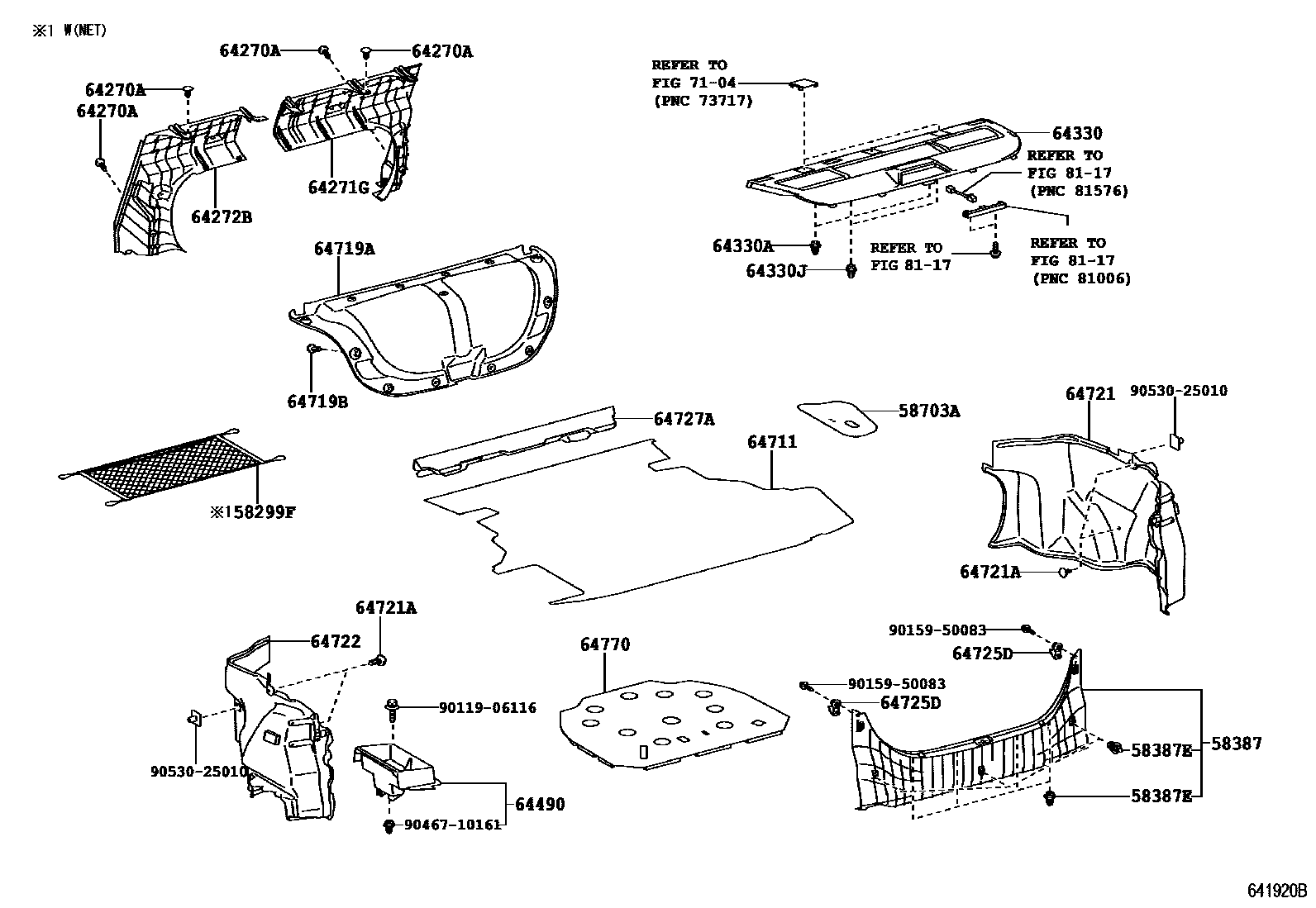

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58299FNET, BAGGAGE HOLDER
LUGGAGE HOLDING BELT-WITH
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
64271GBOARD, ROOM PARTITION, RH
64272BBOARD, ROOM PARTITION, LH
64330PANEL ASSY, PACKAGE TRAY TRIM
GRAY,TRIM1#
GREGE,TRIM4#
*DRP POWER SEAT & LEATHER PACKAGE,GRAY,TRIM1#
GRAY,TRIM1#
*DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#,4#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM1#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#,4#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
64770COVER ASSY, SPARE WHEEL
7104
8117
9011906116
main90119-06116
9015950083
main90159-50083
9046710161
main90467-10161
9053025010
main90530-25010
26 parts on this diagram · 2 diagrams in section
