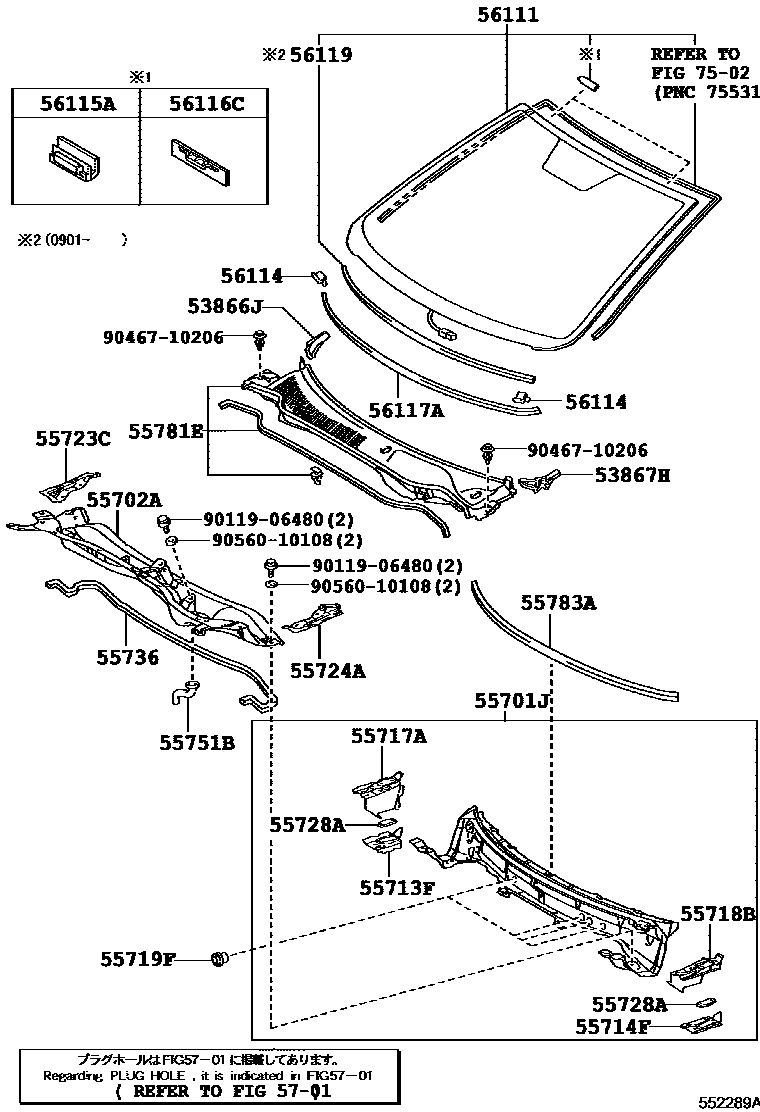

COWL PANEL & WINDSHIELD GLASS
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55713FREINFORCEMENT, COWL TOP SIDE, RH
55714FREINFORCEMENT, COWL TOP SIDE, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55719FPACKING, FRONT LOWER PANEL
55723CREINFORCEMENT, COWL TOP SIDE, RH
55724AREINFORCEMENT, COWL TOP SIDE, LH
55728AREINFORCEMENT, HOOD STOPPER
55736SEAL, WATER GUARD PLATE
55751BHOSE, COWL WATER EXTRACT, NO.1
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
56111GLASS, WINDSHIELD
*UVCL,T=4.76,GREEN
*UVCL,T=4.76,GREEN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE WITH COMPAS
*UVCL,T=4.76,GREEN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPUS
sub56101-33582
*UVCL,T=4.76,GREEN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPUS
sub56101-33922
sub56115-30120
sub56116-22050
sub56119-33010
sub75531-33090
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=1480,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE WITH COMPAS
sub56117-50140
L=1480,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPUS
sub56117-50140
56119SEAL, WINDSHIELD GLASS
5701
7502
9011906480
main90119-06480
9046710206
main90467-10206
9056010108
main90560-10108
27 parts on this diagram · 1 diagram in section
