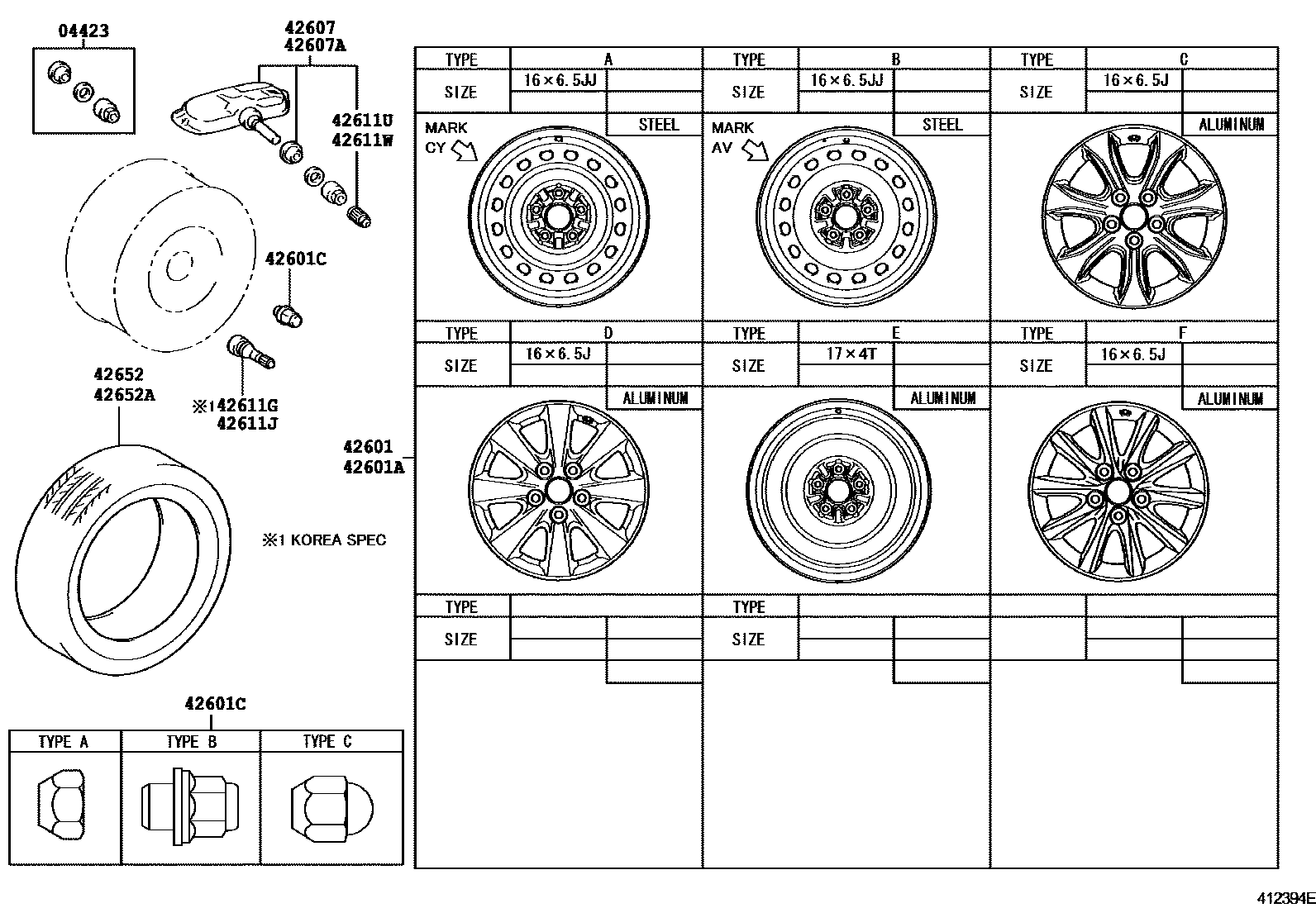

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
sub04423-33060
42601WHEEL, DISC
16X6.5JJ, #,TYPE A:REFER ILLUST.
16X6.5J,#,TIRE & DISK WHEEL-P215/60R16 94V 6.5J ALUMINUM,TYPE C:REFER ILLUST.
sub42611-33750
16X6.5JJ,#
16X6.5JJ,#,TYPE B:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X6.5JJ, #,SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST.
17X4T,TYPE E:REFER ILLUST.
16X6.5JJ,#,SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE B:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-P215/60R16 94V 6.5J ALUMINUM,TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-P215/60R16 94V 6.5J ALUMINUM
TYPE C:REFER ILLUST.
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
KOREA SPEC
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
SPARE TIRE-GROUND TIRE(STEEL WHEEL)
42652TIRE
P215/60R16,*B/S,KOREA SPEC
P215/60R16,MICHELIN
P215/60R16,MICHELIN,KOREA SPEC
42652ATIRE (FOR SPARE)
P215/60R16,*B/S,SPARE TIRE-GROUND TIRE(STEEL WHEEL)
sub42652-06681
P215/60R16,MICHELIN,SPARE TIRE-GROUND TIRE(STEEL WHEEL)
12 parts on this diagram · 3 diagrams in section
