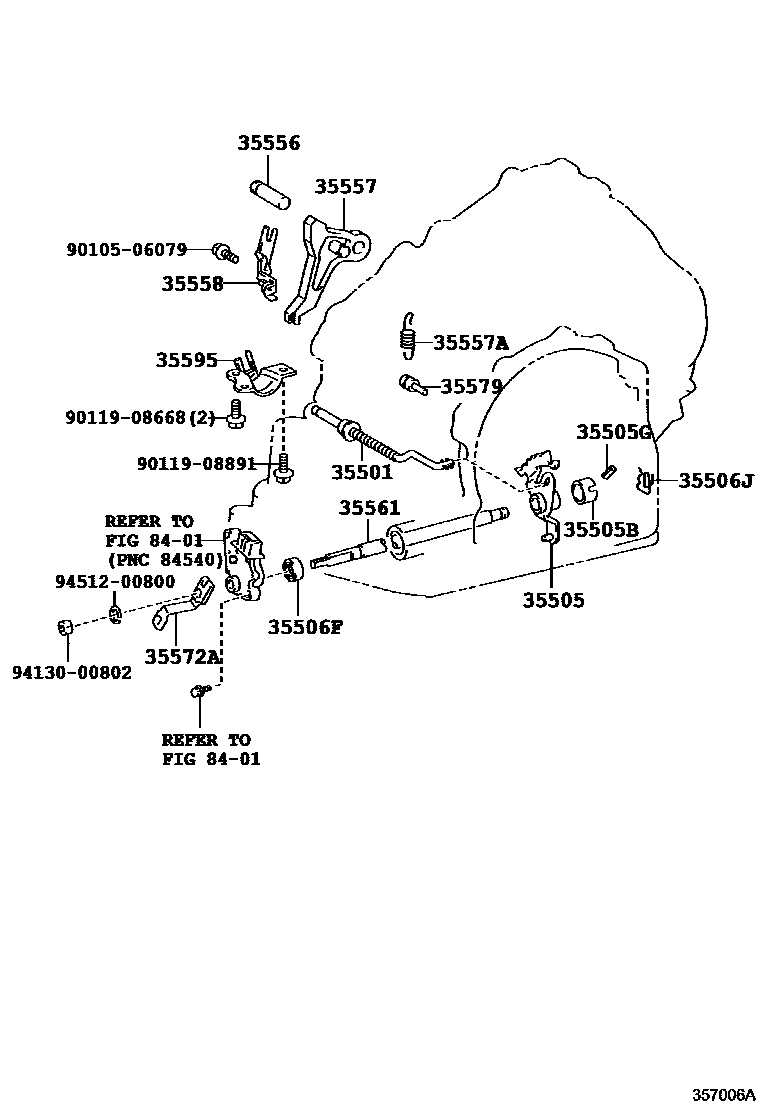

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U250E 0002 1U660E 0003 1U760E

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iACV40..JPP..5FC200601-200901

main35501-33020iGSV40..JPP200601-201108

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-21010iACV40..JPP..5FC200601-200901

main35505-33010iGSV40..JPP200601-200810

sub35505-33011

main35505-33011iGSV40..JPP200810-201108

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iACV40..JPP..5FC200601-200901

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iACV40..JPP..5FC200601-201108

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-73011iASV40..JPP200901-201108

sub35506-33011

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iACV40..JPP..5FC200601-201108

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iACV40..JPP..5FC200601-200901

main90524-09002iASV40,GSV40..JPP200601-201108

35556SHAFT, PARKING LOCK PAWL

main35556-32030iACV40..JPP..5FC200601-200901

main35556-33010iASV40,GSV40..JPP200601-201108

35557PAWL, PARKING LOCK

main35557-33020iGSV40..JPP200601-201108

sub35557-33021

main35557-73010iASV40..JPP200901-201108

main35590-32010iACV40..JPP..5FC200601-200901

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iACV40..JPP..5FC200601-200901

35558CLAMP, PAWL SHAFT

main35558-32010iACV40..JPP..5FC200601-200901

main35558-33010iASV40,GSV40..JPP200601-201108

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iACV40..JPP..5FC200601-200901

main35561-33020iGSV40..JPP200601-201108

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33020iASV40,GSV40..JPP200601-201108

main35572-33040iACV40..JPP..5FC200601-200901

35579PIN, PARKING LOCK PAWL

main35594-21010iACV40..JPP..5FC200601-200901

35595BRACKET, PARKING LOCK PAWL

main35595-21010iACV40..JPP..5FC200601-200901

8401

9010506079

main90105-06079

9011908668

main90119-08668

9011908891

main90119-08891

9413000802

main94130-00802

9451200800

main94512-00800

21 parts on this diagram · 3 diagrams in section
