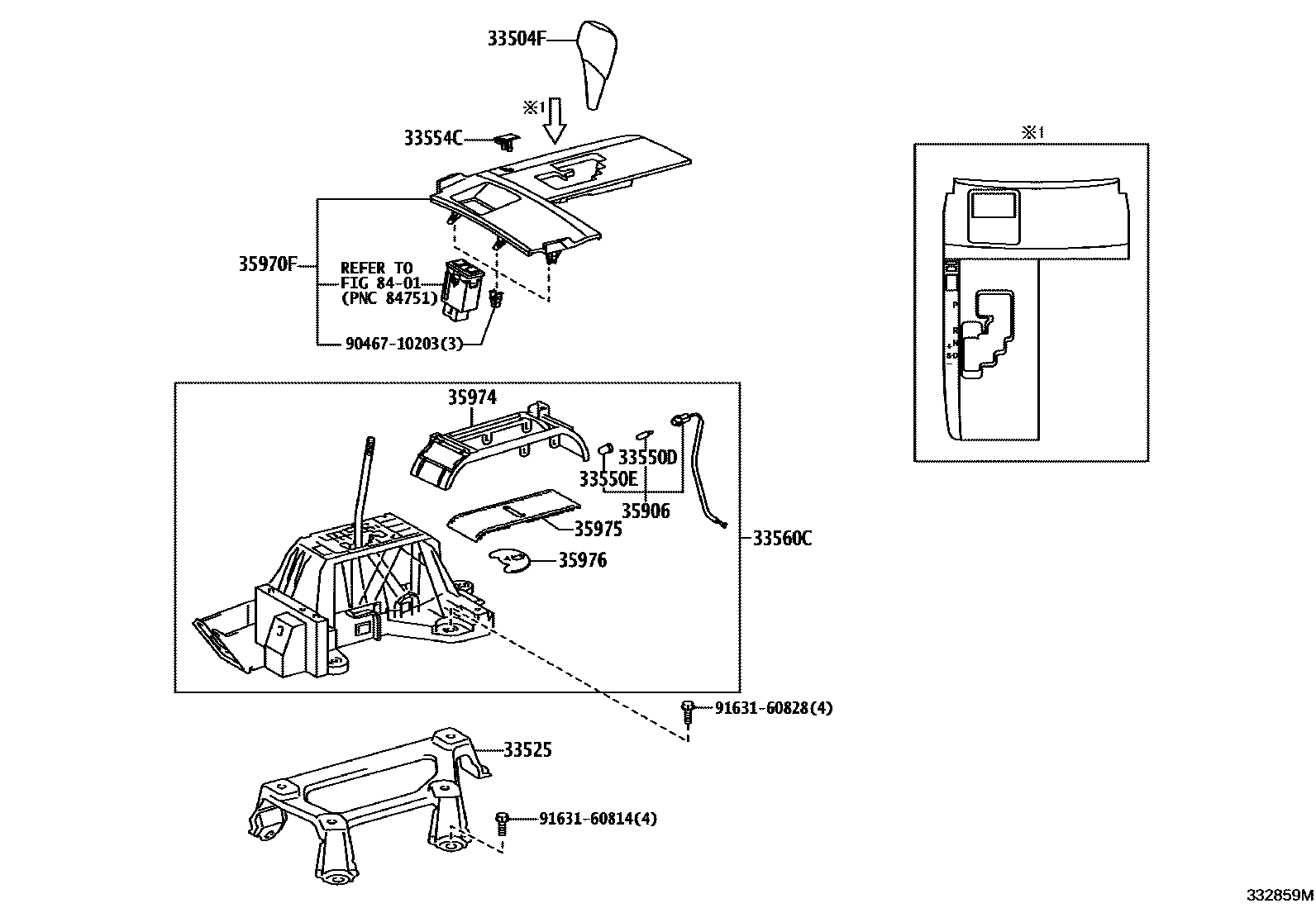

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
33525SUPPORT, SHIFT LEVER
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33560CLEVER ASSY, SHIFT, LOWER
35970FHOUSING ASSY, POSITION INDICATOR
LT.BROWN,TRIM1#,4#
BROWN,TRIM1#,4#
LT.BROWN,TRIM1#,4#
BROWN,TRIM1#,4#
SILVER,TRIM1#,4#
SILVER,TRIM1#,4#
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401
9046710203
main90467-10203
9163160814
main91631-60814
9163160828
main91631-60828
15 parts on this diagram · 4 diagrams in section
