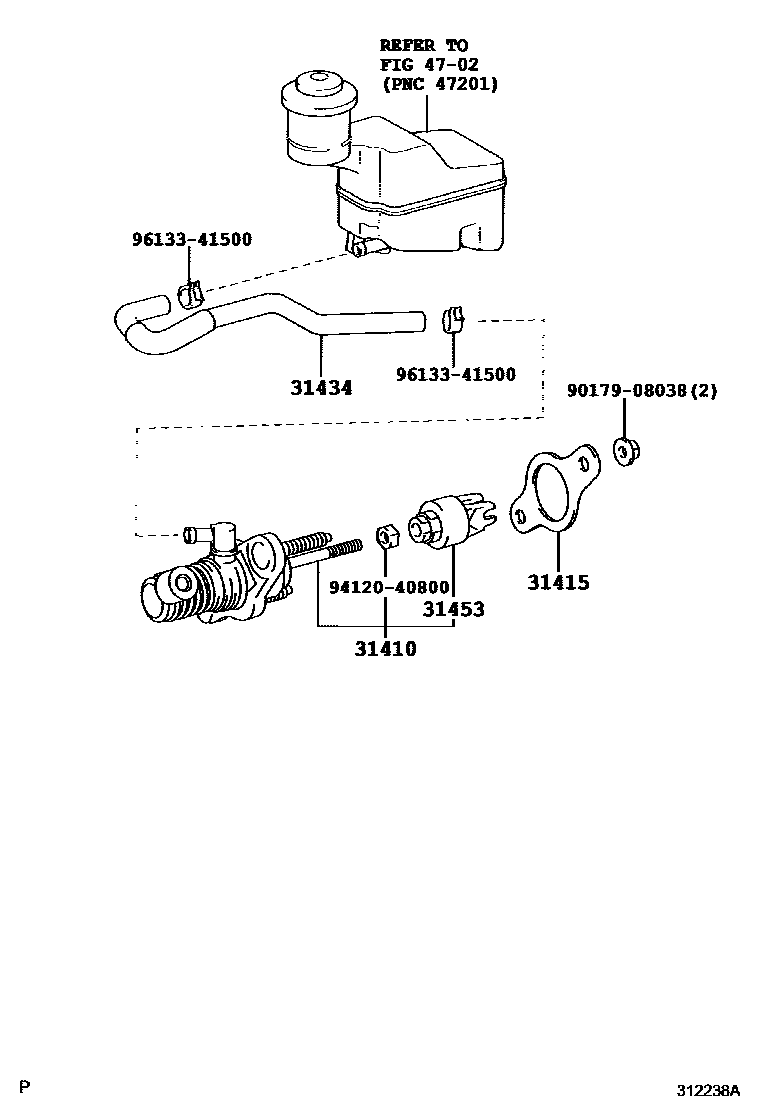

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-33030iACV40..JPP..5F200601-200901

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iACV40..JPP..5F200601-200901

31434TUBE, CLUTCH RESERVOIR

main31434-33070iACV40..JPP..5F200601

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-52010iACV40..JPP..5F200601

4702

9017908038

main90179-08038

9412040800

main94120-40800

9613341500

main96133-41500

8 parts on this diagram · 1 diagram in section
