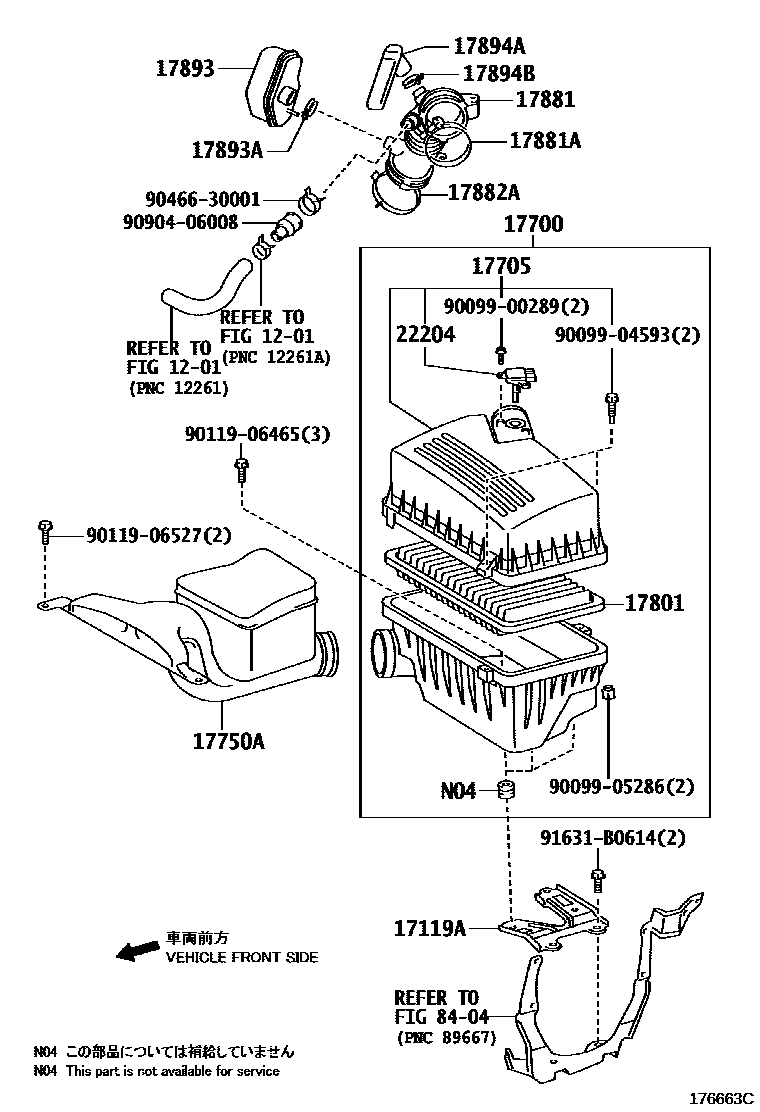

AIR CLEANER

0001 1 0002 1 0003 1

1201

17119ABRACKET, AIR CLEANER

main17119-28060i2AZFE..ACV40..JPP200601-201108

main17119-31050i2GRFE..GSV40..JPP200601-201108

17700CLEANER ASSY, AIR

main17700-28290i2AZFE..ACV40..JPP200601-200702

sub17700-28291

main17700-28291i2AZFE..ACV40..JPP200703-201103

sub17700-28292

main17700-28292i2ARFE..ASV40..JPP201104-201108

main17700-31610i2GRFE..GSV40..JPP200601-200612

sub17700-31740

main17700-31740i2GRFE..GSV40..JPP200701-201103

sub17700-31741

main17700-31741i2GRFE..GSV40..JPP201104-201108

17705CAP SUB-ASSY, AIR CLEANER

main17705-28260i2AZFE..ACV40..JPP200601-200702

sub17705-28261

main17705-28261i2AZFE..ACV40..JPP200703-201103

sub17705-28262

main17705-28262i2ARFE..ASV40..JPP201104-201108

main17705-31160i2GRFE..GSV40..JPP200601-200701

sub17705-31270

main17705-31270i2GRFE..GSV40..JPP200701-201103

sub17705-31271

main17705-31271i2GRFE..GSV40..JPP201104-201108

17750AINLET ASSY, AIR CLEANER

main17750-28020i2AZFE..ACV40..JPP200601-200901

main17750-31010i2GRFE..GSV40..JPP200601-201108

main17750-36010i2ARFE..ASV40..JPP200901-201108

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-28030i2ARFE..ASV40..JPP200601-201108

main17801-31120i2GRFE..GSV40..JPP200601-201108

17881HOSE, AIR CLEANER, NO.1

main17881-28250i2AZFE..ACV40..JPP200601-200901

main17881-31140i2GRFE..GSV40..JPP200601-201108

main17881-36060i2ARFE..ASV40..JPP200901-201108

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10880i2ARFE..ASV40..JPP200601-201108

main96111-10900i2GRFE..GSV40..JPP200601-201108

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i2AZFE..ACV40..JPP200601-200901

main90466-71001i2ARFE..ASV40..JPP200901-201108

17893RESONATOR, INTAKE AIR

main17893-28050i2AZFE..ACV40..JPP200601-200901

main17893-36030i2ARFE..ASV40..JPP200901-201108

17893ACLAMP, HOSE

main96111-10430i2AZFE..ACV40..JPP200601-201108

17894ARESONATOR, INTAKE AIR, NO.2

main17894-28100i2AZFE..ACV40..JPP200601-200901

main17894-36020i2ARFE..ASV40..JPP200901-201108

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10400i2AZFE..ACV40..JPP200601-200901

main96111-10430i2ARFE..ASV40..JPP200901-201108

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0H010i2GRFE..GSV40..JPP201104-201108

MARK 22204-0H010

main22204-0P010i2ARFE..ASV40..JPP201104-201108

MARK 22204-0P010

main22204-0T010i2GRFE..GSV40..JPP201104-201108

MARK 22204-0T010

sub22204-0P010

main22204-31010i2AZFE..ACV40..JPP200601-200702

sub22204-31020

main22204-31020i2ARFE..ASV40..JPP200701-201104

main22204-31020i2GRFE..GSV40..JPP201104-201108

MARK 22204-31020

8404

9009900289

main90099-00289

9009904593

main90099-04593

9009905286

main90099-05286

9011906465

main90119-06465

9011906527

main90119-06527

9046630001

main90466-30001

9090406008

main90904-06008

91631B0614

main91631-B0614

23 parts on this diagram · 3 diagrams in section
