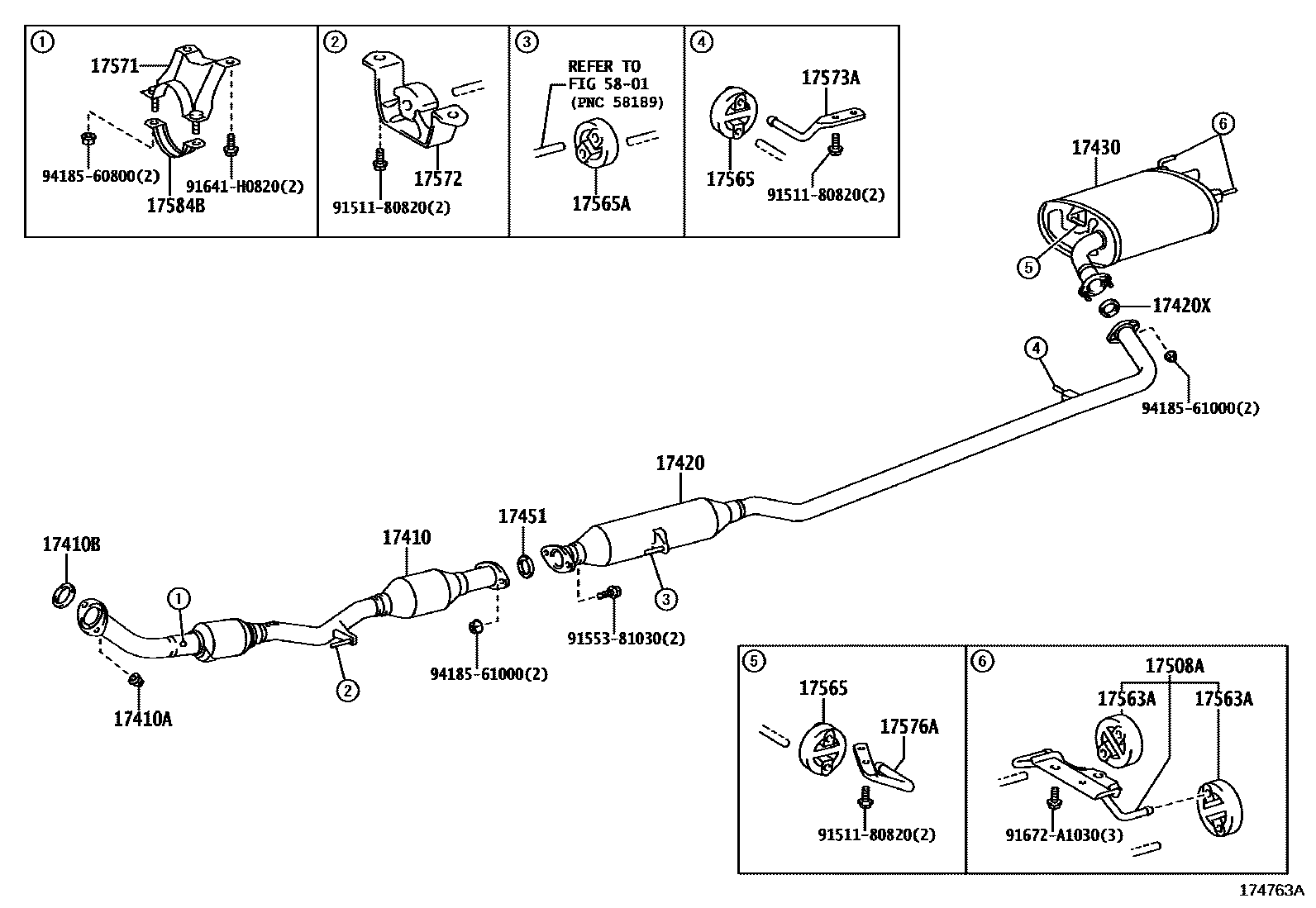

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/GA5GB5/Y
CALIFORNIA SPEC
*114=TOYOTA/X18/Y
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17451GASKET, EXHAUST PIPE
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17563ASUPPORT, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
NO.1
NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
17584BBRACKET, EXHAUST PIPE NO.1 SUPPORT
5801
9151180820
main91511-80820
9155381030
main91553-81030
91641H0820
main91641-H0820
91672A1030
main91672-A1030
9418560800
main94185-60800
9418561000
main94185-61000
23 parts on this diagram · 2 diagrams in section
