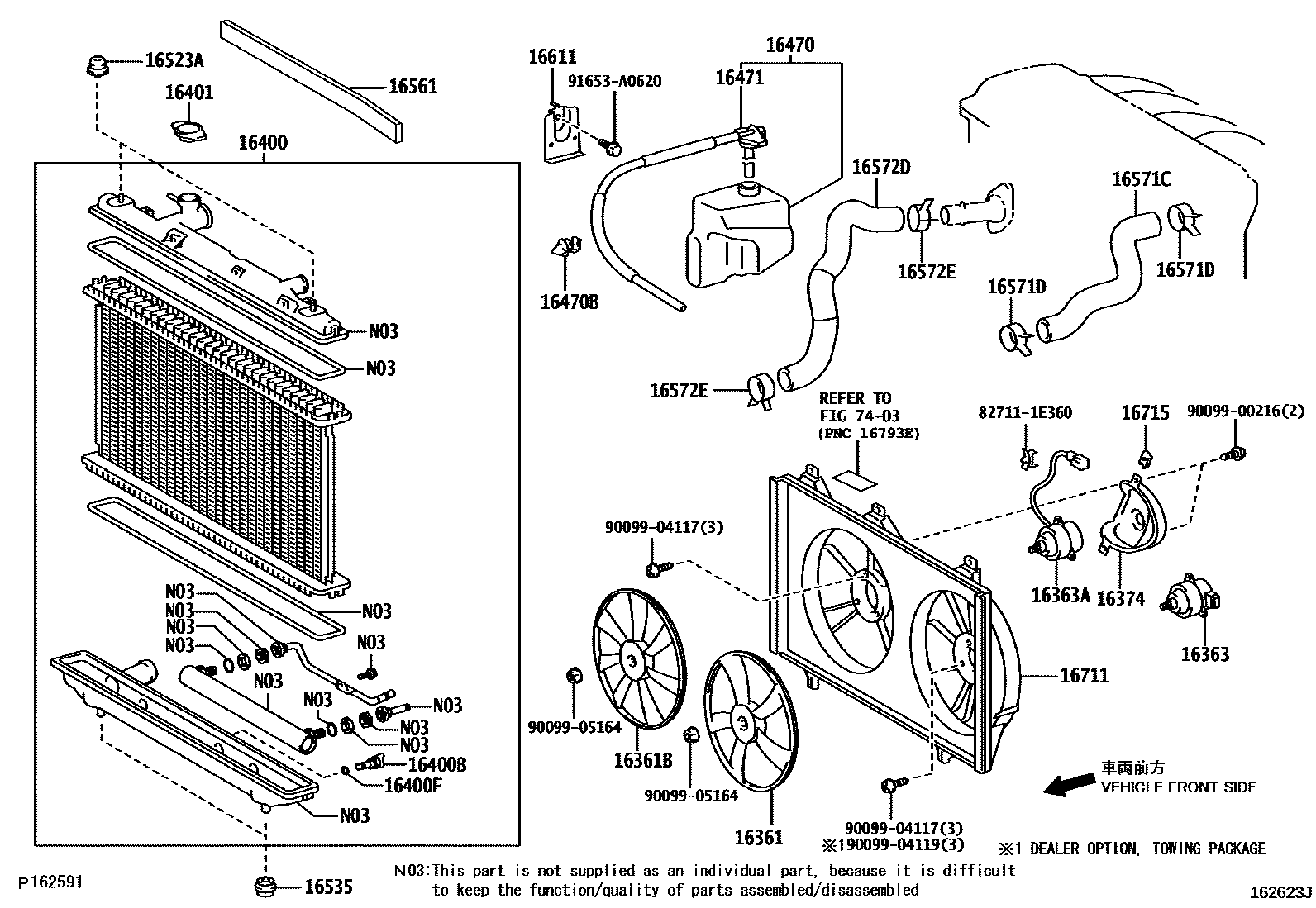

RADIATOR & WATER OUTLET
16361FAN
FAN & COUPLING-TOWING PACKAGE(DOP)
16361BFAN, NO.2
FAN & COUPLING-TOWING PACKAGE(DOP)
16363MOTOR, COOLING FAN
FAN & COUPLING-TOWING PACKAGE(DOP)
16363AMOTOR, COOLING FAN, NO.2
FAN & COUPLING-TOWING PACKAGE(DOP)
16374INSULATOR, COOLING FAN MOTOR
FAN & COUPLING-TOWING PACKAGE(DOP)
16400BPLUG, RADIATOR DRAIN COCK
FAN & COUPLING-TOWING PACKAGE(DOP)
16400FPACKING(FOR RADIATOR DRAIN COCK)
FAN & COUPLING-TOWING PACKAGE(DOP)
16401CAP SUB-ASSY, RADIATOR
FAN & COUPLING-TOWING PACKAGE(DOP)
16470TANK ASSY, RADIATOR RESERVE
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
FAN & COUPLING-TOWING PACKAGE(DOP)
16535SUPPORT, RADIATOR, LOWER
FAN & COUPLING-TOWING PACKAGE(DOP)
16561SEAL, RADIATOR TO SUPPORT, NO.1
FAN & COUPLING-TOWING PACKAGE(DOP)
16571HOSE, RADIATOR, INLET
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572HOSE, RADIATOR, OUTLET
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
FAN & COUPLING-TOWING PACKAGE(DOP)
16715BRACKET, FAN SHROUD
FAN & COUPLING-TOWING PACKAGE(DOP)
7403
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009900216
main90099-00216
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
main90099-05164
91653A0620
main91653-A0620
31 parts on this diagram · 9 diagrams in section
