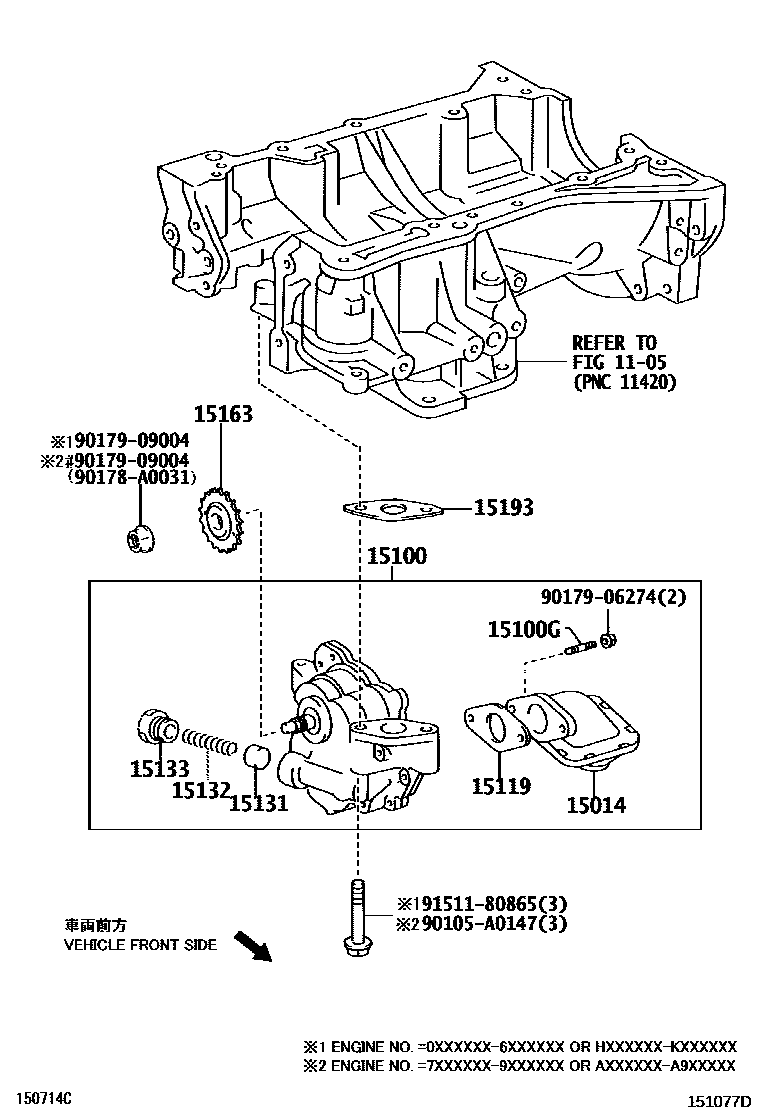

ENGINE OIL PUMP

0001 1 0002 1 0003 1

1105

15014STRAINER SET, OIL PUMP

main15014-0H010i2AZFE..ACV40..JPP200601-200901

*108

main15014-28020i2AZFE..ACV40..JPP¥2,170200601-200901

*195

15100PUMP ASSY, OIL

main15100-0H010i2AZFE..ACV40..JPP200601-200901

*108

main15100-28020i2AZFE..ACV40..JPP¥16,800200601-200901

*195

15100GBOLT,STUD(FOR OIL PUMP)

main15183-0H010i2AZFE..ACV40..JPP200601-200901

*108

main15183-28020i2AZFE..ACV40..JPP¥280200601-200901

*195

15119GASKET, OIL PUMP COVER

main15119-0H010i2AZFE..ACV40..JPP200601-200901

*108

main15119-28020i2AZFE..ACV40..JPP¥580200601-200901

*195

15131VALVE, OIL PUMP RELIEF

main15131-17010i2GRFE..GSV40..JPP¥360200601-201108

main15131-46040i2AZFE..ACV40..JPP¥310200601-200901

*195,*108

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0A020i2AZFE..ACV40..JPP¥280200601-200901

*108

main15132-46020i2AZFE..ACV40..JPP¥210200601-200901

*195

main15132-46020i2GRFE..GSV40..JPP¥210200901-201108

15133PLUG, OIL PUMP RELIEF VALVE

main15133-0H010i2AZFE..ACV40..JPP200601-200901

*108

main15133-28020i2AZFE..ACV40..JPP¥260200601-200901

*195

main15133-28020i2GRFE..GSV40..JPP¥260200901-201108

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H010i2AZFE..ACV40..JPP200601-200901

*108

main15163-28010i2AZFE..ACV40..JPP¥390200601-200901

*195

15193GASKET, OIL PUMP

main15193-0H010i2AZFE..ACV40..JPP200601-200901

*108

main15193-28010i2AZFE..ACV40..JPP¥700200601-200901

*195

main15193-31020i2GRFE..GSV40..JPP¥220200601-201108

90105A0147

main90105-A0147

90178A0031

main90178-A0031

9017906274

main90179-06274¥70

9017909004

main90179-09004¥90

9151180865

main91511-80865¥130

15 parts on this diagram · 3 diagrams in section
