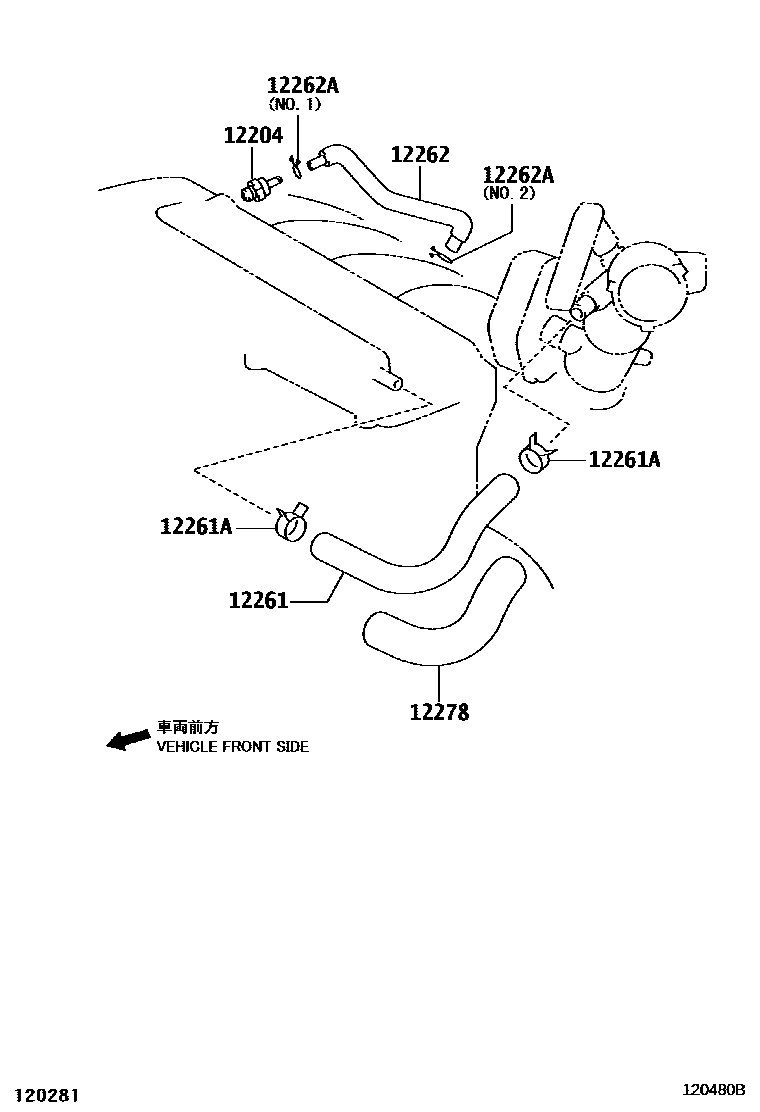

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
*195,*108
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
*195,*108
12262ACLIP(FOR VENTILATION HOSE NO.2)
*108,NO.1,*195,NO.1
*108,NO.2,*195,NO.2
12278INSULATOR, VENTILATION HOSE HEAT
6 parts on this diagram · 3 diagrams in section
