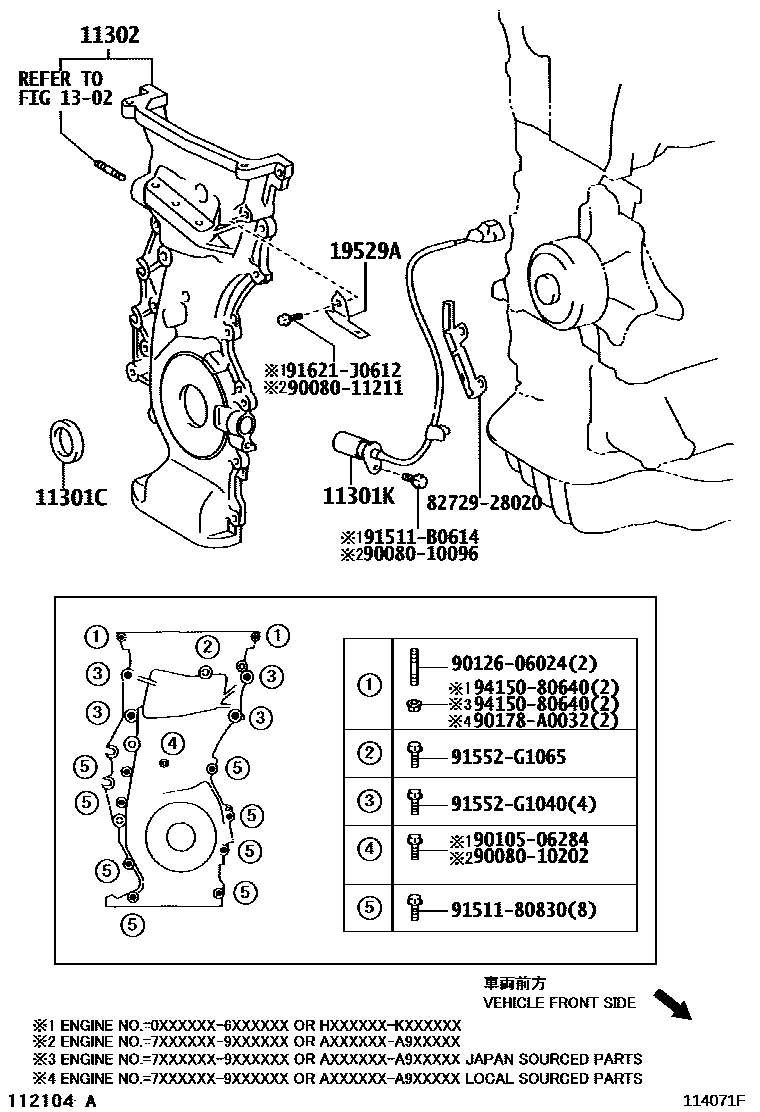

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38089i2AZFE..ACV40..JPP¥400200601-200901

*195

main90311-38098i2AZFE..ACV40..JPP¥400200601-200901

*108

main90311-42037i2GRFE..GSV40..JPP¥520200601-200904

sub90311-42045¥520

main90311-42043i2ARFE..ASV40..JPP¥400200901-201108

sub90311-42051¥400

main90311-42045i2GRFE..GSV40..JPP¥520200904-201108

11301KSENSOR, CRANK POSITION

main90080-19024i2AZFE..ACV40..JPP200601-200901

*108

main90919-05047i2AZFE..ACV40..JPP¥5,500200601-200901

*195

main90919-05070i2ARFE..ASV40..JPP¥3,870200901-201108

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0H011i2AZFE..ACV40..JPP200601-200901

(L),*108

main11310-28071i2AZFE..ACV40..JPP¥15,500200601-200901

*195,(J),*108

main11310-31020i2GRFE..GSV40..JPP¥33,300200601-201108

main11310-36030i2ARFE..ASV40..JPP200901-201108

sub11310-0V010

1302

19529ACLAMP

main19529-28010i2AZFE..ACV40..JPP¥380200601-200901

*195,*108

8272928020

main82729-28020¥300

9008010096

main90080-10096

9008010202

main90080-10202

9008011211

main90080-11211¥70

9010506284

main90105-06284¥90

9012606024

main90126-06024¥100

90178A0032

main90178-A0032

9151180830

main91511-80830¥160

91511B0614

main91511-B0614¥90

91552G1040

main91552-G1040¥120

91552G1065

main91552-G1065¥160

91621J0612

main91621-J0612¥70

9415080640

main94150-80640¥220
