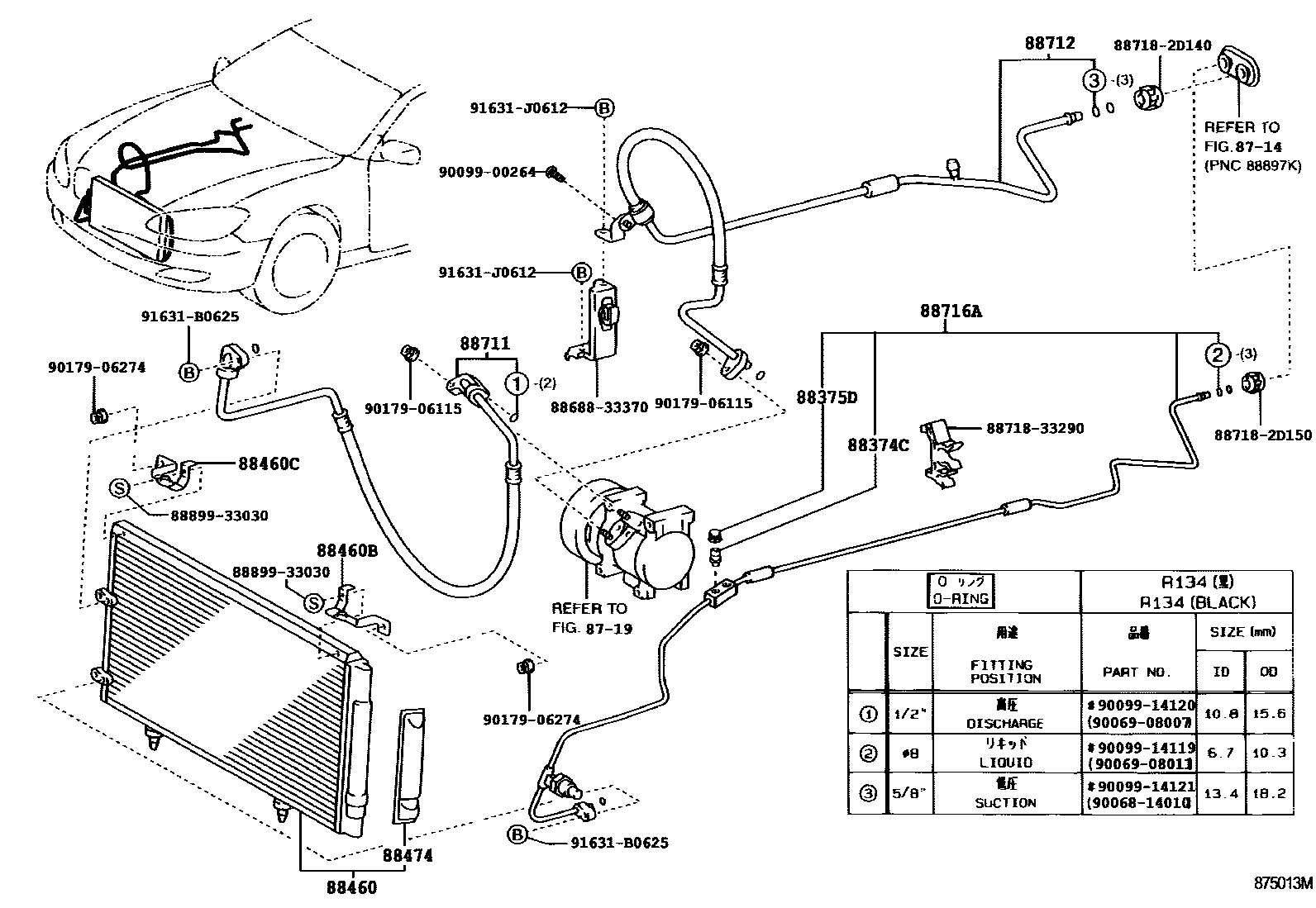

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1O-RING

8714

8719

88374CVALVE, SERVICE, NO.2

main88374-30010iACV30,MCV3#..JPP200107-200406

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iACV30,MCV3#..JPP200107-200406

88460CONDENSER ASSY, COOLER

main88460-06140iACV30,MCV3#..JPP200107-200406

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-06120iACV30,MCV3#..JPP200107-200601

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-06140iACV30,MCV3#..JPP200107-200601

88474DRYER, COOLER

main88474-47010iACV30,MCV3#..JPP200107-200406

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33160iMCV3#..JPP200107-200406

main88711-33180iACV30..JPP200107-200406

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-33270iMCV3#..JPP200107-200406

main88704-33290iACV30..JPP200107-200406

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-33260iACV30,MCV3#..JPP200107-200406

8868833370BRACKET, COOLER DIAPHRAGM

main88688-33370

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871833290PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33290

8889933030COVER, EVAPORATOR

main88899-33030

9006814010

main90068-14010

9006908007

main90069-08007

9006908011

main90069-08011

9009900264

main90099-00264

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9017906115

main90179-06115

9017906274

main90179-06274

91631B0625

main91631-B0625

91631J0612

main91631-J0612

27 parts on this diagram · 4 diagrams in section
