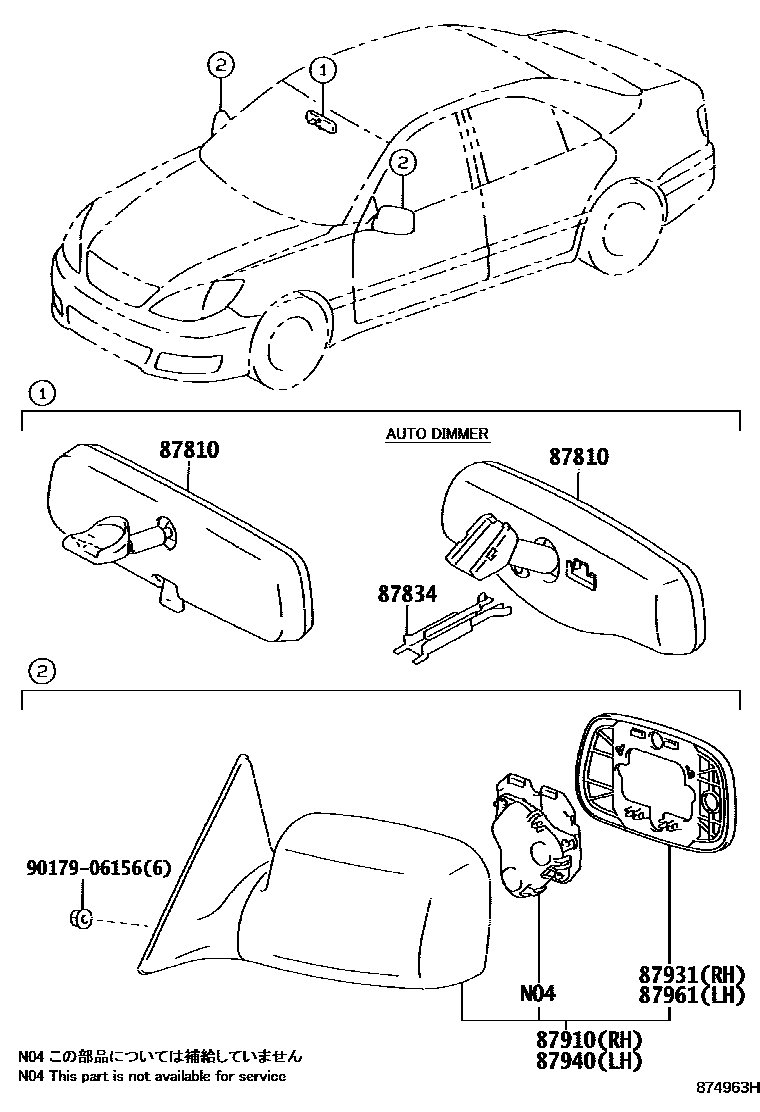

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
W(AUTO DIMMER)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
SUPER WHITE 2,040
20TH ANNIVERSARY(USA),WHITE PEARL CS.,062
SILVER ME.,1C8
GRAY M.M.,1E3
BLACK,202
DK. RED MC.,3P5
DK. RED M.M.,3Q3
BEIGE M. M.,4Q2
DK. GREEN MC.,6S7
GRAYISH GREEN M.M.OP.,6R6
DK.BLUE MC.,8Q0
BLUE M.M.,8Q2
DK.BLUE M.M.,8P4
LT.BLUE ME.,8S4
HEATER MIRROR,SUPER WHITE 2,040
20TH ANNIVERSARY(USA) & W(HEATER),WHITE PEARL CS.,062
HEATER MIRROR,SILVER ME.,1C8
HEATER MIRROR,GRAY M.M.,1E3
HEATER MIRROR,BLACK,202
HEATER MIRROR,DK. RED MC.,3P5
HEATER MIRROR,DK. RED M.M.,3Q3
HEATER MIRROR,BEIGE M. M.,4Q2
HEATER MIRROR,DK. GREEN MC.,6S7
HEATER MIRROR,GRAYISH GREEN M.M.OP.,6R6
HEATER MIRROR,DK.BLUE MC.,8Q0
HEATER MIRROR,BLUE M.M.,8Q2
HEATER MIRROR,DK.BLUE M.M.,8P4
HEATER MIRROR,LT.BLUE ME.,8S4
87931OUTER MIRROR, RH
HEATER MIRROR
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
SUPER WHITE 2,040
20TH ANNIVERSARY(USA),WHITE PEARL CS.,062
SILVER ME.,1C8
GRAY M.M.,1E3
BLACK,202
DK. RED MC.,3P5
DK. RED M.M.,3Q3
BEIGE M. M.,4Q2
DK. GREEN MC.,6S7
GRAYISH GREEN M.M.OP.,6R6
DK.BLUE MC.,8Q0
BLUE M.M.,8Q2
DK.BLUE M.M.,8P4
LT.BLUE ME.,8S4
HEATER MIRROR,SUPER WHITE 2,040
20TH ANNIVERSARY(USA) & W(HEATER),WHITE PEARL CS.,062
HEATER MIRROR,SILVER ME.,1C8
HEATER MIRROR,GRAY M.M.,1E3
HEATER MIRROR,BLACK,202
HEATER MIRROR,DK. RED MC.,3P5
HEATER MIRROR,DK. RED M.M.,3Q3
HEATER MIRROR,BEIGE M. M.,4Q2
HEATER MIRROR,DK. GREEN MC.,6S7
HEATER MIRROR,GRAYISH GREEN M.M.OP.,6R6
HEATER MIRROR,DK.BLUE MC.,8Q0
HEATER MIRROR,BLUE M.M.,8Q2
HEATER MIRROR,DK.BLUE M.M.,8P4
HEATER MIRROR,LT.BLUE ME.,8S4
87961MIRROR OUTER, LH
HEATER MIRROR
9017906156
main90179-06156
7 parts on this diagram · 1 diagram in section
