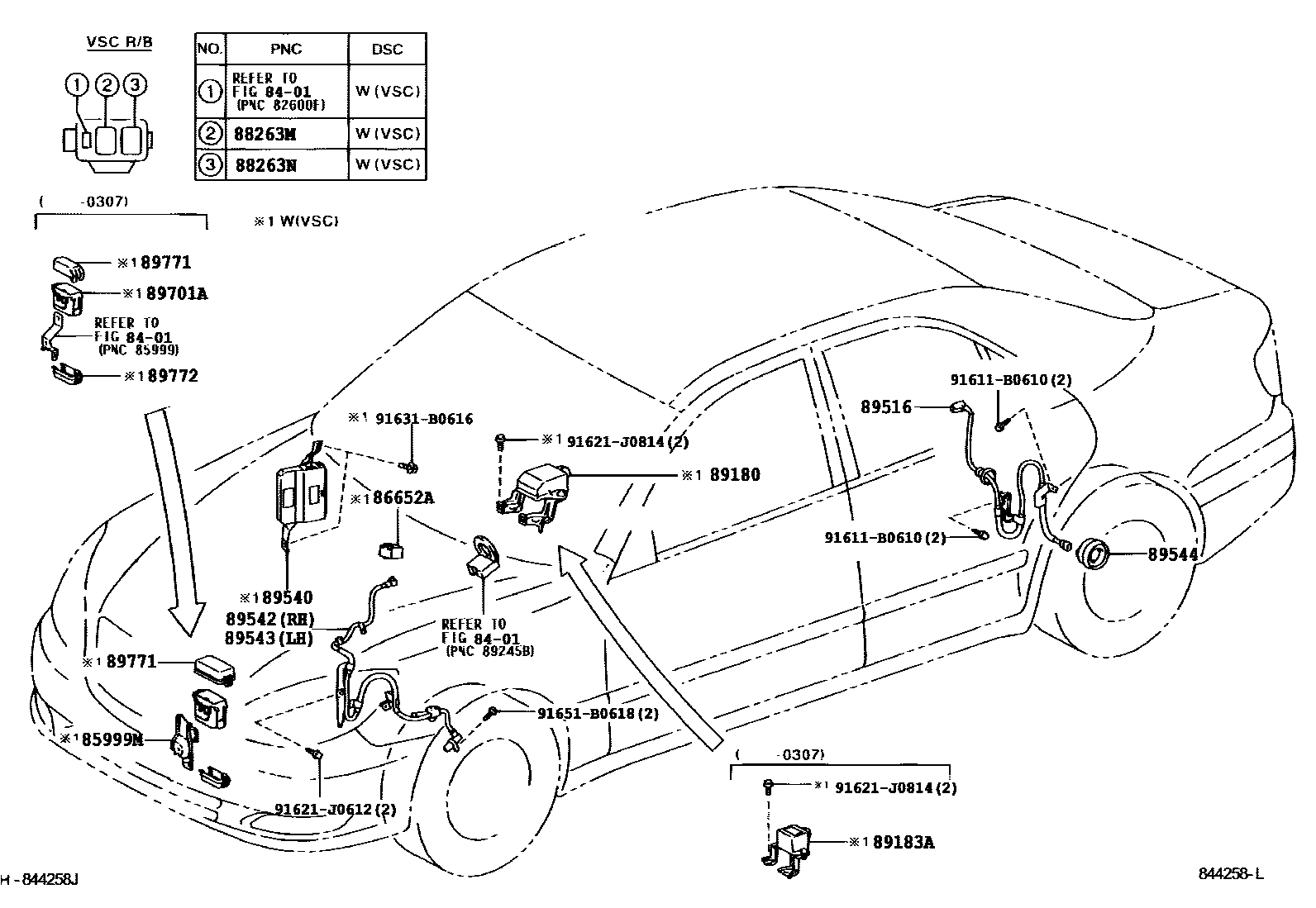

ABS & VSC

8401

85999MBRACKET, RELAY

main85999-33180iACV30,MCV3#..JPP200307-200406

86652ABUZZER ASSY, SKID CONTROL

main86652-51010iMCV3#..JPP200107-200406

88263MRELAY, ABS SOLENOID

main88263-32070iMCV30..JPP200107-200301

W(VSC)

main88263-32070iMCV3#..JPP200301-200406

88263NRELAY, ABS MOTOR

main88263-21010iMCV3#..JPP200307-200406

main88263-32070iMCV30..JPP200107-200301

W(VSC)

main88263-32070iMCV30..JPP200301-200307

89180SENSOR ASSY, YAWRATE

main89180-33030iMCV3#..JPP200307-200406

89183ASENSOR, YAWRATE

main89180-33020iMCV30..JPP200107-200307

89516WIRE, SKID CONTROL SENSOR

main89516-33010iACV30,MCV3#..JPP200107-200406

RH

main89516-33020iACV30,MCV3#..JPP200107-200406

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-33300iMCV30..JPP200107-200109

sub89540-33301

main89540-33301iMCV30..JPP200109-200307

89542SENSOR, SPEED, FRONT RH

main89542-33070iACV30,MCV3#..JPP200107-200406

89543SENSOR, SPEED, FRONT LH

main89543-33070iACV30,MCV3#..JPP200107-200406

89544SENSOR, SKID CONTROL

main89544-48010iACV30,MCV3#..JPP200107-200601

89701ABLOCK SUB-ASSY, ABS RELAY

main89701-12020iMCV30..JPP200107-200307

89771COVER, ABS RELAY BLOCK, UPPER

main89771-21020iMCV3#..JPP200307-200406

main89771-33010iMCV30..JPP200107-200307

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12020iMCV30..JPP200107-200307

91611B0610

main91611-B0610

91621J0612

main91621-J0612

91621J0814

main91621-J0814

91631B0616

main91631-B0616

91651B0618

main91651-B0618

20 parts on this diagram · 1 diagram in section
