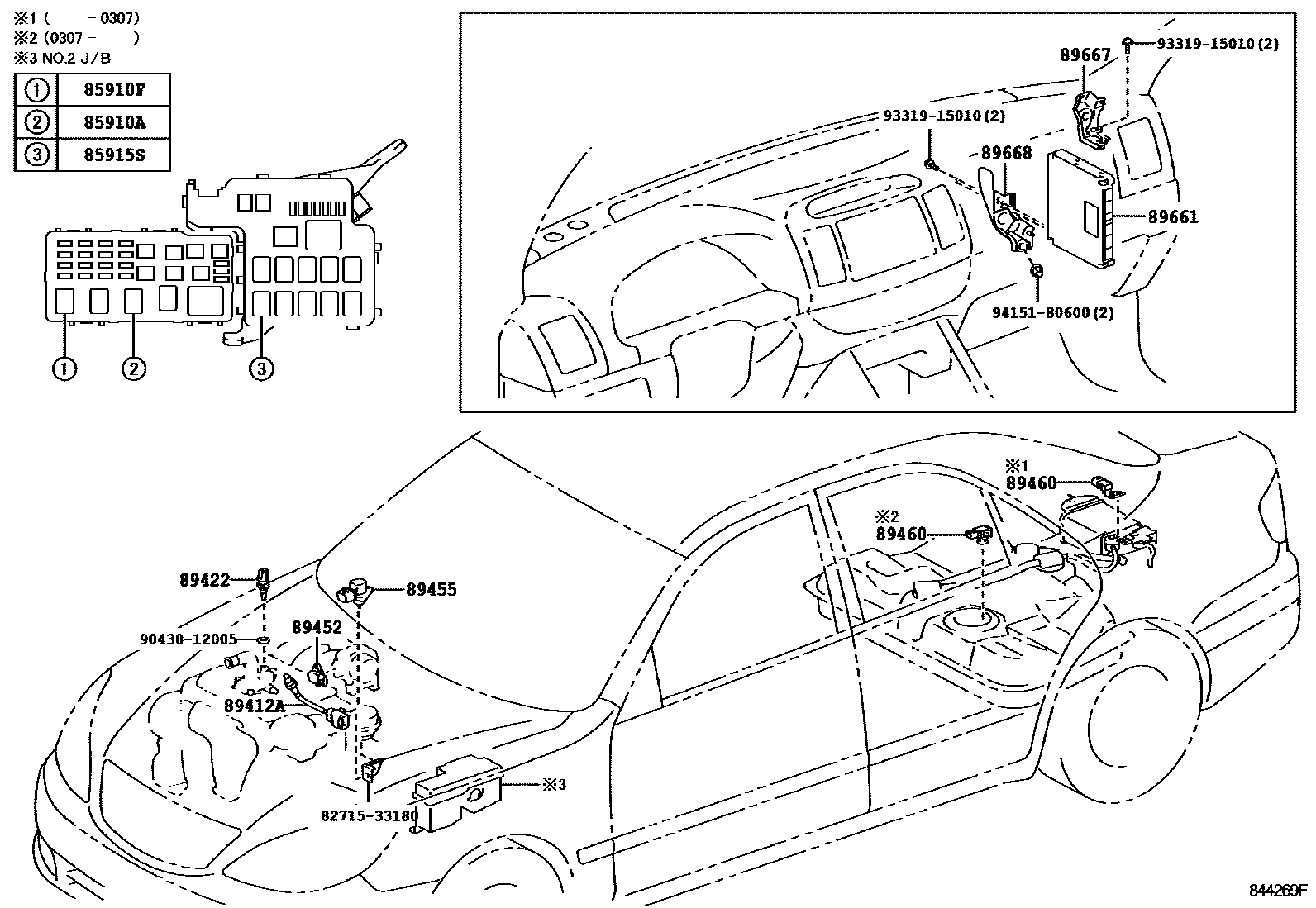

ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
89412ASENSOR, E.G.R GAS TEMPERATURE
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
(L)
P/N LABEL=8942233020
(J)
P/N LABEL=8942235010
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89455SENSOR, EGR VALVE POSITION
89460SENSOR ASSY, VAPOR PRESSURE
(L)
(J)
CALIFORNIA SPEC
CARIFORNIA SPEC
89661COMPUTER, ENGINE CONTROL
(L)
(L)
(L)
PART NUMBER LABEL=89661-0X040,(L)
sub89661-0X041
sub89661-33781
sub89661-33A11
sub89661-33A81
(J)
sub89661-33D51
PART NUMBER LABEL=89661-3T530,(J)
sub89661-3T531
sub89661-3T762
PART NUMBER LABEL=89661-3T770,(J)
sub89661-3T771
PART NUMBER LABEL=89666-06220,(L)
sub89666-06221
(L)
(J)
(J)
89667BRACKET, ENGINE CONTROL COMPUTER
(L)
(L)
(J)
(J)
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
(L)
(L)
(J)
(J)
8271533180BRACKET,WIRING HARNESS CLAMP
main82715-33180
9043012005
main90430-12005
9331915010
main93319-15010
9415180600
main94151-80600
15 parts on this diagram · 3 diagrams in section
