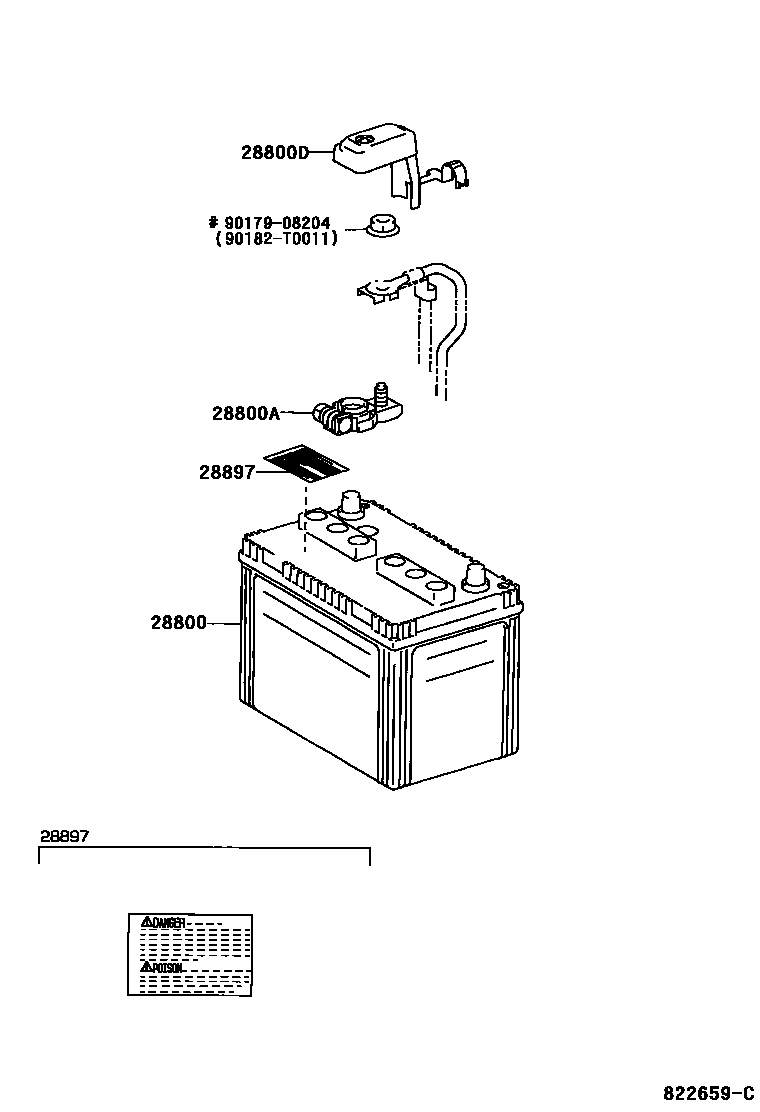

BATTERY & BATTERY CABLE

28800BATTERY

main28800-16151i2AZFE,1MZFE..ACV30,MCV30..JPP200107-200406

55D23L,FURUKAWA

sub28800-43262

main28800-43262i2AZFE,1MZFE..ACV30,MCV30..JPP200107-200406

55D23L,MATSUSHITA

main28800-64132i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..JPP200107-200406

80D26L

sub28800-54020

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..JPP200107-200406

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..JPP200107-200406

28897PLATE, BATTERY CAUTION

main28897-46020i1MZFE,3MZFE..MCV3#..JPP;2AZFE..ACV30..JPP..(LE,XLE)200107-200406

9017908204

main90179-08204

90182T0011

main90182-T0011

6 parts on this diagram · 1 diagram in section
