ACCELERATOR LINK

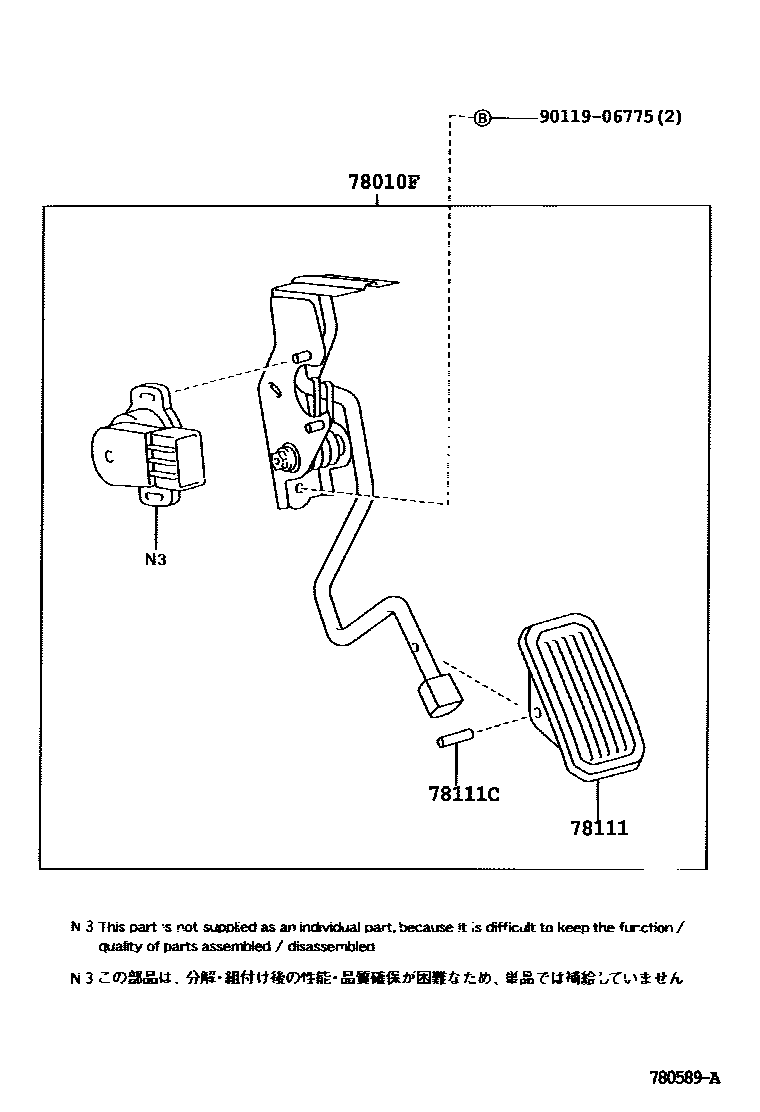

Parts diagram

78010FPEDAL ASSY, ACCELERATOR

main78010-33010i200107-200406

78111PEDAL, ACCELERATOR

main78111-33010i200107-200406

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019i200107-200406

9011906775

main90119-06775

4 parts on this diagram · 2 diagrams in section
