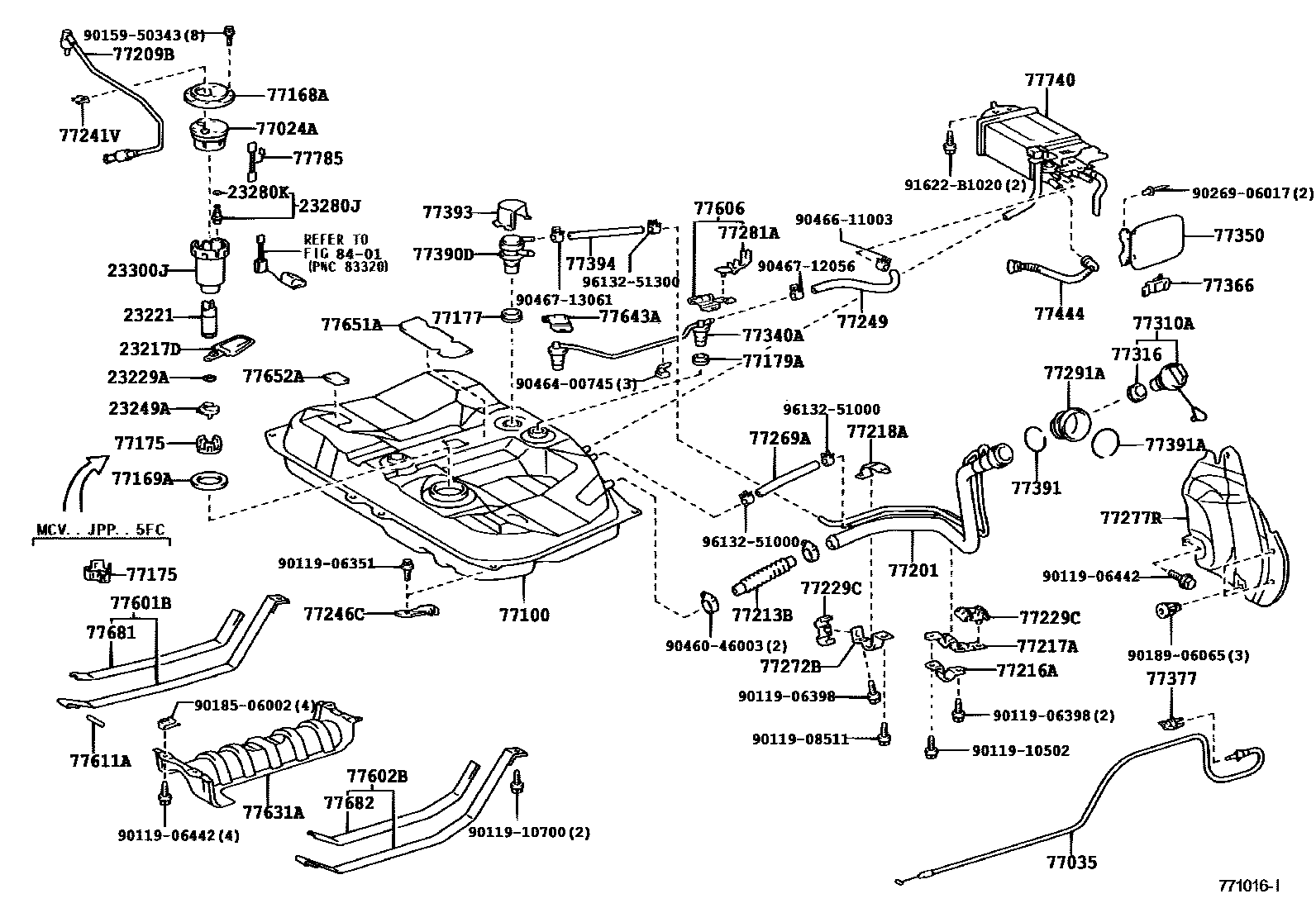

FUEL TANK & TUBE

0001 1 0002 1CALIFORNIA SPEC 0003 1 0004 1 0005 1CALIFORNIA SPEC 0006 1

23217DFILTER, FUEL PUMP

main23217-0C010i1MZFE..MCV30..JPP..SE..5FC200107-200406

23221PUMP, FUEL

main23221-0A030i2AZFE..ACV30..JPP200107-200406

main23221-0A040i1MZFE,3MZFE..MCV3#..JPP200301-200406

23229ACLIP(FOR FUEL PUMP FILTER)

main23219-03010i2AZFE,1MZFE,3MZFE..ACV30,MCV3#..JPP200107-200406

23249ARUBBER, CUSHION(FOR FUEL PUMP)

main23249-46180i2AZFE,3MZFE..ACV30,MCV31..JPP;1MZFE..MCV30..JPP..(LE,XLE)..5FC200107-200406

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-20060i1MZFE,3MZFE..MCV3#..JPP200406

CALIFORNIA SPEC

main23280-20060i1MZFE..MCV30..JPP..SE200301-200406

main23280-22010i2AZFE..ACV30..JPP200107-200406

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07020i2AZFE,3MZFE..ACV30,MCV31..JPP;1MZFE..MCV30..JPP..(LE,XLE)..5FC200107-200406

23300JFILTER ASSY, FUEL

main23300-21010i1MZFE..MCV30..JPP200107-200406

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-33030iACV30,MCV30..JPP200107-200307

main77024-33050iACV30..JPP..4FC200212-200406

CALIFORNIA SPEC

main77024-33050iACV30,MCV3#..JPP..(5F,5FC)200307-200406

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-33100iACV30,MCV3#..JPP200107-200406

77100TANK ASSY, FUEL

main77001-33110iACV30,MCV30..JPP200107-200208

sub77001-33160

main77001-33140iACV30..JPP..5FC200212-200406

CALIFORNIA SPEC

sub77001-33141

main77001-33160iACV30,MCV30..JPP200208-200307

sub77001-33161

main77001-33190iACV30,MCV3#..JPP200307-200406

sub77001-33191

77168APLATE, FUEL TANK VENT TUBE SET

main77168-33050iACV30,MCV30..JPP200107-200307

main77168-33060iACV30..JPP..4FC200212-200406

CALIFORNIA SPEC

main77168-33060iMCV30..JPP200307-200406

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iACV30,MCV3#..JPP200107-200406

main77169-33050iACV30..JPP..5FC200212-200406

CALIFORNIA SPEC

77175SUPPORT, FUEL SUCTION, NO.2

main77175-33020iMCV31..JPP;ACV30,MCV30..JPP..(4FC,5F)200107-200406

77177GASKET, CHECK VALVE

main77177-33010iACV30,MCV30..JPP..(4FC,5F)200107-200307

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010iACV30,MCV30..JPP..(4FC,5F)200107-200307

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-33191iACV30,MCV30..JPP200107-200307

main77201-33240iACV30..JPP..5FC200212-200406

CALIFORNIA SPEC

main77201-33250iACV30,MCV3#..JPP200307-200406

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-33040iACV30,MCV30..JPP200107-200307

main77209-33070iACV30,MCV3#..JPP200307-200406

main77209-33070iACV30..JPP..4FC200212-200406

CALIFORNIA SPEC

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-33050iACV30,MCV30..JPP200107-200307

L=182

sub77213-33120

main77213-33050iACV30,MCV30..JPP200107-200307

L=240

sub77213-33120

main77213-33100iACV30,MCV3#..JPP200307-200406

sub77213-33101

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-33030iACV30..JPP..4FC200212-200406

CALIFORNIA SPEC

main77216-33030iACV30,MCV3#..JPP..(5F,5FC)200307-200406

main77216-41020iACV30,MCV30..JPP200107-200307

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-33030iACV30,MCV3#..JPP..(5F,5FC)200307-200406

main77217-33030iACV30..JPP..4FC200212-200406

CALIFORNIA SPEC

main77217-41010iACV30,MCV30..JPP200107-200307

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-33020iACV30,MCV30..JPP200107-200307

main77218-33050iACV30..JPP..4FC200212-200306

CALIFORNIA SPEC

main77218-33051iACV30..JPP..5FC200306-200406

CALIFORNIA SPEC

sub77218-33052

sub77201-33240

sub77201-33261

sub77201-33311

main77218-33060iACV30,MCV3#..JPP200307-200406

sub77218-33061

sub77201-33250

sub77201-33271

77229CCLAMP, BREATHER TUBE

main77229-33040iACV30,MCV30..JPP200107-200307

main77229-33060iACV30,MCV3#..JPP..(5F,5FC)200307-200406

main77229-33060iACV30..JPP..4FC200212-200406

CALIFORNIA SPEC

77241VCLIP, TUBE JOINT

main77241-33011iACV30,MCV30..JPP200107-200406

77246CSUPPORT, FUEL MAIN TUBE

main77246-33020iMCV31..JPP;ACV30,MCV30..JPP..(4FC,5F)200107-200406

77249HOSE, FUEL EMISSION

main95327-06030iACV30,MCV30..JPP..(4FC,5F)200107-200307

77269AHOSE, FUEL TANK BREATHER

main77269-33010iACV30,MCV30..JPP200107-200307

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-33010iACV30,MCV30..JPP200107-200307

main77272-33020iACV30,MCV3#..JPP200307-200406

main77272-33030iACV30..JPP..4FC200212-200406

CALIFORNIA SPEC

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-33070iACV30,MCV3#..JPP200107-200406

77281ACLAMP, FUEL FILLER PIPE

main77281-33010iACV30,MCV30..JPP..(4FC,5F)200107-200307

main77281-33020iACV30..JPP..4FC200212-200406

CALIFORNIA SPEC

main77281-33020iACV30..JPP..5FC200406

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-33040iACV30,MCV3#..JPP200107-200406

77310ACAP ASSY, FUEL TANK

main77300-33010iACV30,MCV30..JPP200107-200111

sub77300-33051

main77300-33030iACV30..JPP..4FC200212-200308

CALIFORNIA SPEC

sub77300-47010

main77300-33050iACV30,MCV30..JPP200111-200201

sub77300-33051

main77300-33051iACV30,MCV30..JPP200201-200208

sub77300-33052

main77300-33052iACV30,MCV30..JPP200208-200307

sub77300-33070

main77300-33070iACV30,MCV3#..JPP200307-200406

sub77300-47010

main77300-47010iACV30..JPP..5FC200308-200406

CALIFORNIA SPEC

77316GASKET, FUEL TANK CAP

main77316-33010iACV30,MCV30..JPP200107-200111

sub77316-33041

main77316-33020iACV30..JPP..5FC200212-200406

CALIFORNIA SPEC

main77316-33040iACV30,MCV30..JPP200111-200201

sub77316-33041

main77316-33041iACV30,MCV30..JPP200201-200208

sub77316-33042

main77316-33042iACV30,MCV3#..JPP200208-200406

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-33020iACV30,MCV30..JPP200107-200307

77350LID ASSY, FUEL FILLER OPENING

main77350-33080iACV30,MCV3#..JPP200107-200406

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-33030iACV30,MCV3#..JPP200308-200406

main77360-35010iACV30,MCV3#..JPP200107-200308

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iACV30,MCV3#..JPP200107-200406

77390DVALVE ASSY, FUEL TANK OVER FILL CHECK

main77390-33011iACV30,MCV30..JPP..(4FC,5F)200107-200307

77391RING, FUEL INLET BOX

main77391-12020iACV30,MCV3#..JPP200107-200406

77391ARING, FUEL INLET BOX

main77391-12040iACV30,MCV3#..JPP200107-200406

77393PROTECTOR, CHECK VALVE

main77393-52010iACV30,MCV30..JPP200107-200307

77394HOSE, VALVE TO FUEL FILLER PIPE

main95337-08034iACV30,MCV30..JPP..(4FC,5F)200107-200307

L=340(*H,L=320)

77444HOSE, FUEL TANK VENT

main77404-33010iACV30,MCV30..JPP200107-200307

main77404-33040iACV30..JPP..5FC200212-200406

CALIFORNIA SPEC,NO.1

main77404-33060iACV30,MCV3#..JPP200212-200406

CALIFORNIA SPEC,NO.2

main77404-33060iACV30,MCV3#..JPP200307-200406

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33040iACV30,MCV3#..JPP200107-200406

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33050iACV30,MCV3#..JPP200107-200406

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-33010iACV30,MCV30..JPP200107-200307

77611APIN (FOR FUEL TANK BAND)

main90250-08019iACV30,MCV3#..JPP200107-200406

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-33021iACV30,MCV3#..JPP200107-200406

77643APROTECTOR, FUEL TANK, NO.3

main77643-33010iACV30,MCV30..JPP200107-200307

sub77643-33030

77651ACUSHION, FUEL TANK, NO.1

main77651-33020iACV30,MCV30..JPP200107-200307

main77652-33020iACV30..JPP..4FC200212-200406

CALIFORNIA SPEC

77652ACUSHION, FUEL TANK, NO.2

main77652-33020iACV30,MCV3#..JPP200107-200406

77681SEAT, FUEL TANK BAND, RH

main77681-32060iACV30,MCV3#..JPP200107-200406

77682SEAT, FUEL TANK BAND, LH

main77681-32060iACV30,MCV3#..JPP200107-200406

77740CANISTER ASSY, CHARCOAL

main77740-33130iACV30,MCV30..JPP200107-200111

sub77740-33131

main77740-33131iACV30,MCV30..JPP200111-200307

main77740-33141iACV30..JPP..4FC200212-200406

CALIFORNIA SPEC

main77740-33150iACV30,MCV3#..JPP200307-200406

77785HARNESS, FUEL PUMP

main77785-52020iACV30,MCV3#..JPP200107-200406

8401

9011906351

main90119-06351

9011906398

main90119-06398

9011906442

main90119-06442

9011908511

main90119-08511

9011910502

main90119-10502

9011910700

main90119-10700

9015950343

main90159-50343

9018506002

main90185-06002

9018906065

main90189-06065

9026906017

main90269-06017

9046046003

main90460-46003

9046400745

main90464-00745

9046611003

main90466-11003

9046712056

main90467-12056

9046713061

main90467-13061

91622B1020

main91622-B1020

9613251000

main96132-51000

9613251300

main96132-51300

73 parts on this diagram · 6 diagrams in section
