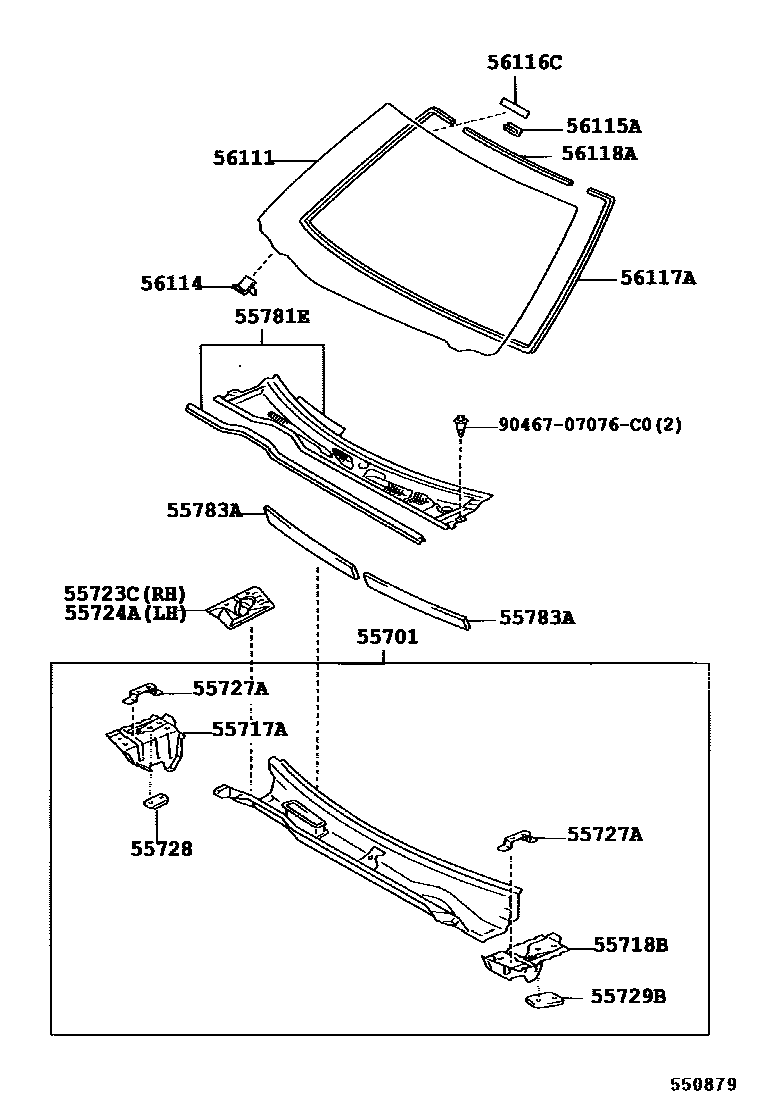

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-33200iACV30,MCV3#..JPP200107-200406

55717APANEL, COWL TOP SIDE, INNER RH

main55717-33030iACV30,MCV30..JPP200107-200203

sub55717-33031

main55717-33031iACV30,MCV3#..JPP200203-200406

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-33030iACV30,MCV3#..JPP200107-200406

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-33030iACV30,MCV3#..JPP200107-200406

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-33030iACV30,MCV3#..JPP200107-200406

55727ARETAINER, FRONT PANEL UPPER REINFORCEMENT

main55727-33030iACV30,MCV3#..JPP200107-200406

55728REINFORCEMENT, HOOD STOPPER, RH

main55728-33020iACV30,MCV3#..JPP200107-200406

55729BREINFORCEMENT, HOOD STOPPER, LH

main55729-33020iACV30,MCV3#..JPP200107-200406

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-33030iACV30,MCV3#..JPP200107-200406

55783APAD, COWL TOP SILENCER

main55783-33040iACV30,MCV3#..JPP200107-200406

56111GLASS, WINDSHIELD

main56101-33410iACV30,MCV3#..JPP200107-200406

*UVCTT,T=4.7,GREEN,W(MIRROR W/AUTO DIMMER)

main56101-33460iACV30,MCV3#..JPP..(LE,SE)200107-200406

*UVCTT,T=4.7,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-22050iACV30,MCV3#..JPP200107-200406

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iACV30,MCV3#..JPP200107-200406

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iACV30,MCV3#..JPP200107-200406

56117ADAM, WINDOW GLASS ADHESIVE

main56117-33060iACV30,MCV3#..JPP200107-200406

L=3454

sub56117-64010

main56117-64010iACV30,MCV3#..JPP200211-200406

*D,L=3454

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-52040iACV30,MCV3#..JPP200211-200406

*D,L=685

sub56117-74010

main56118-33050iACV30,MCV3#..JPP200107-200406

L=685

sub56117-52040

9046707076C0

main90467-07076C0

17 parts on this diagram · 1 diagram in section
