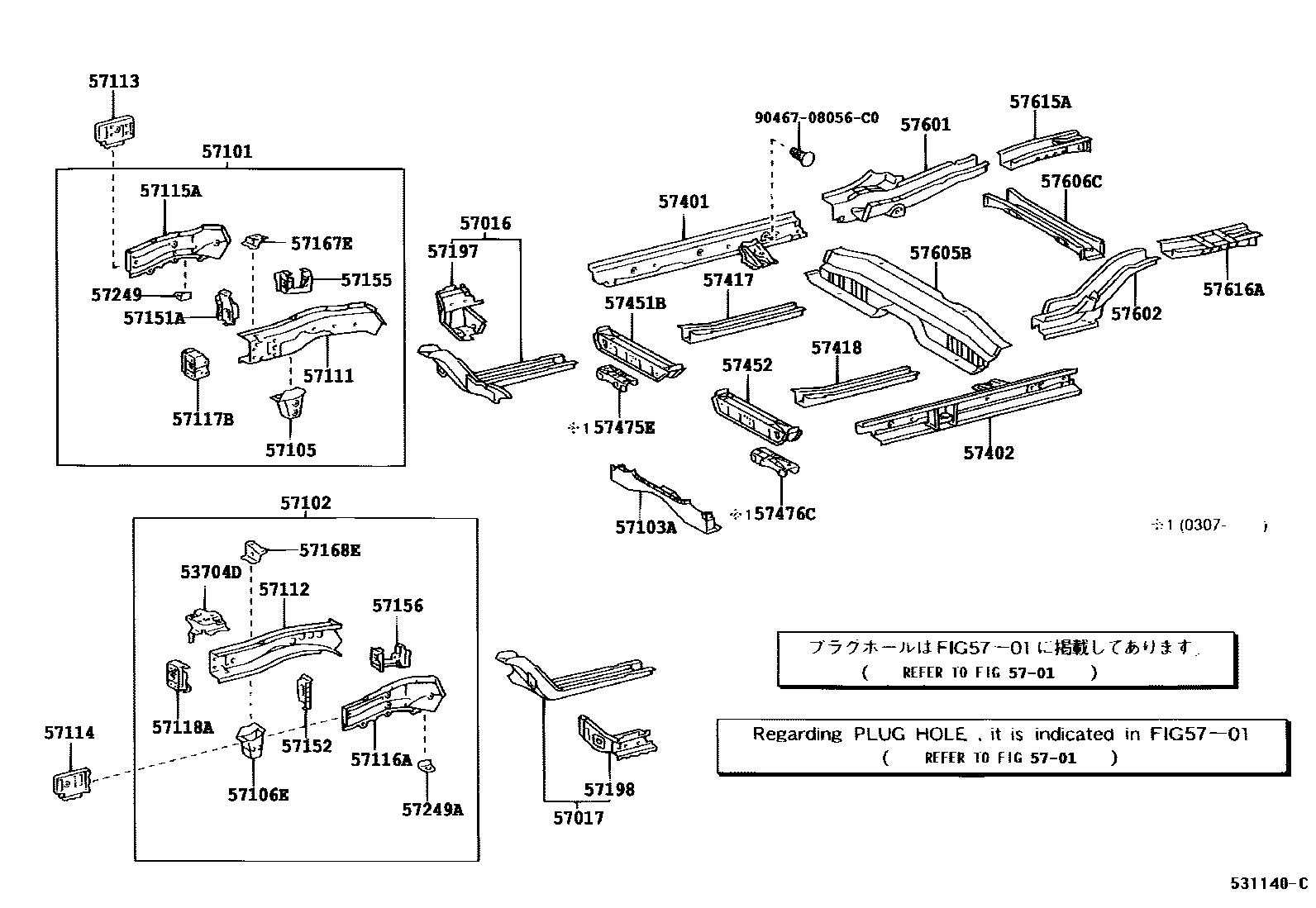

FLOOR SIDE MEMBER
53704DSUPPORT SUB-ASSY, BATTERY, LH
5701
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
sub57016-33031
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
sub57017-33042
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57167EGUSSET, FRONT CROSSMEMBER SIDE, RH
57168EGUSSET, FRONT CROSSMEMBER SIDE, LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
sub57078-33041
57249BRACKET, FLEXIBLE HOSE, NO.1
57249ABRACKET, FREXIBLE HOUSE, NO.1, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57475EPLATE, FRONT FLOOR CROSSMEMBER, RH
57476CPLATE, FRONT FLOOR CROSSMEMBER, LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
9046708056C0
main90467-08056C0
42 parts on this diagram · 1 diagram in section
