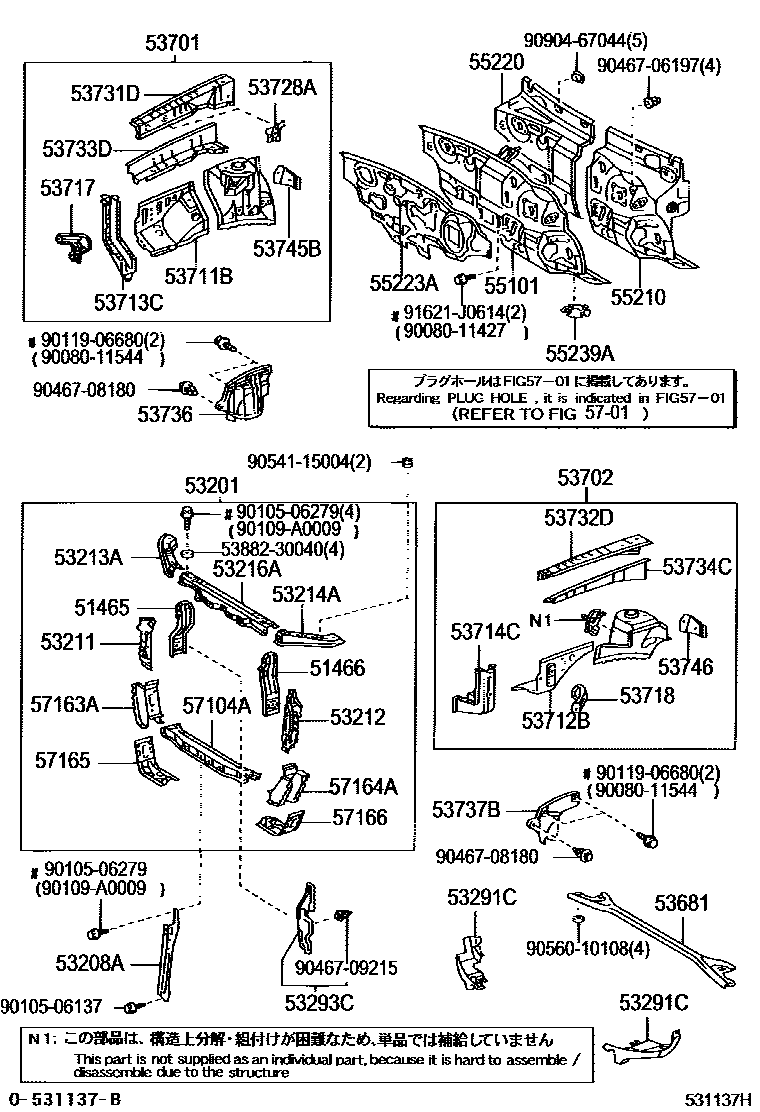

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

51465BRACE, RADIATOR SUPPORT, UPPER RH

main51465-33040iACV30,MCV3#..JPP200107-200406

51466BRACE, RADIATOR SUPPORT, UPPER LH

main51466-33040iACV30,MCV3#..JPP200107-200406

53201SUPPORT SUB-ASSY, RADIATOR

main53201-33905iACV30,MCV3#..JPP200107-200406

sub53201-33909

sub53213-33010

sub53214-33010

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-33050iACV30,MCV3#..JPP200107-200406

53211SUPPORT, RADIATOR, RH

main53211-33070iACV30,MCV3#..JPP200107-200406

53212SUPPORT, RADIATOR, LH

main53212-33070iACV30,MCV3#..JPP200107-200406

53213ASUPPORT, RADIATOR, UPPER RH

main53213-33010iACV30,MCV3#..JPP200107-200406

53214ASUPPORT, RADIATOR, UPPER LH

main53214-33010iACV30,MCV3#..JPP200107-200406

53216ASUPPORT, RADIATOR, UPPER

main53216-33120iACV30,MCV3#..JPP200107-200406

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-33010iACV30,MCV3#..JPP200107-200406

RH

main53292-33120iACV30,MCV3#..JPP200107-200406

LH

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-33020iACV30,MCV3#..JPP200107-200406

53681BRACE, FRONT SUSPENSION, UPPER CENTER

main53681-33020iACV30,MCV3#..JPP..SE;MCV30..JPP..(LE,XLE)..5FC200107-200406

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-33130iACV30,MCV30..JPP200107-200307

sub53701-33131

sub89747-48020

main53701-33131iACV30,MCV3#..JPP200307-200406

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-33090iACV30,MCV3#..JPP200107-200406

53711BAPRON, FRONT FENDER, FRONT RH

main53711-33060iMCV30..JPP..5FC;ACV30,MCV31..JPP200107-200406

53712BAPRON, FRONT FENDER, FRONT LH

main53712-33030iACV30,MCV3#..JPP200107-200406

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-33010iACV30,MCV30..JPP200107-200307

sub53713-33011

sub89747-48020

main53713-33011iACV30,MCV3#..JPP200307-200406

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-33010iACV30,MCV3#..JPP200107-200406

53717PLATE, FENDER APRON, RH

main53717-33020iMCV30..JPP..5FC;ACV30,MCV31..JPP200107-200406

53718PLATE, FENDER APRON, LH

main53718-33010iACV30,MCV3#..JPP200107-200406

53728ABRACKET, FENDER APRON, RH

main53729-33020iMCV30..JPP..5FC;ACV30,MCV31..JPP200107-200406

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-33050iACV30,MCV3#..JPP200107-200505

main53731-33080iACV30,MCV3#..JPP200506

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-33040iACV30,MCV3#..JPP200107-200505

main53732-33070iACV30,MCV3#..JPP200506

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-33030iMCV30..JPP..5FC;ACV30,MCV31..JPP200107-200406

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-33030iACV30,MCV3#..JPP200107-200406

53736SEAL, FRONT FENDER APRON, RH

main53736-33030iACV30,MCV3#..JPP200107-200406

53737BSEAL, FRONT FENDER APRON, LH

main53737-28020iACV30,MCV30..JPP..(4FC,5F)200107-200406

main53737-33020iMCV3#..JPP200301-200406

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-33010iMCV30..JPP..5FC;ACV30,MCV31..JPP200107-200406

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-33010iACV30,MCV3#..JPP200107-200406

55101PANEL SUB-ASSY, DASH

main55101-33290iACV30..JPP..5F200107-200406

main55101-33320iACV30,MCV3#..JPP..ATM200107-200406

main55101-33340iACV30,MCV3#..JPP..5FC200208-200406

W(POWER ADJUSTABLE PEDAL)

55210INSULATOR ASSY, DASH PANEL

main55210-33090iACV30,MCV30..JPP200107-200301

sub55210-33130

main55210-33130iACV30,MCV3#..JPP200301-200406

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-33070iACV30,MCV30..JPP200107-200301

55223AINSULATOR, DASH PANEL, OUTER

main55223-33080iACV30,MCV3#..JPP..ATM200107-200406

main55223-33100iACV30..JPP..5F200111-200406

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-33010iACV30,MCV3#..JPP200107-200512

sub55239-33020

main55239-33020iACV30,MCV3#..JPP200601

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57161-33040iACV30,MCV3#..JPP200107-200406

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-33030iACV30,MCV3#..JPP200107-200406

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-33030iACV30,MCV3#..JPP200107-200406

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57165-33010iACV30,MCV3#..JPP200107-200406

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57166-33010iACV30,MCV3#..JPP200107-200406

5388230040PACKING, FRONT FENDER MAIN

main53882-30040

9008011427

main90080-11427

9008011544

main90080-11544

9010506137

main90105-06137

9010506279

main90105-06279

90109A0009

main90109-A0009

9011906680

main90119-06680

9046706197

main90467-06197

9046708180

main90467-08180

9046709215

main90467-09215

9054115004

main90541-15004

9056010108

main90560-10108

9090467044

main90904-67044

91621J0614

main91621-J0614

54 parts on this diagram · 2 diagrams in section
