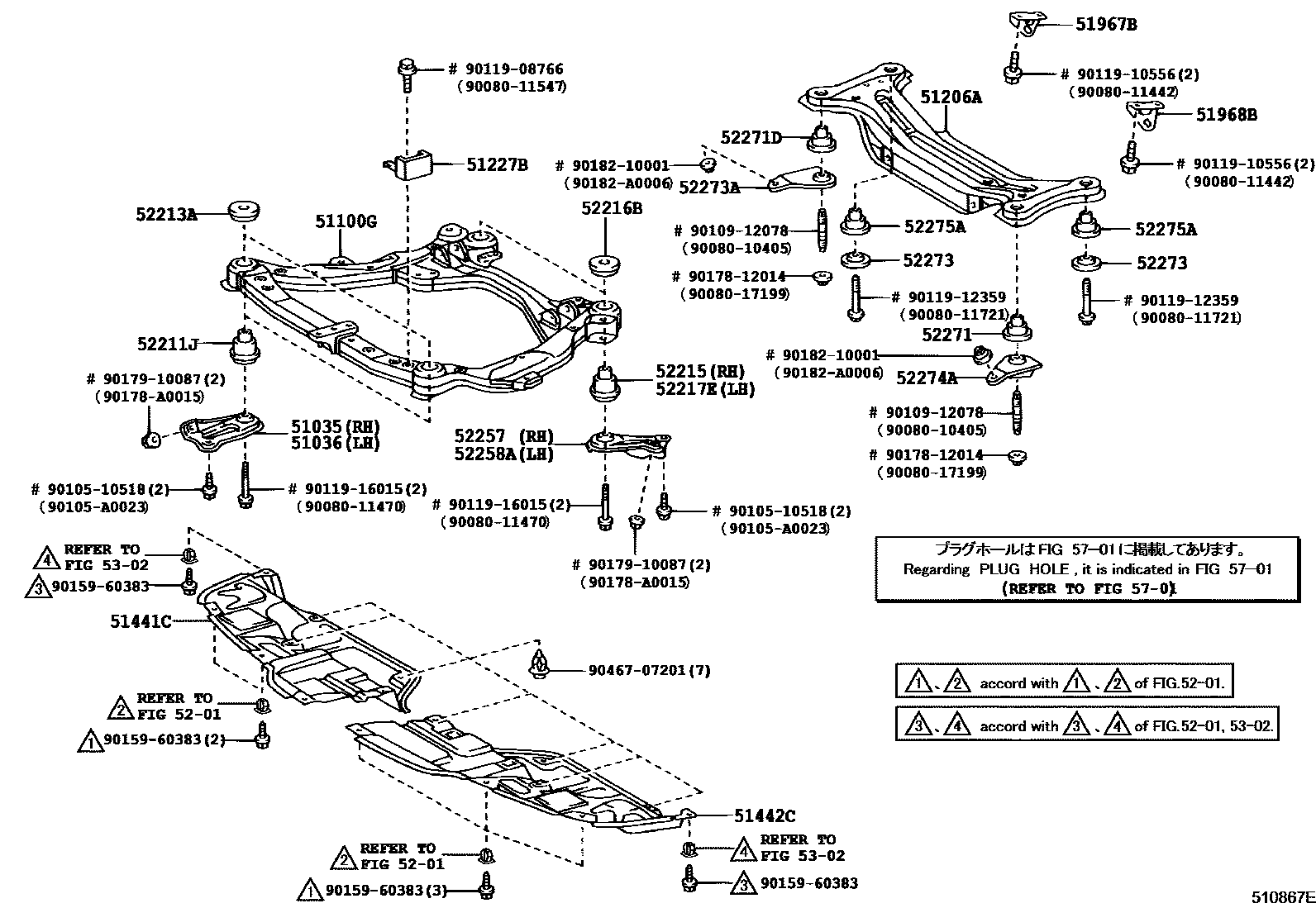

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-33010iACV30,MCV30..JPP200107-200208

sub51035-33011

main51035-33011iACV30,MCV3#..JPP200208-200406

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-33010iACV30,MCV30..JPP200107-200208

sub51036-33011

main51036-33011iACV30,MCV3#..JPP200208-200406

51100GFRAME ASSY, FRONT

main51100-28020iACV30..JPP..5F200107-200307

main51100-33070iACV30,MCV3#..JPP..ATM200107-200406

sub51100-33073

main51100-33090iACV30..JPP..5F200307-200406

sub51100-33091

sub90119-08D06

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33060iACV30,MCV30..JPP200107-200505

sub51206-33080

main51206-33061iACV30,MCV3#..JPP200506

sub51206-33100

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-33080iACV30,MCV30..JPP200107-200301

main51227-33101iACV30,MCV3#..JPP200301-200406

51441CCOVER, ENGINE UNDER, RH

main51441-33040iACV30,MCV3#..JPP200107-200406

51442CCOVER, ENGINE UNDER, LH

main51442-33030iACV30,MCV30..JPP200107-200406

51967BHOOK, TRANSPORT, REAR RH

main51967-33020iACV30,MCV3#..JPP200107-200406

51968BHOOK, TRANSPORT, REAR LH

main51968-33010iACV30,MCV30..JPP200107-200406

5201

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28010iACV30,MCV3#..JPP..5FC200107-200406

main52211-33070iACV30..JPP..5F200107-200406

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28010iACV30,MCV3#..JPP200107-200406

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iACV30,MCV3#..JPP..5FC200107-200406

main52215-33080iACV30..JPP..5F200107-200406

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010iACV30,MCV30..JPP200107-200406

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-28010iACV30,MCV30..JPP..4FC200107-200406

main52217-33010iACV30..JPP..5F200107-200406

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33040iACV30,MCV3#..JPP200107-200406

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33050iACV30,MCV3#..JPP200107-200406

52271CUSHION, REAR SUSPENSION MEMBER

main52272-33050iACV30,MCV30..JPP200107-200406

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-33050iACV30,MCV30..JPP200107-200406

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33010iACV30,MCV30..JPP200107-200406

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-33020iACV30,MCV30..JPP200107-200406

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-33020iACV30,MCV30..JPP200107-200406

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-33050iACV30,MCV30..JPP200107-200406

5302

5701

9008010405

main90080-10405

9008011442

main90080-11442

9008011470

main90080-11470

9008011547

main90080-11547

9008011721

main90080-11721

9008017199

main90080-17199

9010510518

main90105-10518

90105A0023

main90105-A0023

9010912078

main90109-12078

9011908766

main90119-08766

9011910556

main90119-10556

9011912359

main90119-12359

9011916015

main90119-16015

9015960383

main90159-60383

9017812014

main90178-12014

90178A0015

main90178-A0015

9017910087

main90179-10087

9018210001

main90182-10001

90182A0006

main90182-A0006

9046707201

main90467-07201

45 parts on this diagram · 2 diagrams in section
