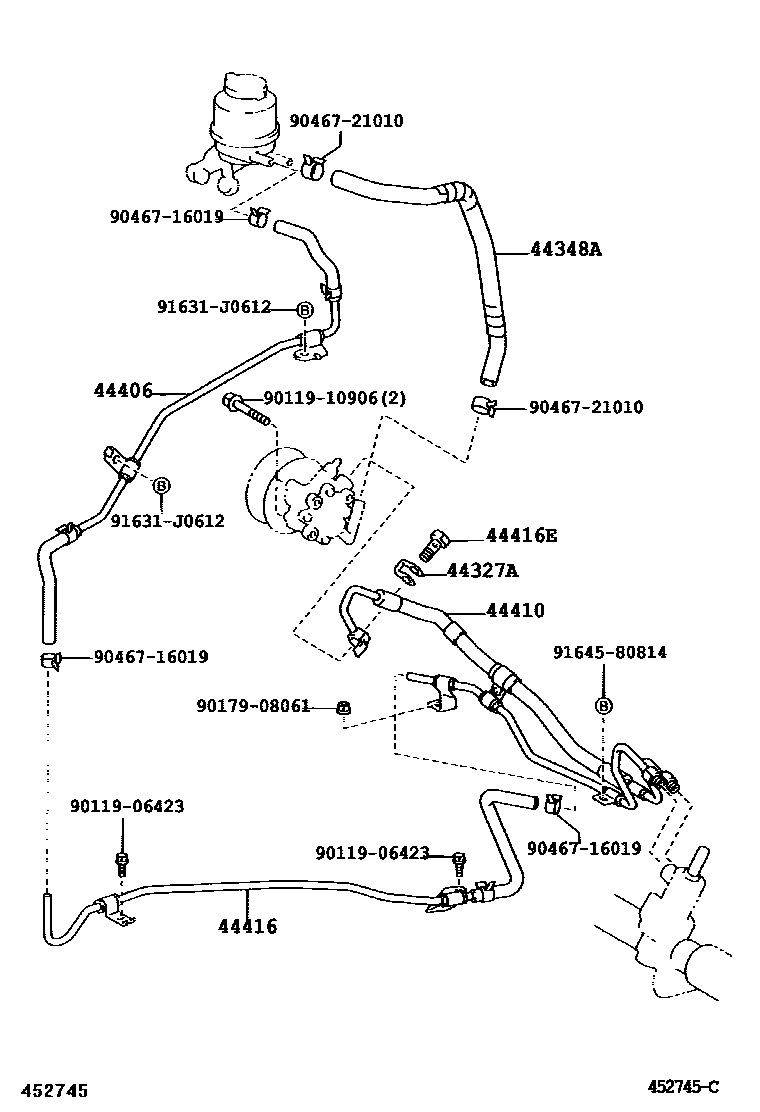

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACV30,MCV3#..JPP200107-200406

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33160iACV30..JPP200107-200406

main44348-33180iMCV3#..JPP200107-200406

44406TUBE SUB-ASSY, RETURN

main44406-33080iACV30,MCV30..JPP200107-200406

44410TUBE ASSY, PRESSURE FEED

main44410-33180iACV30..JPP200107-200406

sub44410-33181

main44410-33190iMCV30..JPP200107-200406

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-33140iACV30,MCV30..JPP200107-200406

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACV30..JPP200107-200406

9011906423

main90119-06423

9011910906

main90119-10906

9017908061

main90179-08061

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

9164580814

main91645-80814

13 parts on this diagram · 2 diagrams in section
